Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM ACTIVE TEST BY INTELLIGENT TESTER (FUEL GAUGE (A/D))

Connect the intelligent tester to the DLC3.
Turn the ignition switch ON and turn the tester ON.

Perform the ACTIVE TEST according to the prompts displayed on the tester.

Combination meter

COMBINATION METER TEST DETAILS

Item	Test Details	Diagnostic Note
FUEL GAUGE	EMPTY / 1/2 / FULL	Value selected during ACTIVE TEST is displayed

OK: Value selected during ACTIVE TEST is displayed.

NG: REPLACE COMBINATION METER ASSEMBLY

OK: Go TO NEXT STEP.

READ VALUE OF DATA LIST (FUEL GAUGE)

Connect the intelligent tester to the DLC3.
Turn the ignition switch ON and the tester ON.

Read the DATA LIST according to the prompts displayed on the tester.

Combination meter

COMBINATION METER TEST DETAILS

Item	Measurement Item / Range (Display)	Normal Condition	Diagnostic Note
FUEL GAUGE (A/D)	Fuel input signal / Min.: 0, Max.: 255	Fuel gauge indicates (F): 33 Fuel gauge indicates (3/4): 98 Fuel gauge indicates (1/2): 144 Fuel gauge indicates (1/4): 179 Fuel gauge indicates (E): 206	-

OK: Meter / gauge value and tester value are the same.

NG: REPLACE COMBINATION METER ASSEMBLY

OK: Go TO NEXT STEP.

INSPECT FUEL SENDER GAUGE ASSEMBLY

Remove the fuel sender gauge.

Measure the resistance of the gauge.

Fig 1: Inspecting Fuel Sender Gauge Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE

Tester Connection	Float Level	Specified Condition
1 - 2	F	15.0 +-1.5
1 - 2	1/2	212.5 +-12.2
1 - 2	E	410.0 +-4.5

NG: REPLACE FUEL SENDER GAUGE ASSEMBLY

OK: Go TO NEXT STEP.

CHECK WIRE HARNESS (COMBINATION METER - FUEL SENDER GAUGE ASSEMBLY)

Disconnect the E19 meter connector.
Disconnect the S2 gauge connector

Measure the resistance of the wire harness side connectors.

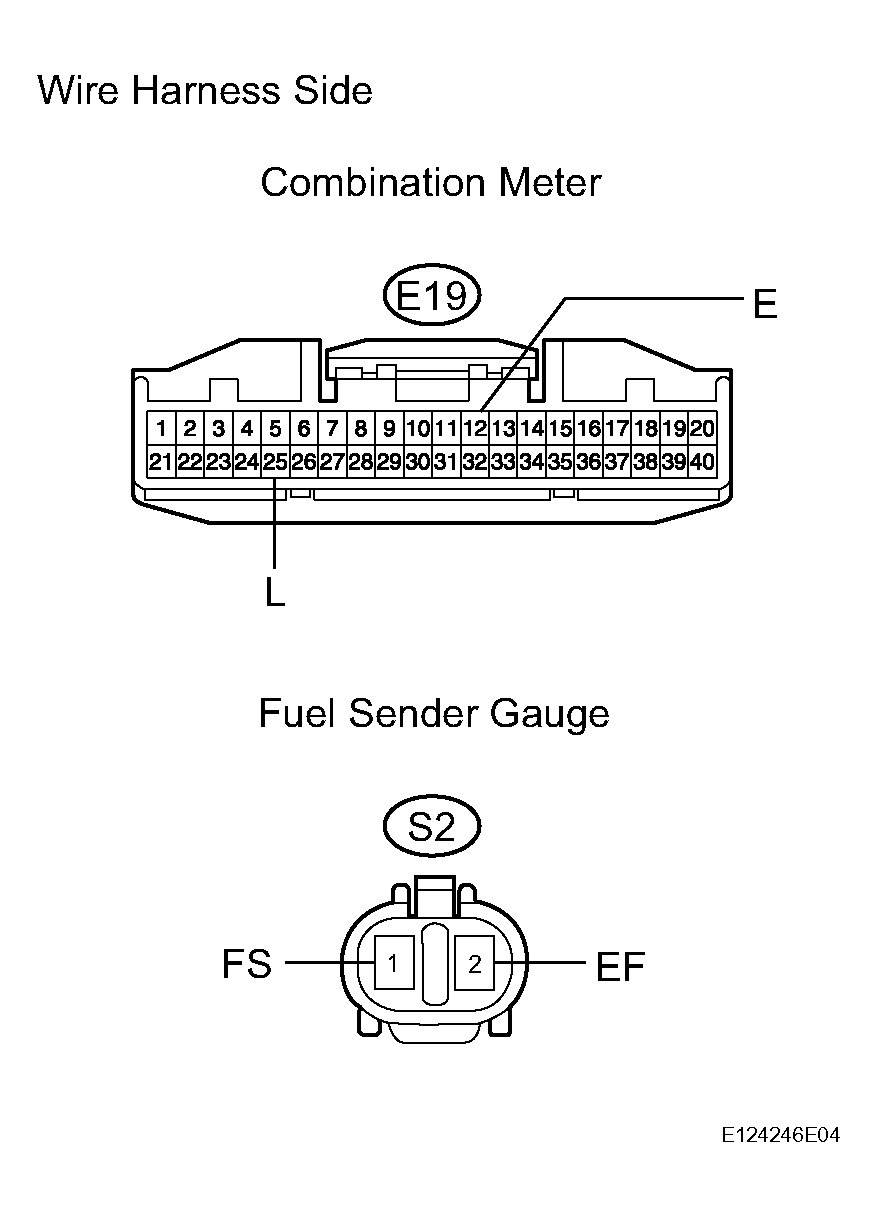

Fig 2: Identifying Combination Meter And Fuel Sender Gauge Harness Connector Terminals

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE

Tester Connection	Specified Condition
E19-25 (L) - S2-1 (FS)	Below 1
E19-12 (E) - S2-2 (EF)	Below 1
E19-25 (L) or S2-1 (FS) - Body ground	10 k or higher
E19-12 (E) or S2-2 (EF) - Body ground	10 k or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE COMBINATION METER ASSEMBLY
