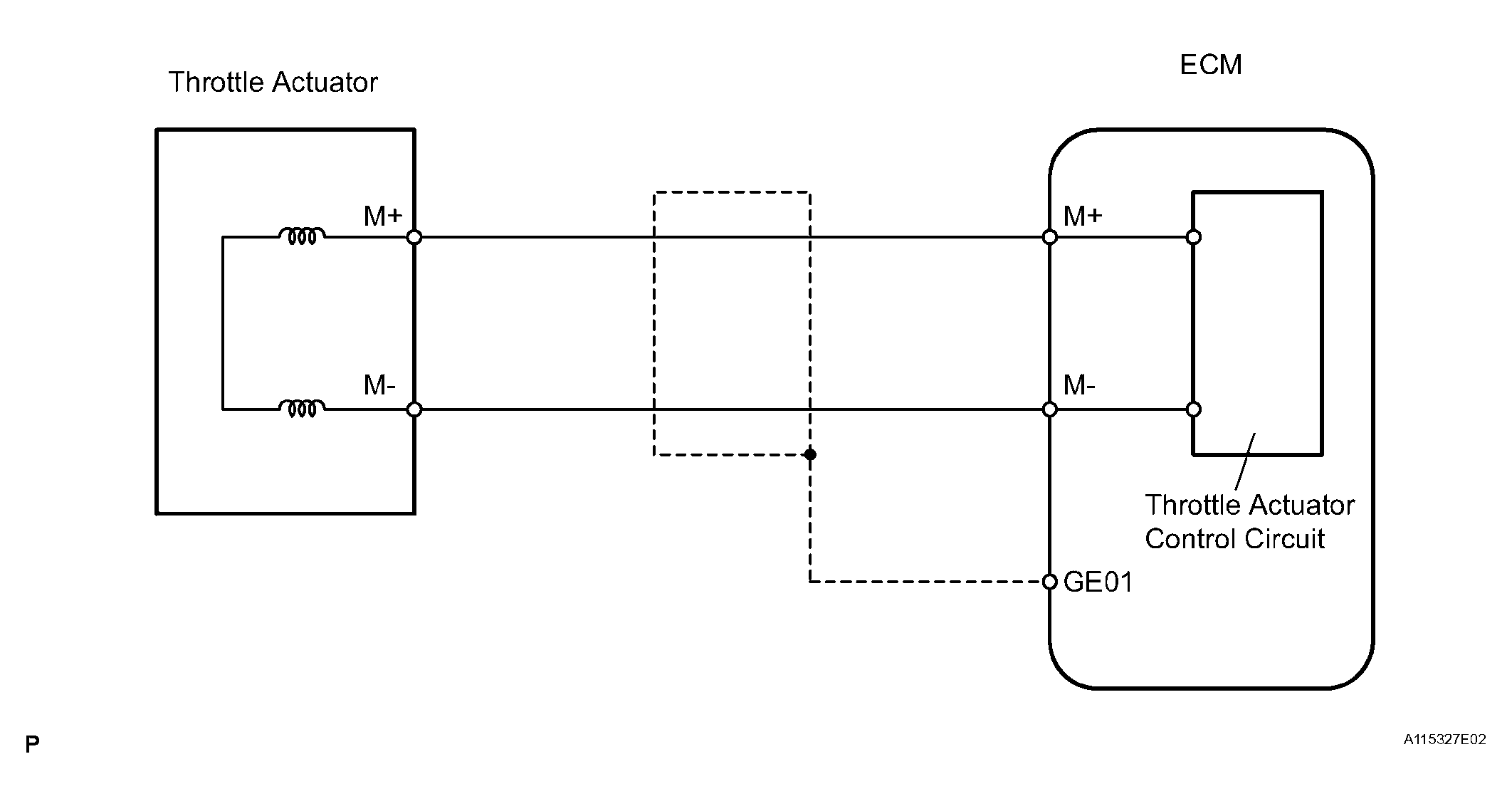

DTC P2102, P2103: Throttle Actuator Control Motor Circuit Low; Throttle Actuator Control Motor Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
