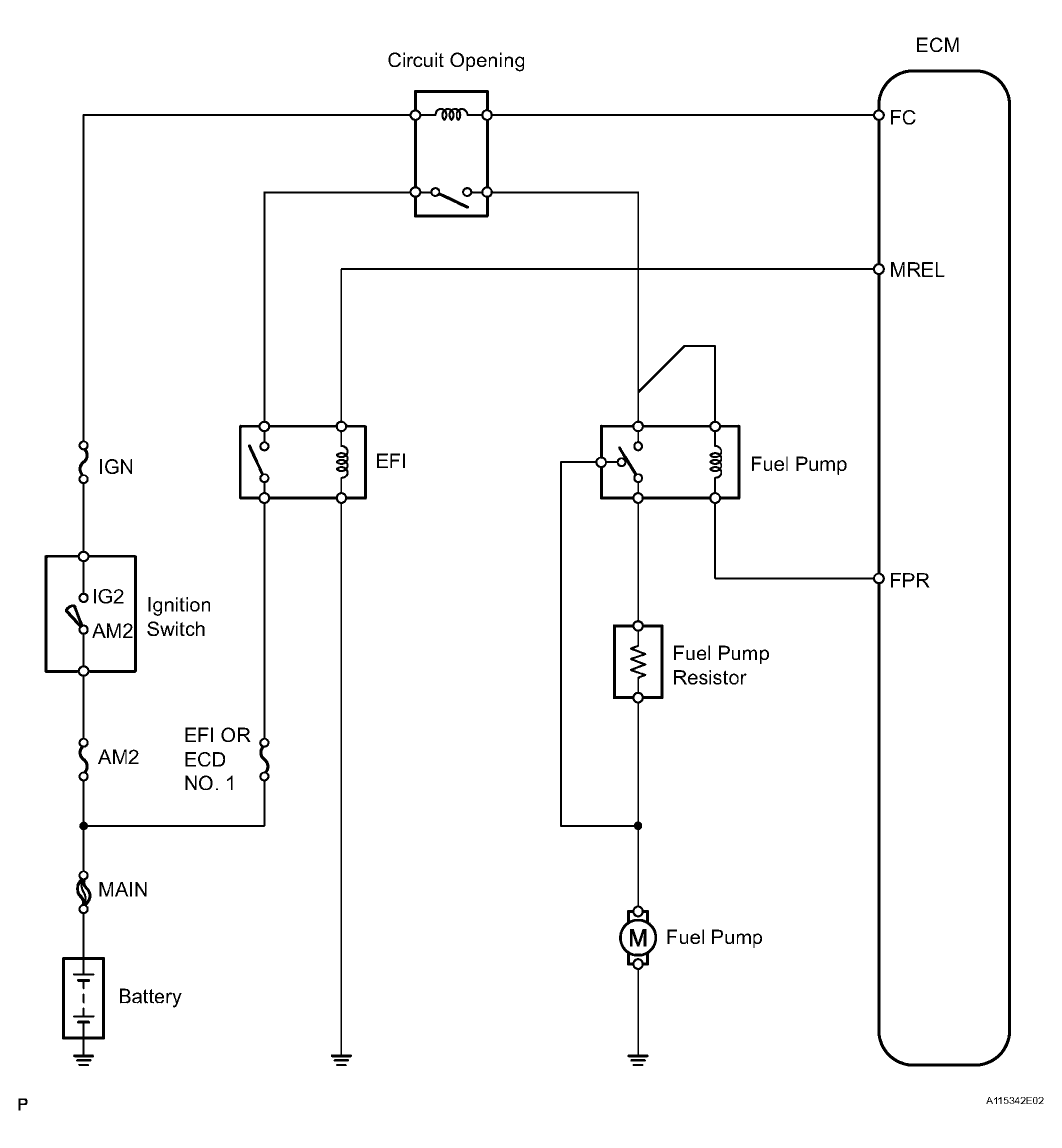

DTC P0230: Fuel Pump Primary Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
This troubleshooting procedure is based on the premise that the engine is started. If the engine is not started, proceed to PROBLEM SYMPTOMS TABLE .
