Inspection Procedure

HINT:

• If DTC P0010 is displayed, check the bank 1 OCV.
• If DTC P0020 is displayed, check the bank 2 OCV.
• Bank 1 includes No. 1 cylinder, but bank 2 does not. No. 1 cylinder is located in the front part of the engine, opposite the transmission.
• Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (OCV OPERATION)
   1. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
   2. Start the engine and warm it up.
   3. Turn the ignition switch ON and turn the tester ON.
   4. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / VVT CTRL B1 or VVT CTRL B2.
   5. Operate the Oil Control Valve (OCV) and check the engine condition at idling.

      OK

      ACTIVE TEST BY INTELLIGENT TESTER (OCV OPERATION)



      Tester Operation	Specified Condition
      OCV is OFF	Normal engine speed
      OCV is ON	Engine idles roughly or stalls (soon after OCV switched from OFF to ON)

   OK: CHECK FOR INTERMITTENT PROBLEMS

   NG: GO TO NEXT STEP

2. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (OPERATION)
   1. Disconnect the C32 or C33 OCV connector.
   2. Apply battery voltage to the terminals of the OCV.
   3. Check the engine speed.

      OK: Rough idle or engine stalled.

      Fig 1: Inspecting Camshaft Timing Oil Control Valve Assembly (Operation)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

   OK: GO TO NEXT STEP

3. CHECK ECM (OCV SIGNAL)
   1. Inspect the ECM using an oscilloscope.
   2. While idling the engine, check the waveform of the ECM connector using an oscilloscope.

      Standard voltage

      ECM (OCV SIGNAL)



      Tester Connection	Specified Condition
      E7-17 (OC1+) - E7-16 (OC1-)	Correct waveform is as shown
      E7-15 (OC2+) - E7-14 (OC2-)	Correct waveform is as shown

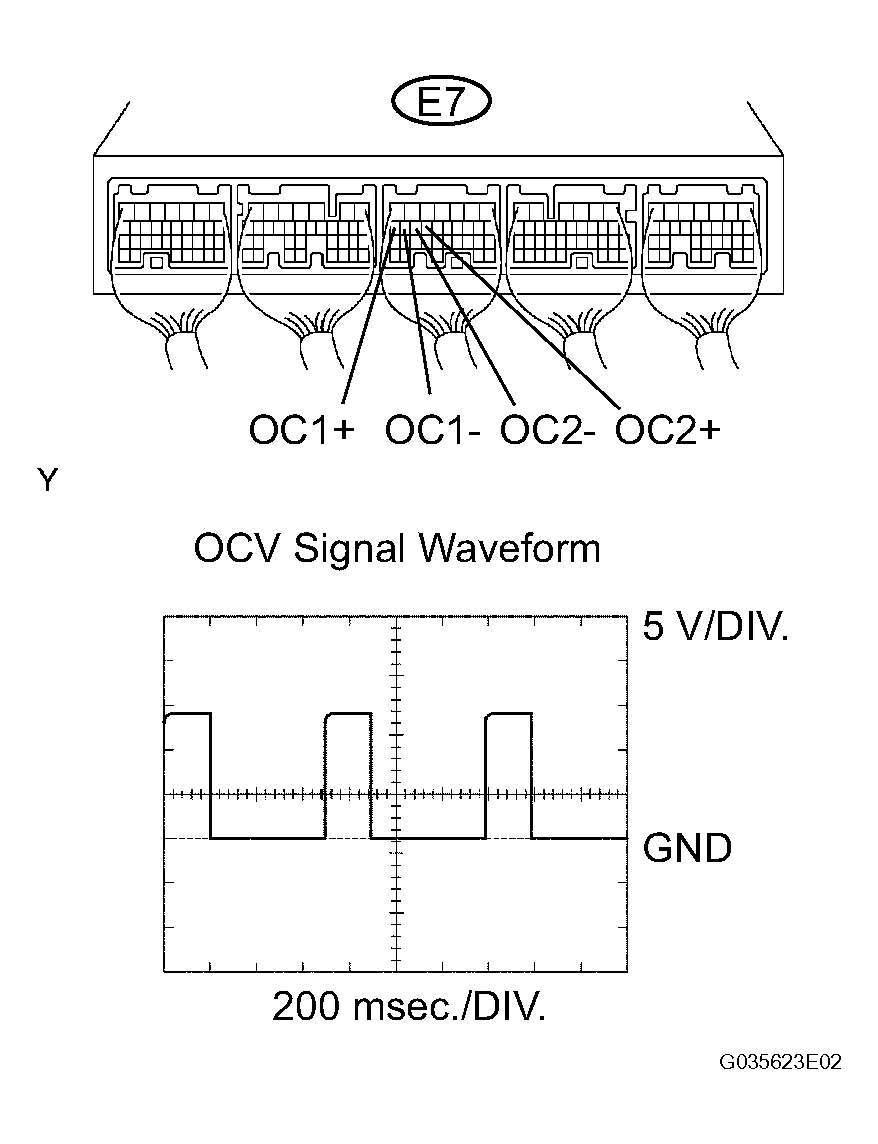

      Fig 2: Checking ECM (OCV Signal)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE ECM

   OK: GO TO NEXT STEP

4. CHECK HARNESS AND CONNECTOR (OCV - ECM)
   1. Check harness and connector (see ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: CHECK FOR INTERMITTENT PROBLEMS
