Monitor Description

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

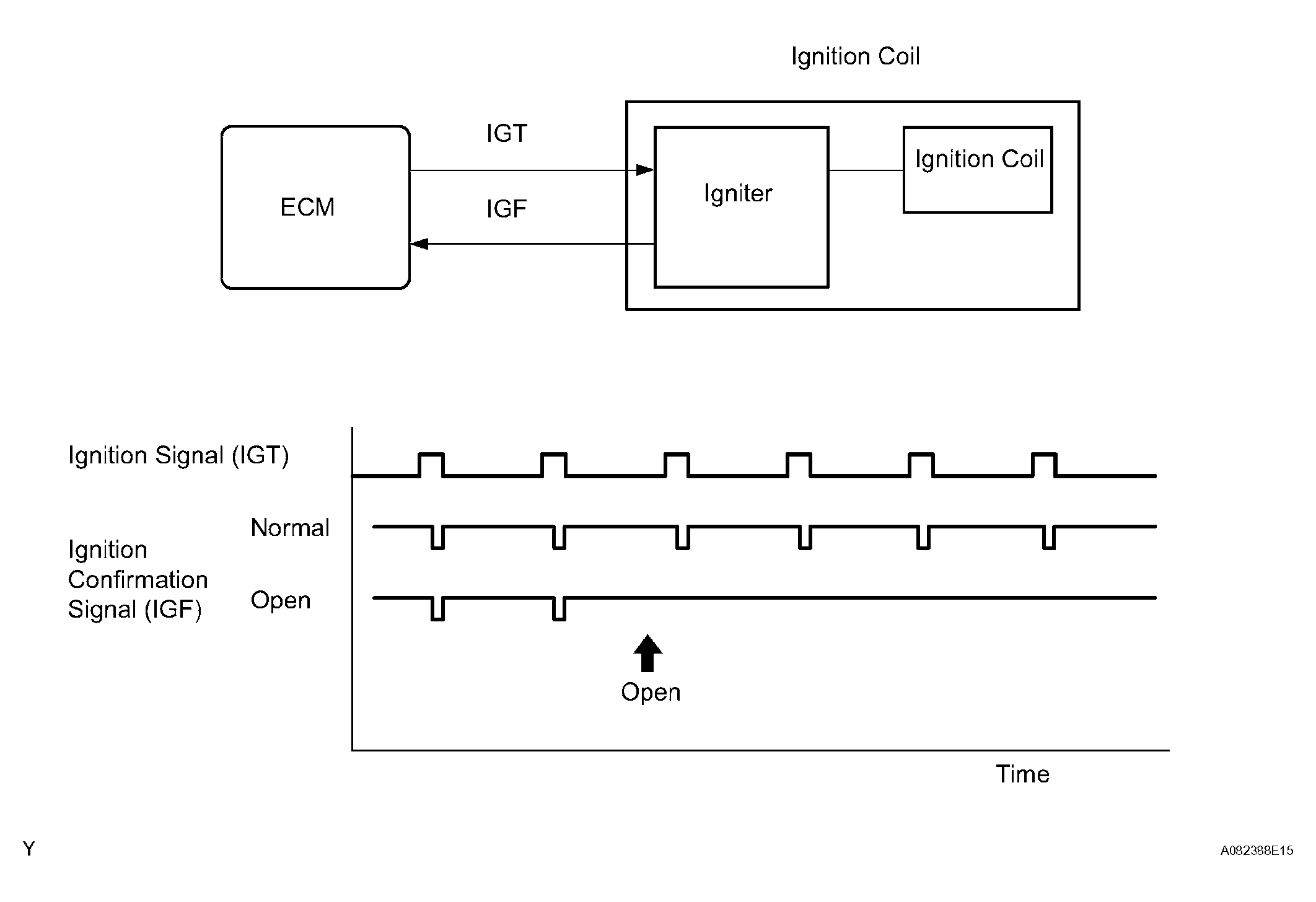

Fig 1: Ignition Coil Primary/Secondary Circuit Monitor Description
G04435180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the ECM does not receive an IGF after sending an IGT, it interprets this as a fault in the igniter and sets a DTC. The monitor runs for 1 second (the first second of engine idle) after the engine is started.
