Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  1. CHECK SPARK PLUG AND SPARK OF MISFIRING CYLINDER

    NG: Go to step   4

    OK: GO TO NEXT STEP

  2. CHECK HARNESS AND CONNECTOR (IGNITION COIL - ECM [IGF SIGNAL TERMINAL])
    1. Check harness and connector (see ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  3. INSPECT ECM (IGF1 AND IGF2 VOLTAGE)
    1. Disconnect the ignition coil connector.
    2. Turn the ignition switch ON.
    3. Measure the voltage of the E5 and E7 ECM connector.

      Standard voltage

      ECM (IGF1 AND IGF2 VOLTAGE)

      Tester Connection Specified Condition
      E5-24 (IGF1) - E7-1 (E1) 4.5 to 5.5 V
      E5-25 (IGF2) - E7-1 (E1) 4.5 to 5.5 V

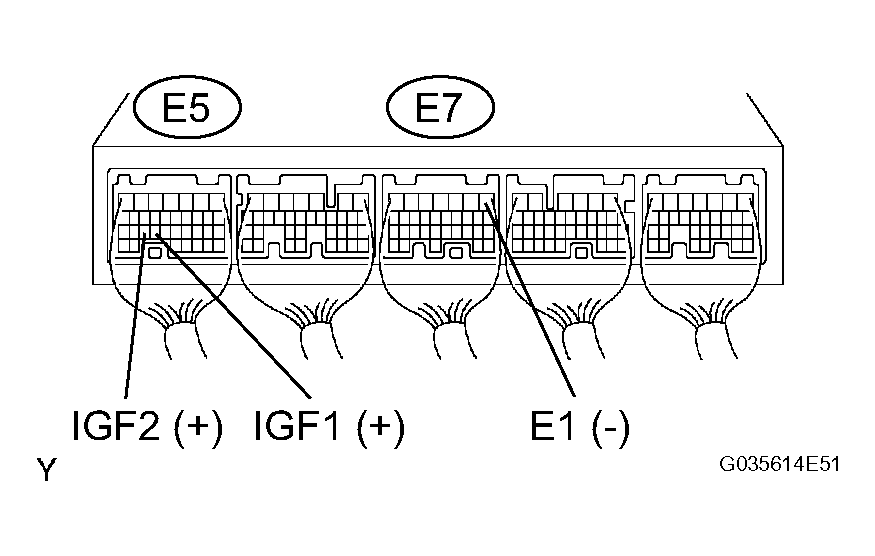

      Fig 1: Inspecting ECM (IGF1 & IGF2 Voltage)
      G04435183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the ignition coil connector.

    NG: REPLACE ECM

    OK: REPLACE IGNITION COIL

  4. CHECK HARNESS AND CONNECTOR (IGNITION COIL - ECM [IGT SIGNAL TERMINAL])
    1. Check harness and connector (see ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  5. INSPECT ECM (IGT1, IGT2, IGT3, IGT4, IGT5, IGT6, IGT7 OR IGT8 VOLTAGE)
    1. Measure the voltage of the E5 and E7 ECM connectors when the engine is cranked.

      Standard voltage

      ECM (IGT1, IGT2, IGT3, IGT4, IGT5, IGT6, IGT7 OR IGT8 VOLTAGE)

      Tester Connection Specified Condition
      E5-8 (IGT1) - E7-1 (E1) 0.1 to 4.5 V
      E5-15 (IGT2) - E7-1 (E1) 0.1 to 4.5 V
      E5-11 (IGT3) - E7-1 (E1) 0.1 to 4.5 V
      E5-10 (IGT4) - E7-1 (E1) 0.1 to 4.5 V
      E5-13 (IGT5) - E7-1 (E1) 0.1 to 4.5 V
      E5-12 (IGT6) - E7-1 (E1) 0.1 to 4.5 V
      E5-14 (IGT7) - E7-1 (E1) 0.1 to 4.5 V
      E5-9 (IGT8) - E7-1 (E1) 0.1 to 4.5 V

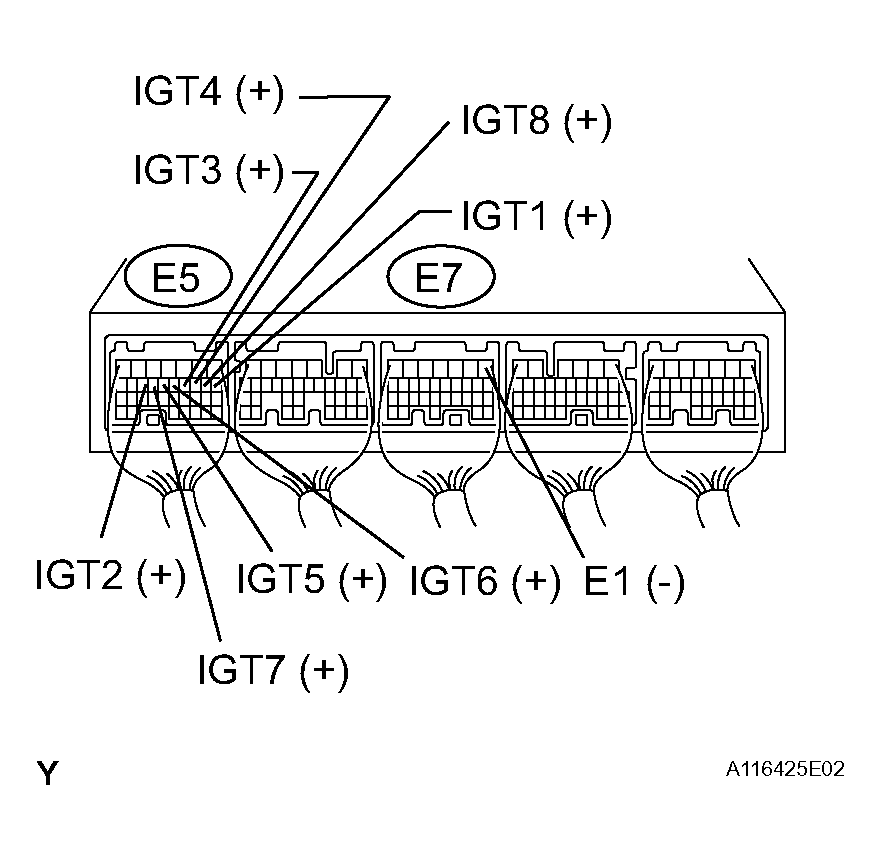

      Fig 2: Inspecting ECM (IGT1, IGT2, IGT3, IGT4, IGT5, IGT6, IGT7 OR IGT8 Voltage)
      G04435184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE ECM

    OK: GO TO NEXT STEP

  6. INSPECT ECM (IGT1, IGT2, IGT3, IGT4, IGT5, IGT6, IGT7 OR IGT8 VOLTAGE)
    1. Disconnect the I1, I2, I3, I4, I5, I6, I7 or I8 ignition coil connector.
    2. Measure the voltage of the E5 and E7 ECM connectors when the engine is cranked.

      Standard voltage

      ECM (IGT1, IGT2, IGT3, IGT4, IGT5, IGT6, IGT7 OR IGT8 VOLTAGE)

      Tester Connection Specified Condition
      E5-8 (IGT1) - E7-1 (E1) 4.5 V or more
      E5-15 (IGT2) - E7-1 (E1) 4.5 V or more
      E5-11 (IGT3) - E7-1 (E1) 4.5 V or more
      E5-10 (IGT4) - E7-1 (E1) 4.5 V or more
      E5-13 (IGT5) - E7-1 (E1) 4.5 V or more
      E5-12 (IGT6) - E7-1 (E1) 4.5 V or more
      E5-14 (IGT7) - E7-1 (E1) 4.5 V or more
      E5-9 (IGT8) - E7-1 (E1) 4.5 V or more
      Fig 3: Inspecting ECM (IGT1, IGT2, IGT3, IGT4, IGT5, IGT6, IGT7 OR IGT8 Voltage)
      G04435185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reconnect the ignition coil connector.

    NG: REPLACE ECM

    OK: GO TO NEXT STEP

  7. INSPECT IGNITION COIL (POWER SOURCE)
    1. Disconnect the I1, I2, I3, I4, I5, I6, I7 and I8 ignition coil connector.
    2. Turn the ignition switch ON or START.
    3. Measure the voltage of the wire harness side connector and body ground.

      Standard voltage

      IGNITION COIL (POWER SOURCE)

      Tester Connection Specified Condition
      I1-1 (+B) - Body ground 9 to 14 V
      I2-1 (+B) - Body ground 9 to 14 V
      I3-1 (+B) - Body ground 9 to 14 V
      I4-1 (+B) - Body ground 9 to 14 V
      I5-1 (+B) - Body ground 9 to 14 V
      I6-1 (+B) - Body ground 9 to 14 V
      I7-1 (+B) - Body ground 9 to 14 V
      I8-1 (+B) - Body ground 9 to 14 V

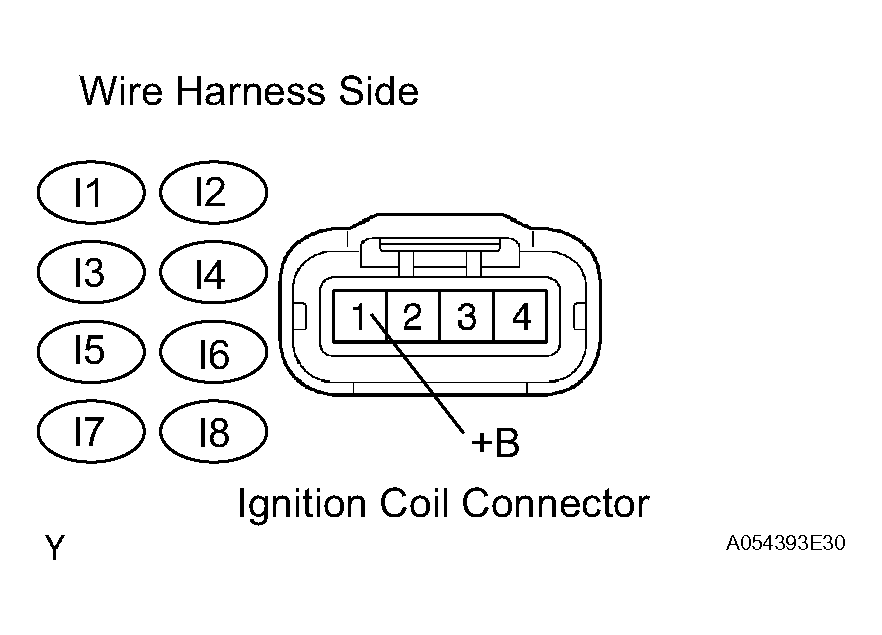

      Fig 4: Inspecting Ignition Coil (Power Source)
      G04435186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the ignition coil connector.

    OK: REPLACE IGNITION COIL

    NG: GO TO NEXT STEP

  8. CHECK HARNESS AND CONNECTOR (IGNITION COIL - IGNITION SWITCH)
    1. Check harness and connector (see ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

    NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE IGNITION COIL
