Short to GND in CAN Bus Line (2005/11-2006/01): Wiring Diagram
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

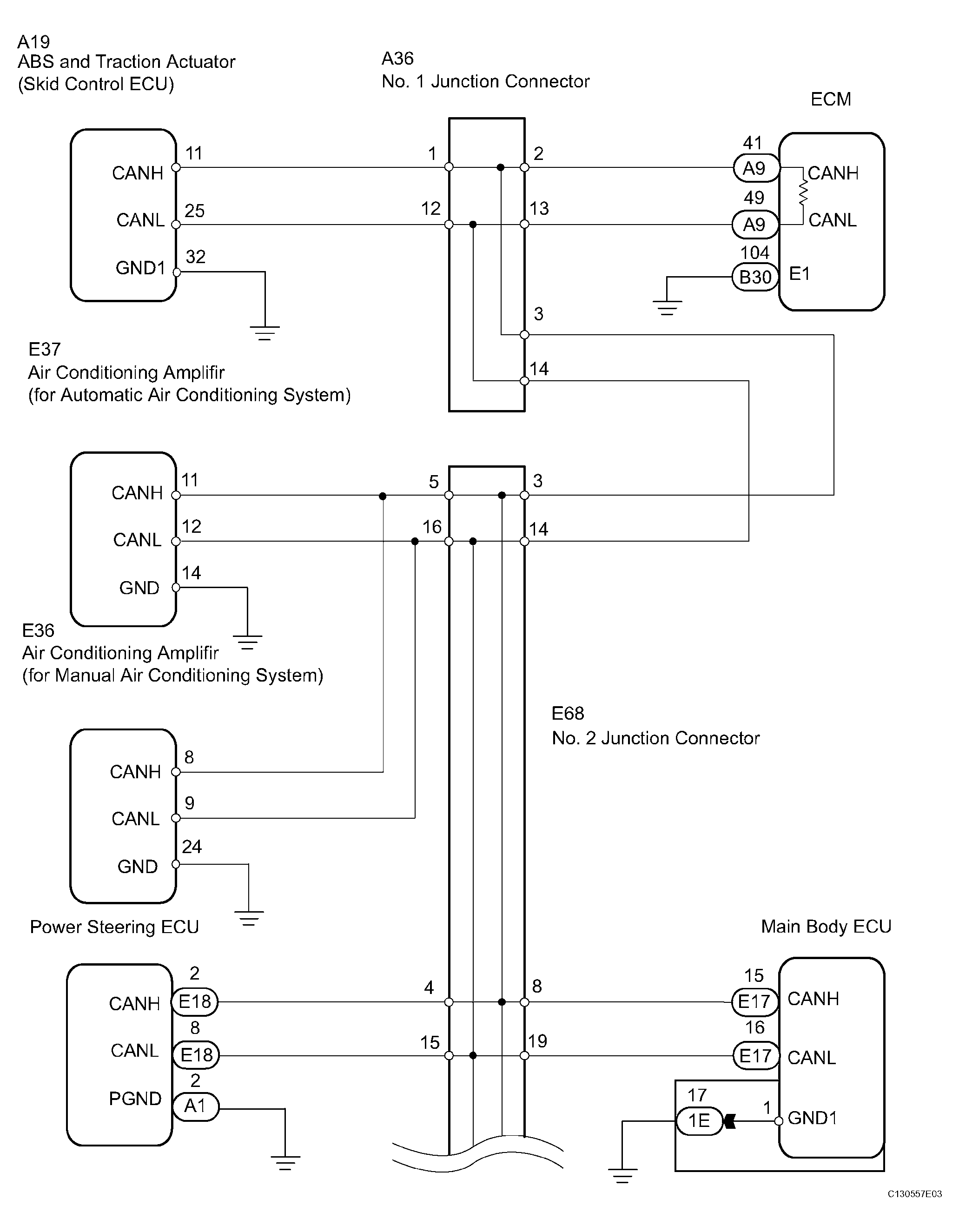

Fig 1: Short To GND In CAN Bus Line - Wiring Diagram (1 Of 2)
