Short in CAN Bus Lines: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

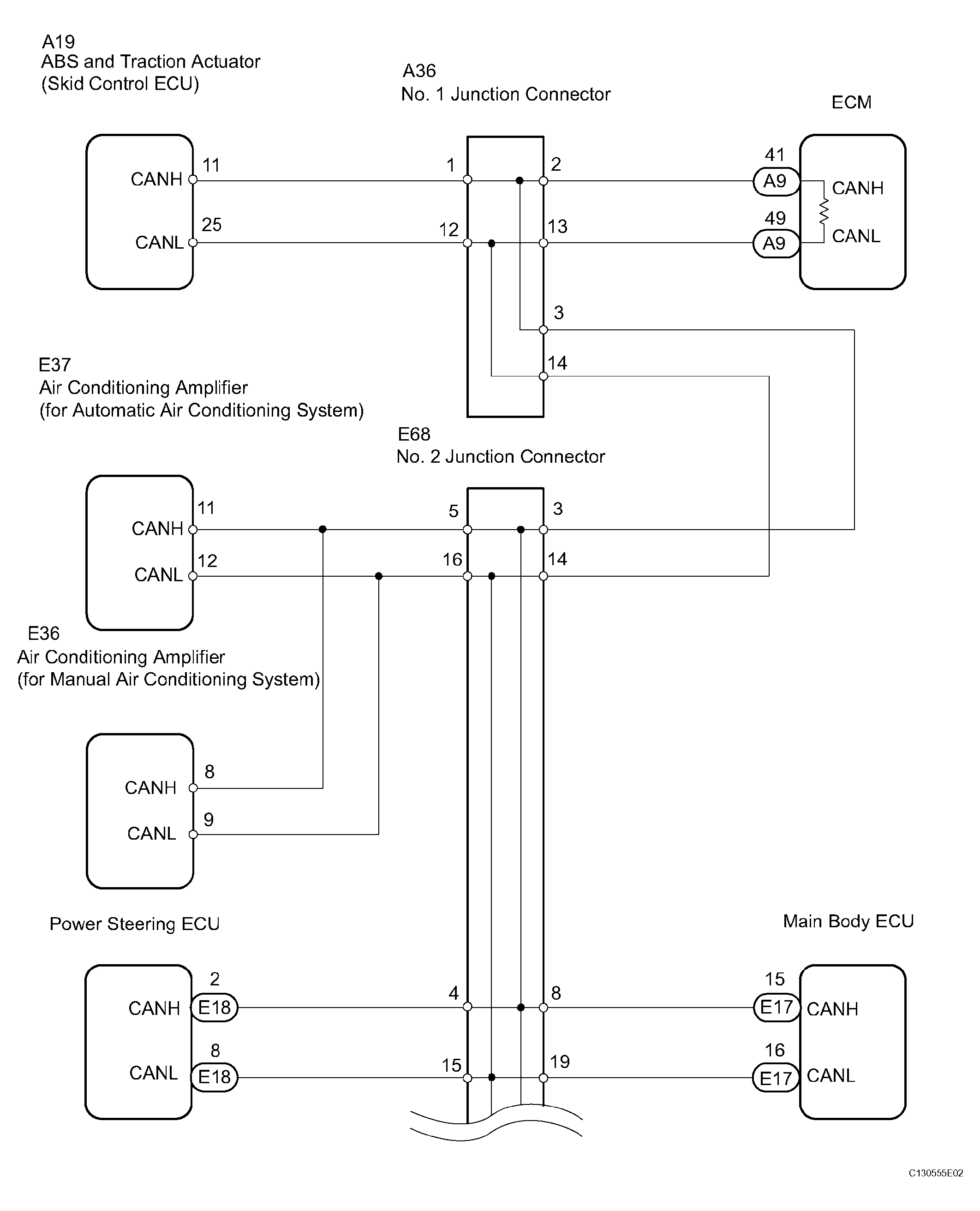

Fig 1: Short In CAN Bus Lines - Wiring Diagram (1 Of 2)
G04492716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

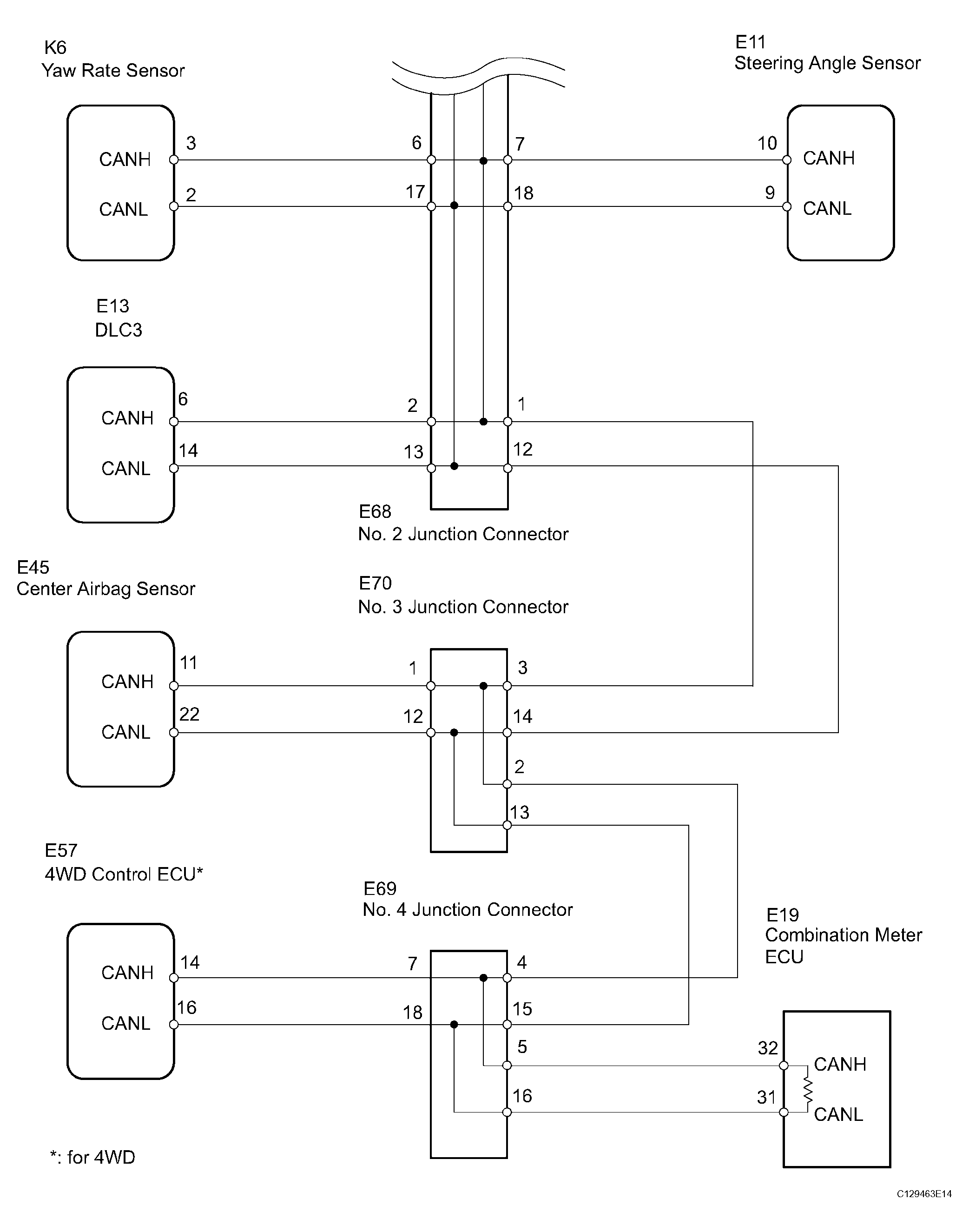

Fig 2: Short In CAN Bus Lines - Wiring Diagram (2 Of 2)
G04492717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
