Parts Location

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

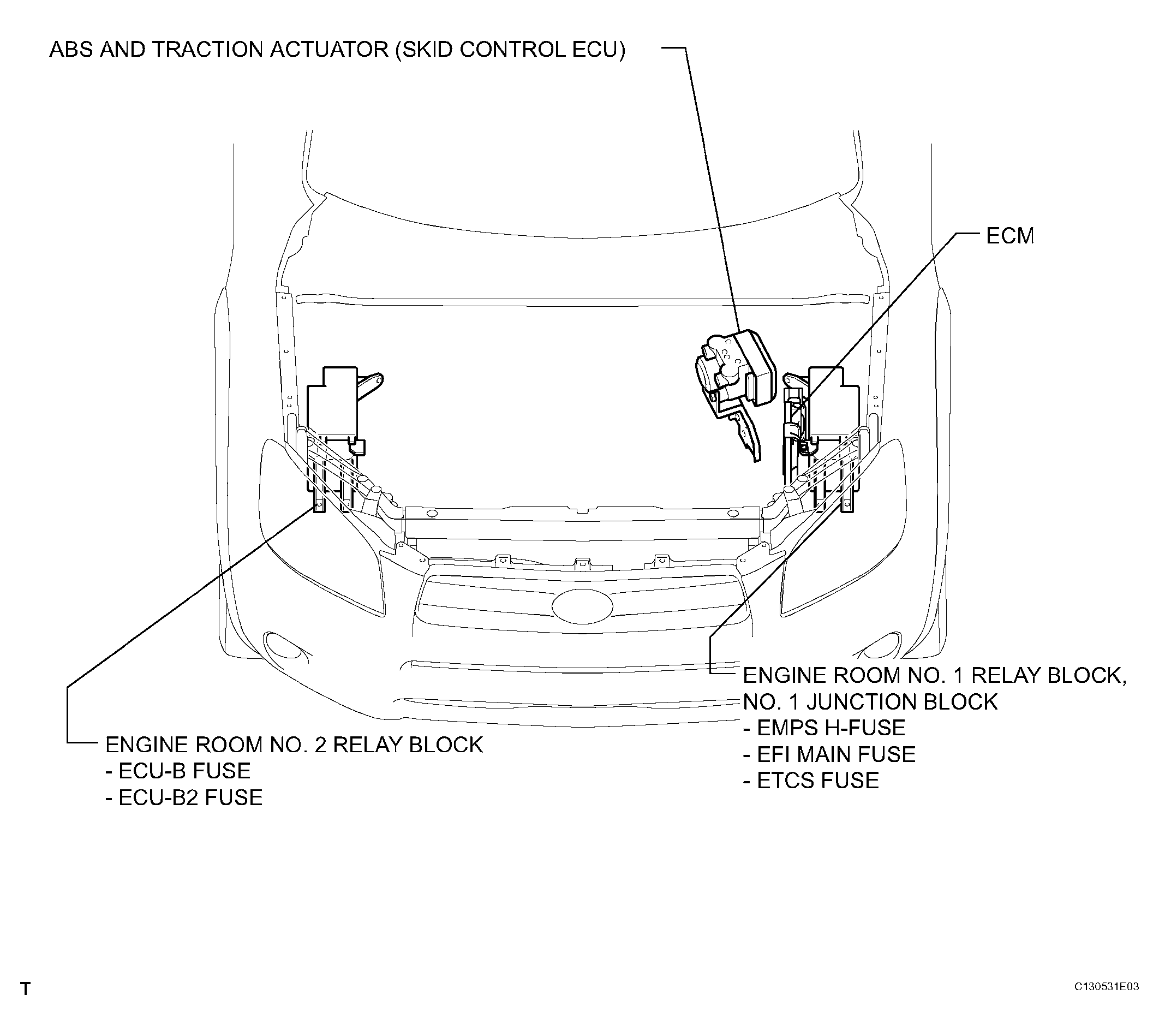

Fig 1: Identifying Can Communication System Parts Location (1 Of 2)
G04492626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

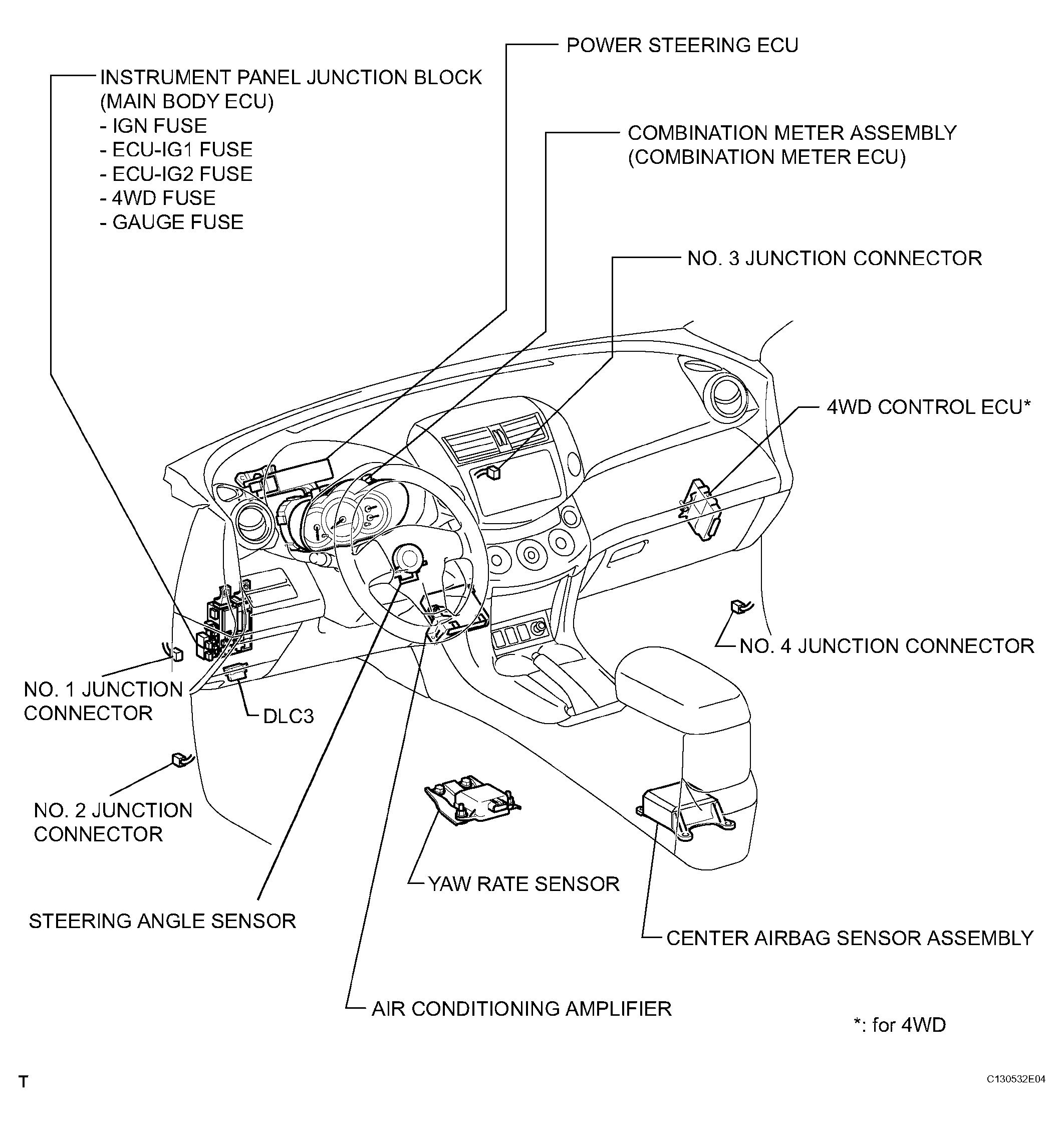

Fig 2: Identifying Can Communication System Parts Location (2 Of 2)
G04492627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
