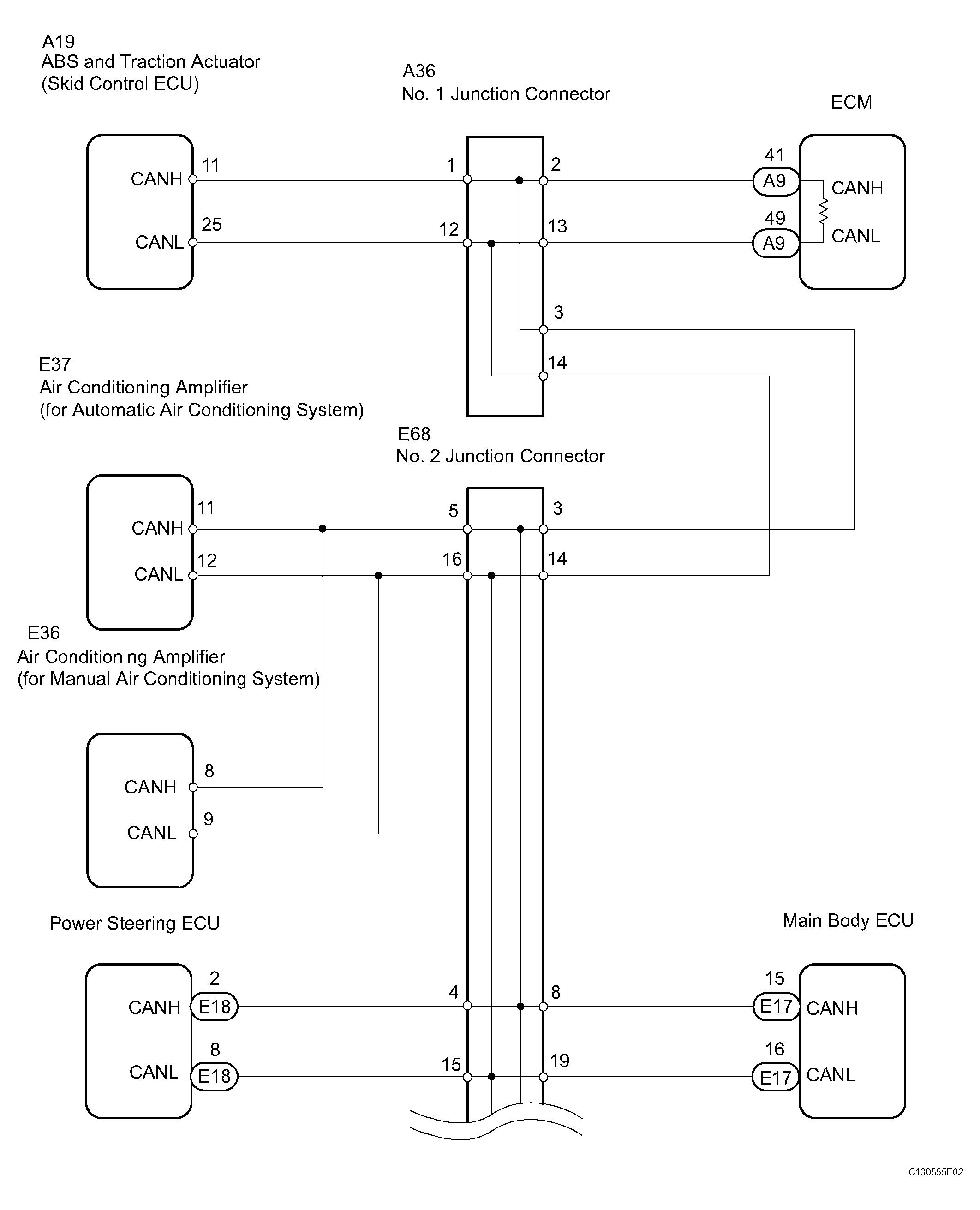

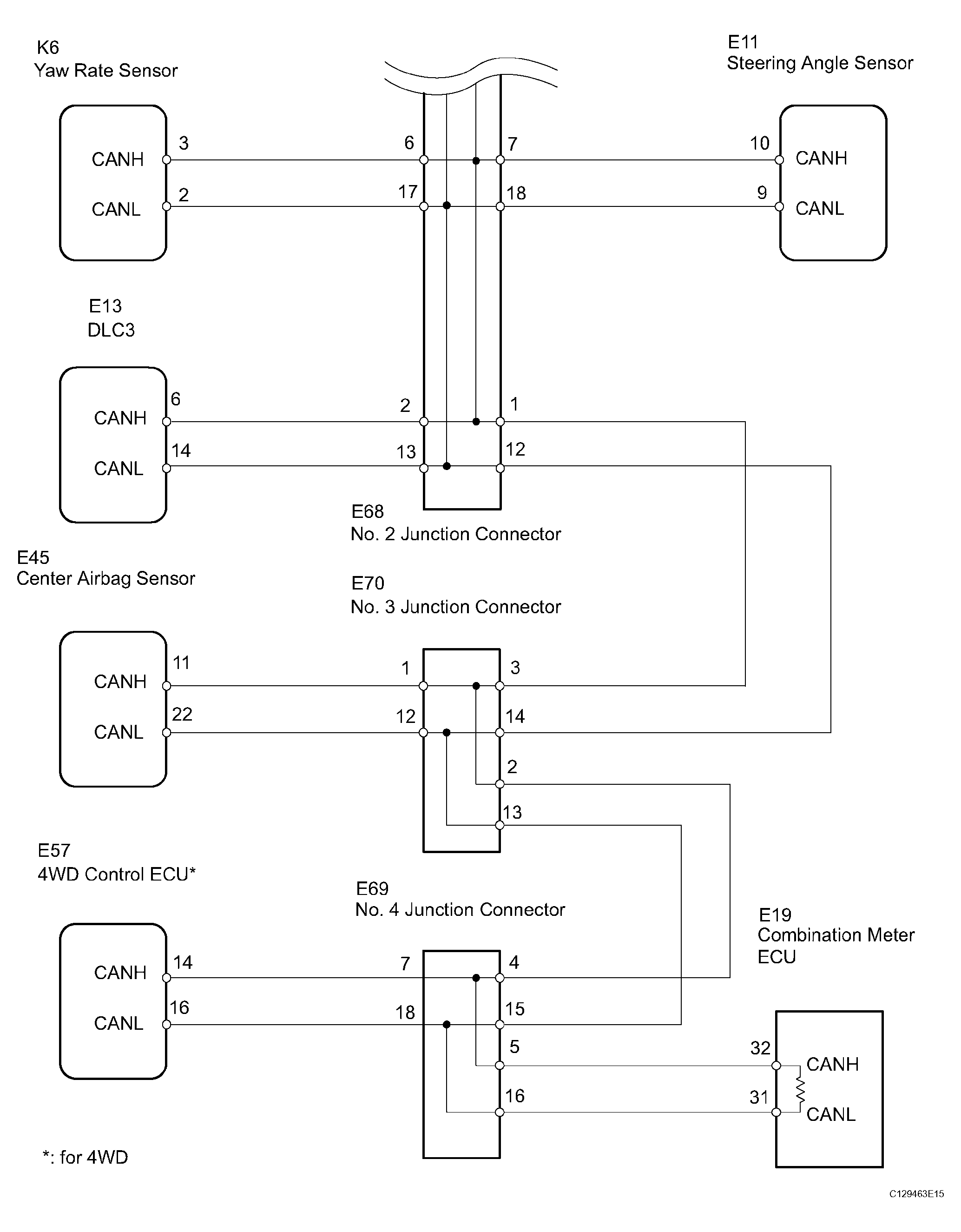

Open in One Side of CAN Branch Line: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
