Rear Brake Pad, Brake Caliper & Brake Rotor: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

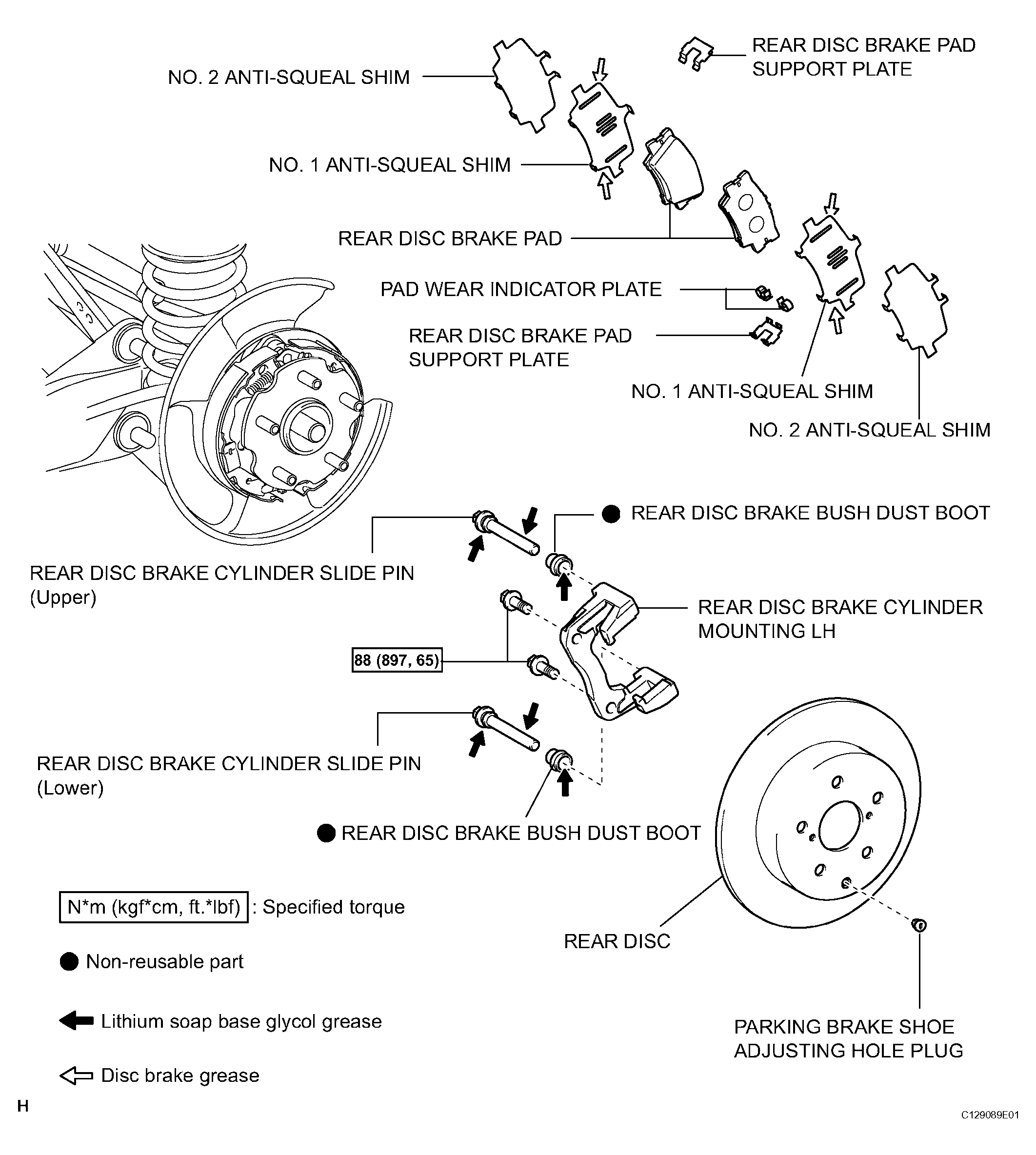

Fig 1: Rear Brake Replacement Components With Torque Specifications (1 Of 2)
G04489621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

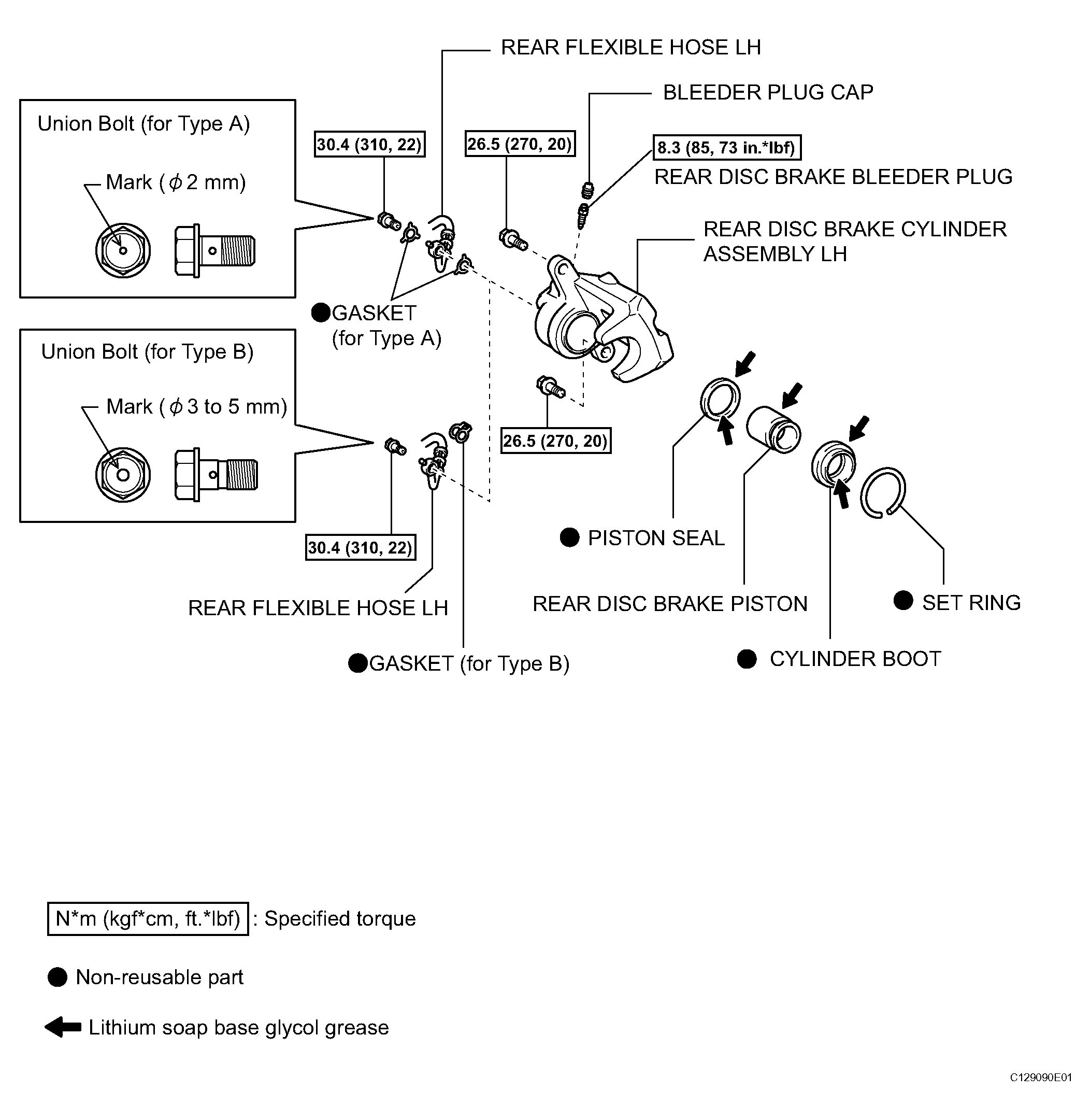

Fig 2: Rear Brake Replacement Components With Torque Specifications (2 Of 2)
G04489622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
