Front Brake Flexible Hose: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
   NOTE: Wash off brake fluid immediately if it comes in contact with any painted surface.
3. REMOVE FRONT FLEXIBLE HOSE
   1. Disconnect the brake tube (labeled A) from the flexible hose with SST while holding the flexible hose with a wrench.

      SST 09023-00101

      NOTE:

      • Do not bend or damage the brake tube.
      • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting point.

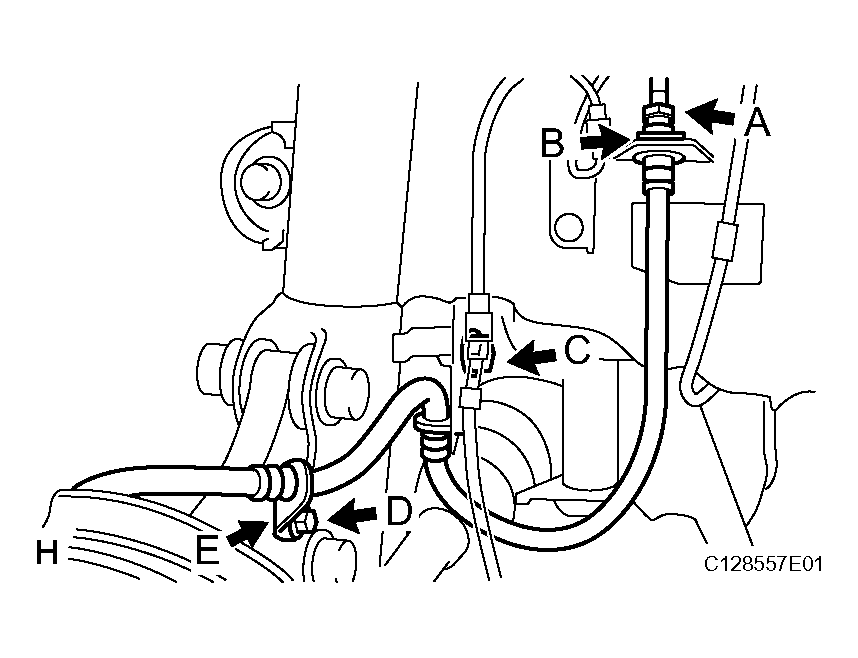

        Fig 1: Disconnecting Brake Tube (Labeled A) From Flexible Hose With SST

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the clip (labeled B).
   3. Remove the 2 bolts (labeled C, D) and then remove the flexible hose clamp (labeled E) from the knuckle.
   4. Remove the sensor clamp and flexible hose clamp from the flexible hose bracket.

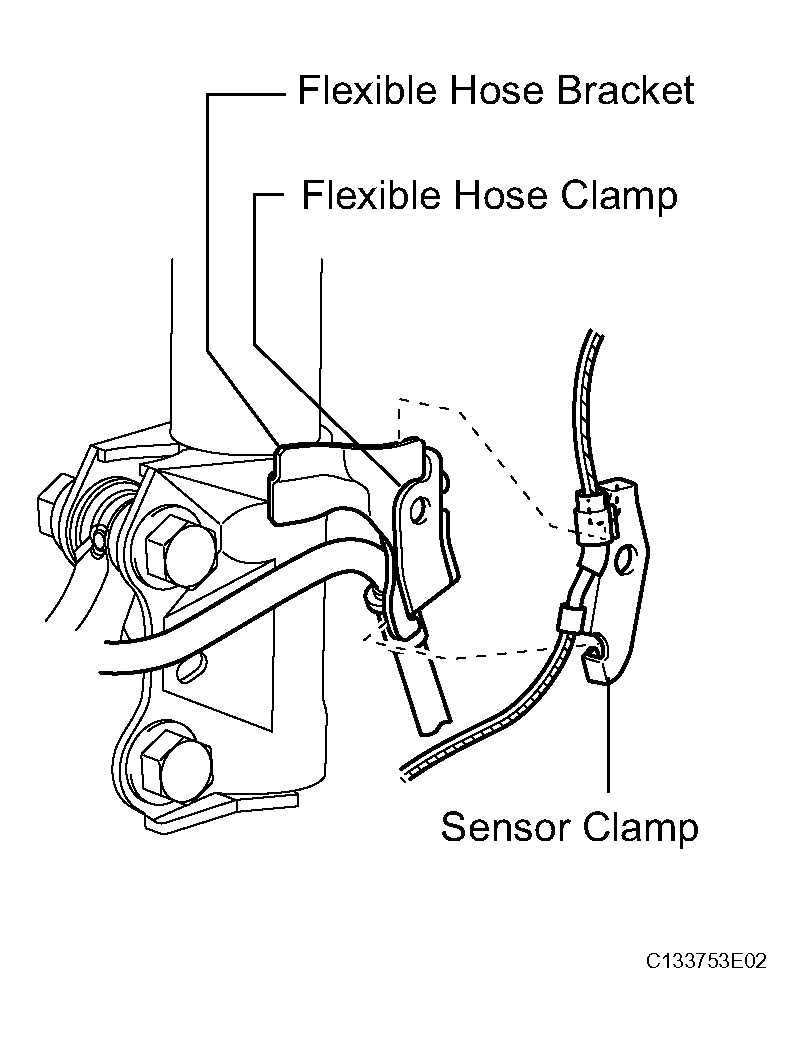

      Fig 2: Removing Sensor Clamp And Flexible Hose Clamp From Flexible Hose Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the union bolt and gasket(s), and then remove the flexible hose from the disc brake cylinder.

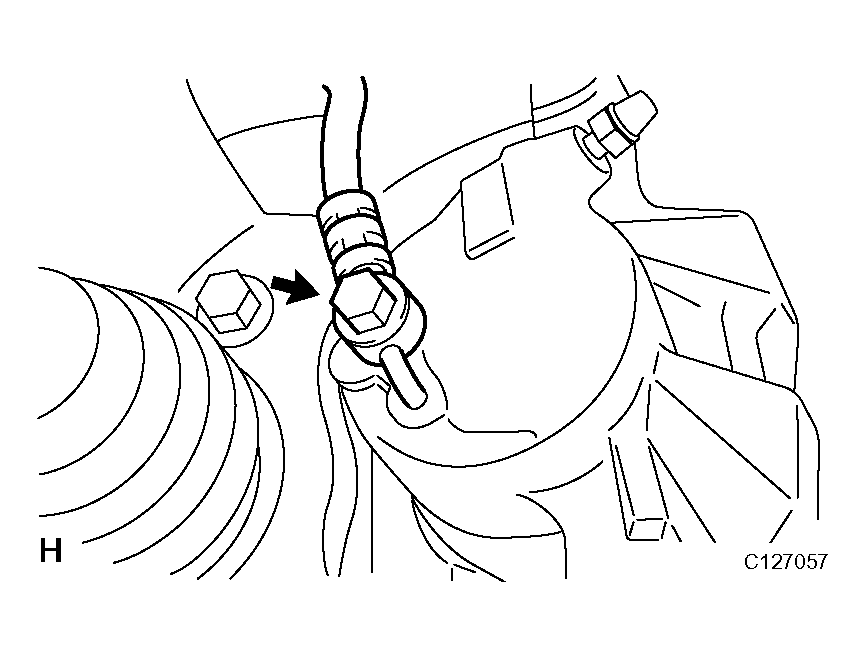

      Fig 3: Removing Flexible Hose From Disc Brake Cylinder

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
