Brake Pedal: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
    1. Remove the instrument panel (see REMOVAL ).
  3. DISCONNECT CONNECTORS
    1. Disconnect the stop light switch connector.
    2. w/ 296 diameter disc brake:

      Disconnect the brake pedal load sensing switch connector.

  4. REMOVE STOP LIGHT SWITCH ASSEMBLY
    1. Turn the switch counterclockwise and remove it.
  5. REMOVE PUSH ROD PIN
    1. Remove the clip from the push rod pin.
    2. Remove the push rod pin from the push rod clevis.
  6. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
    1. Remove the bolt from the support.

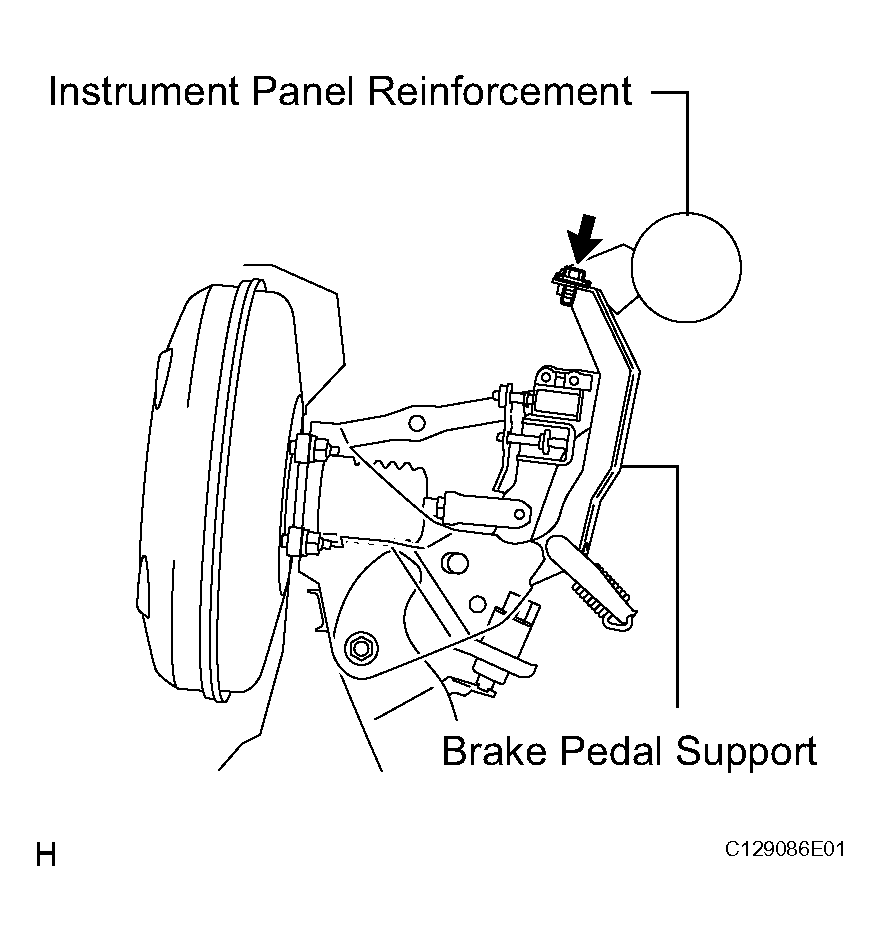

      Fig 1: Removing Bolt From Support
      G04489540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and support.
      Fig 2: Removing Nuts And Support
      G04489541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
