CHECK BRAKE FLUID LEVEL WARNING SWITCH

Remove the reservoir filler cap and strainer.
Disconnect the brake fluid level warning switch connector.

Measure the resistance of the switch.

HINT:

There is a float inside the reservoir. Its position can be changed by increasing or decreasing the brake fluid level.

Standard resistance

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
1 - 2	Float up (Switch OFF)	10 k or higher
1 - 2	Float down (Switch ON)	Below 1

If the value is not as specified, replace the brake master cylinder reservoir sub-assembly.

Add brake fluid to the MAX level.

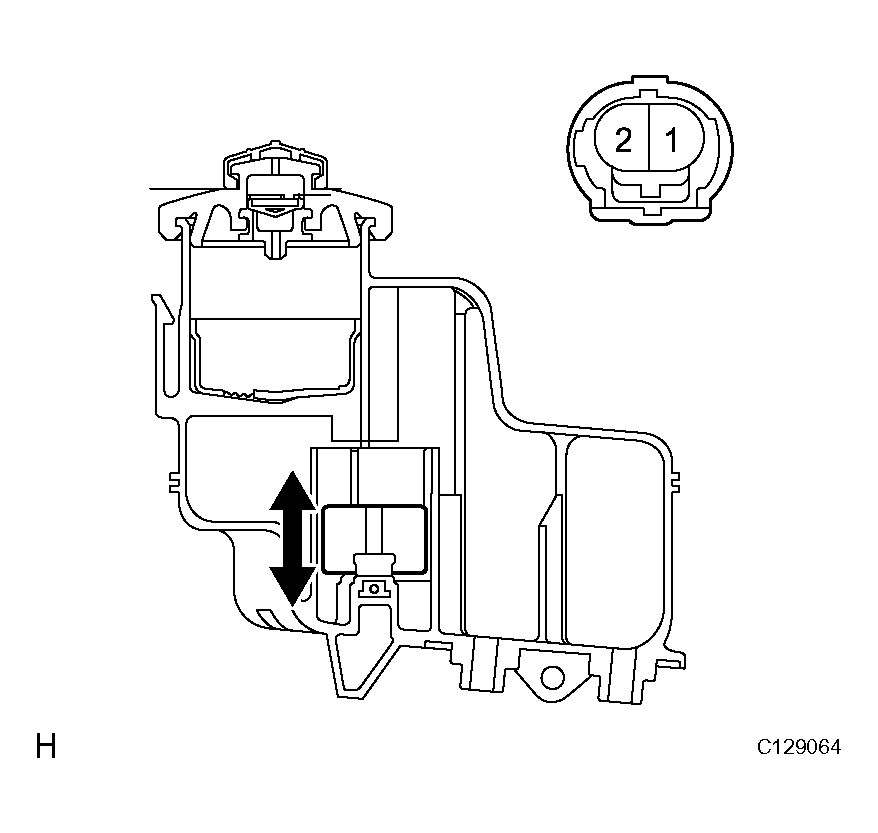

Fig 1: Checking Brake Fluid Level Warning Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
