Brake Master Cylinder: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

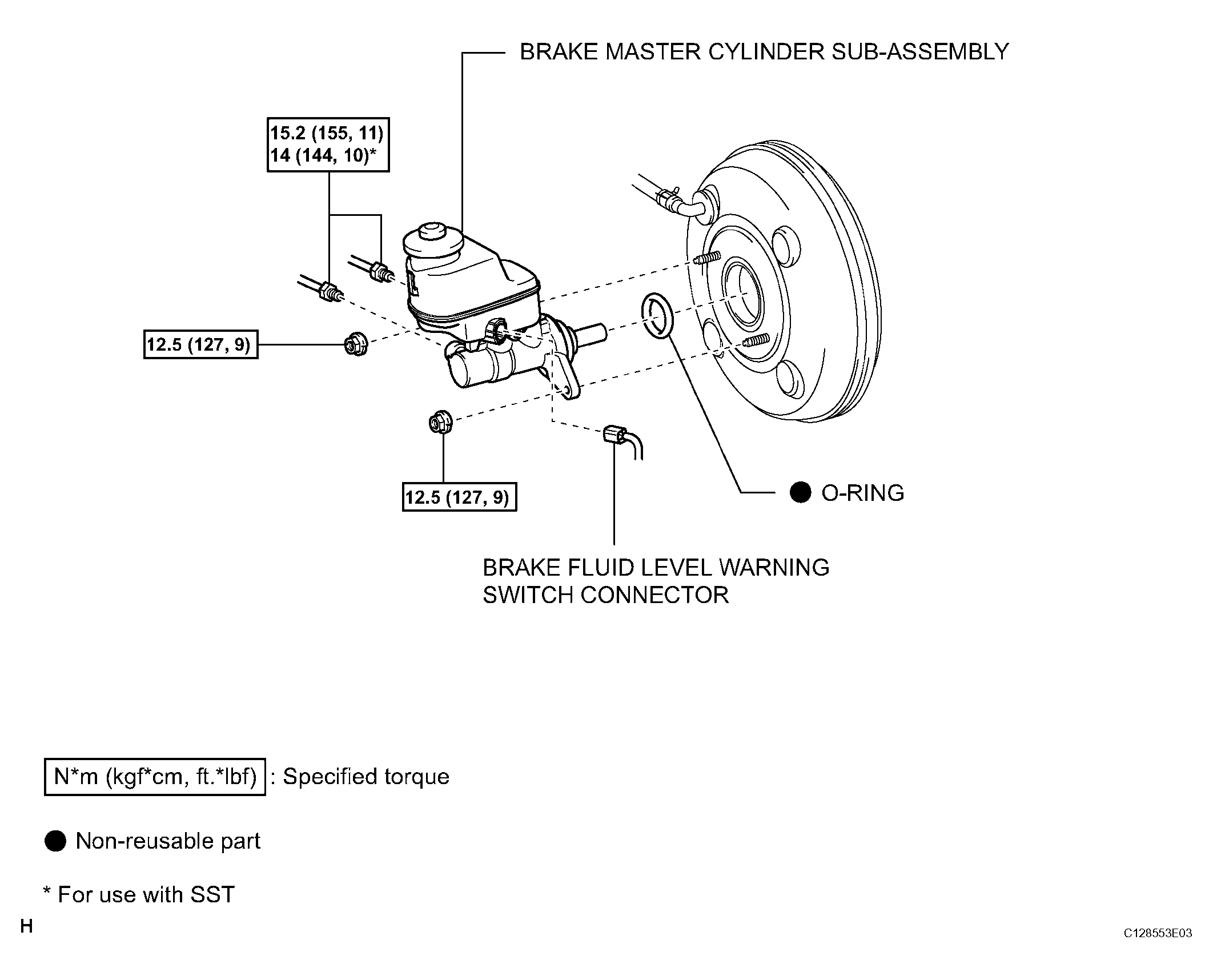

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 2)
G04489558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

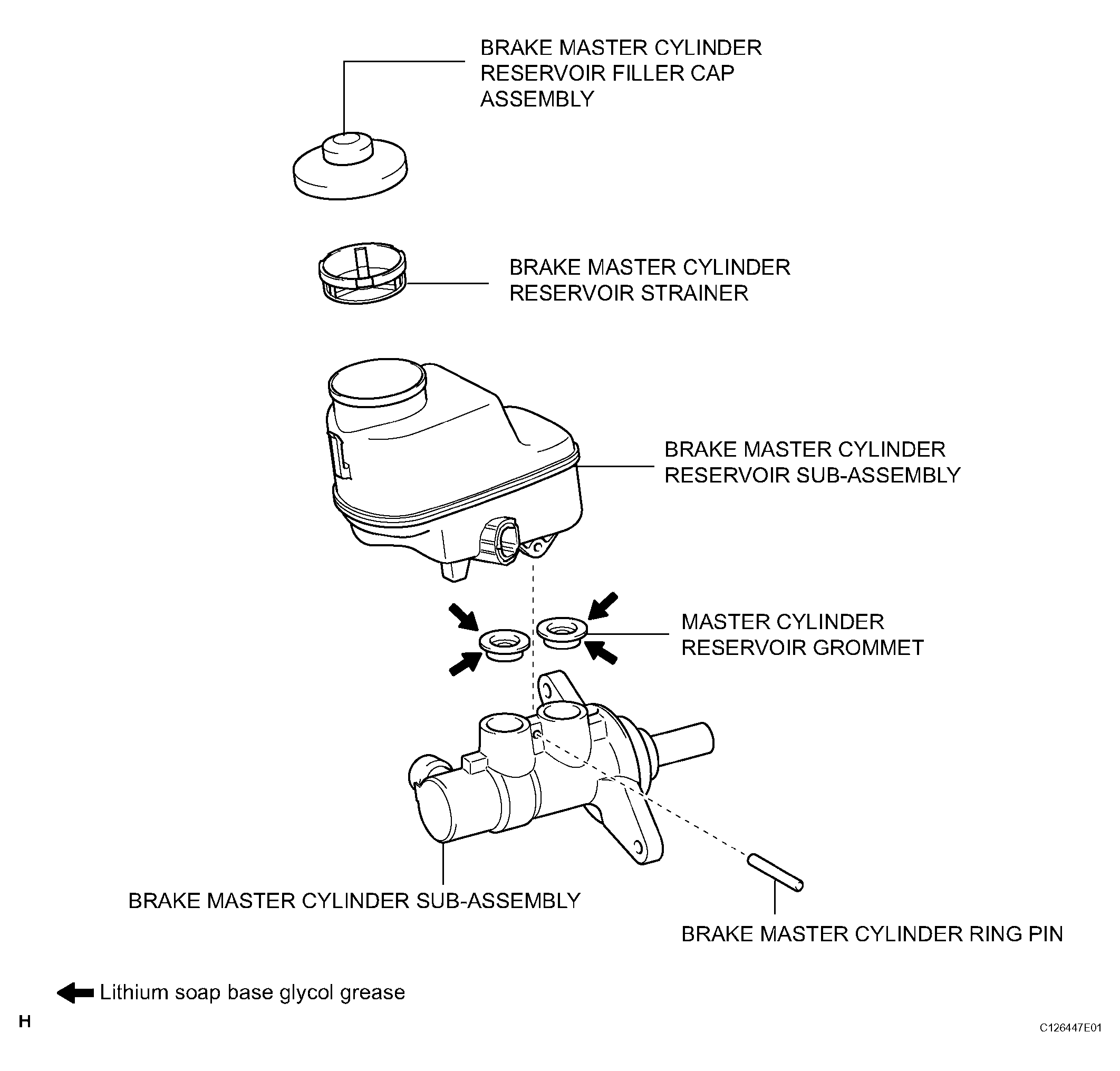

Fig 2: Identifying Brake Master Cylinder Components (2 Of 2)
G04489559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
