System Diagram

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

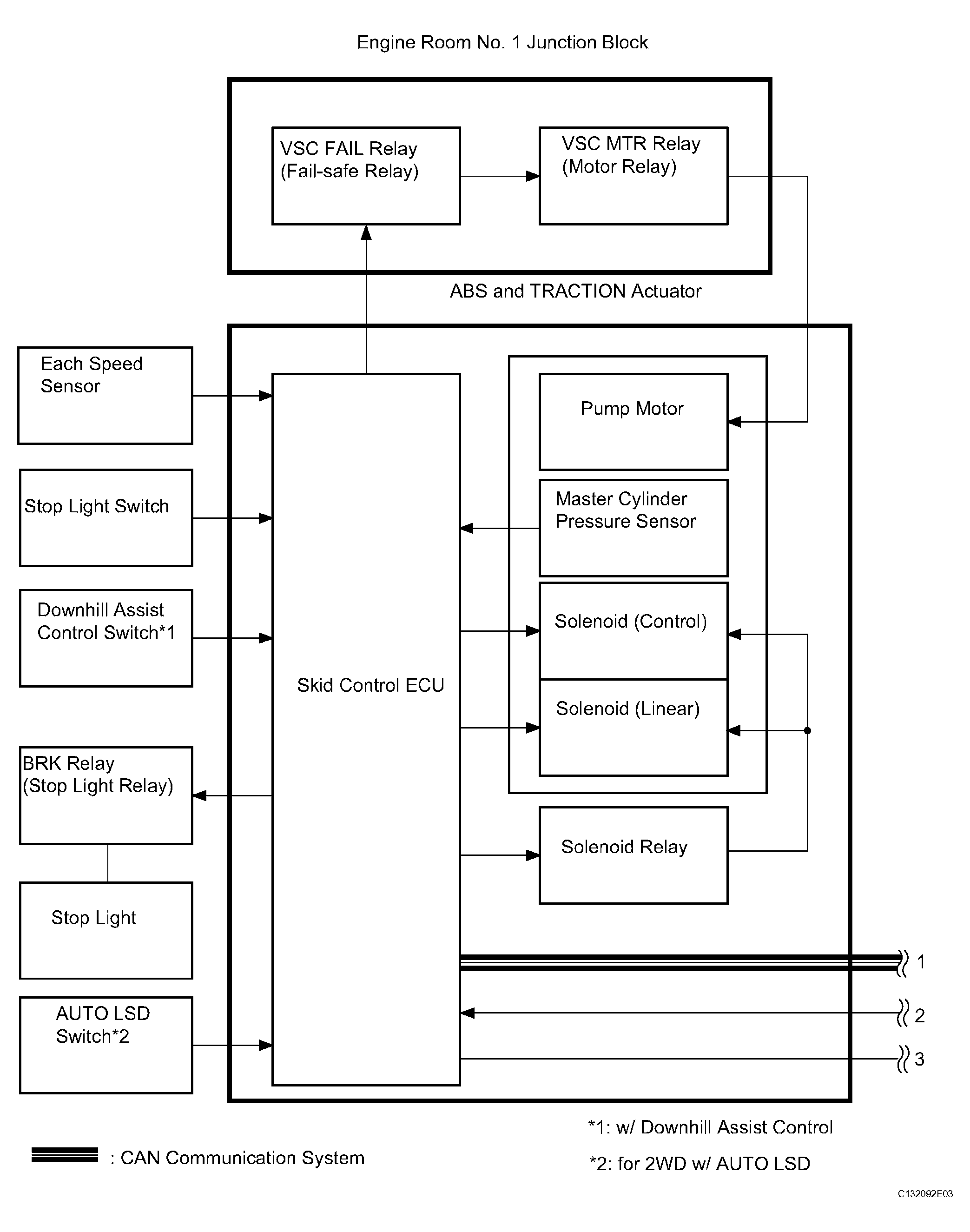

Fig 1: Brake System Diagram (1 Of 2)
G04489330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

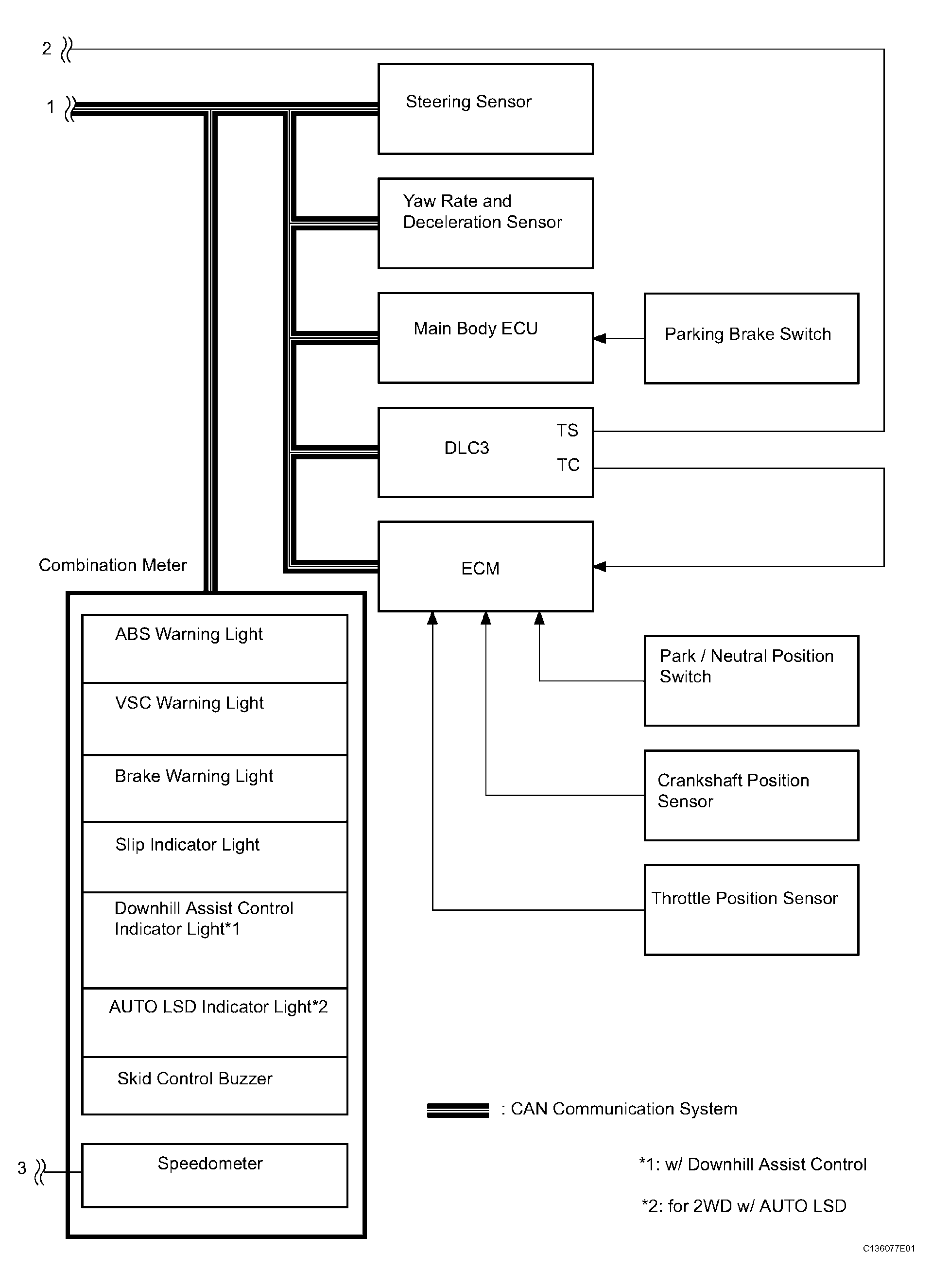

Fig 2: Brake System Diagram (2 Of 2)
G04489331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
