Parts Location

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

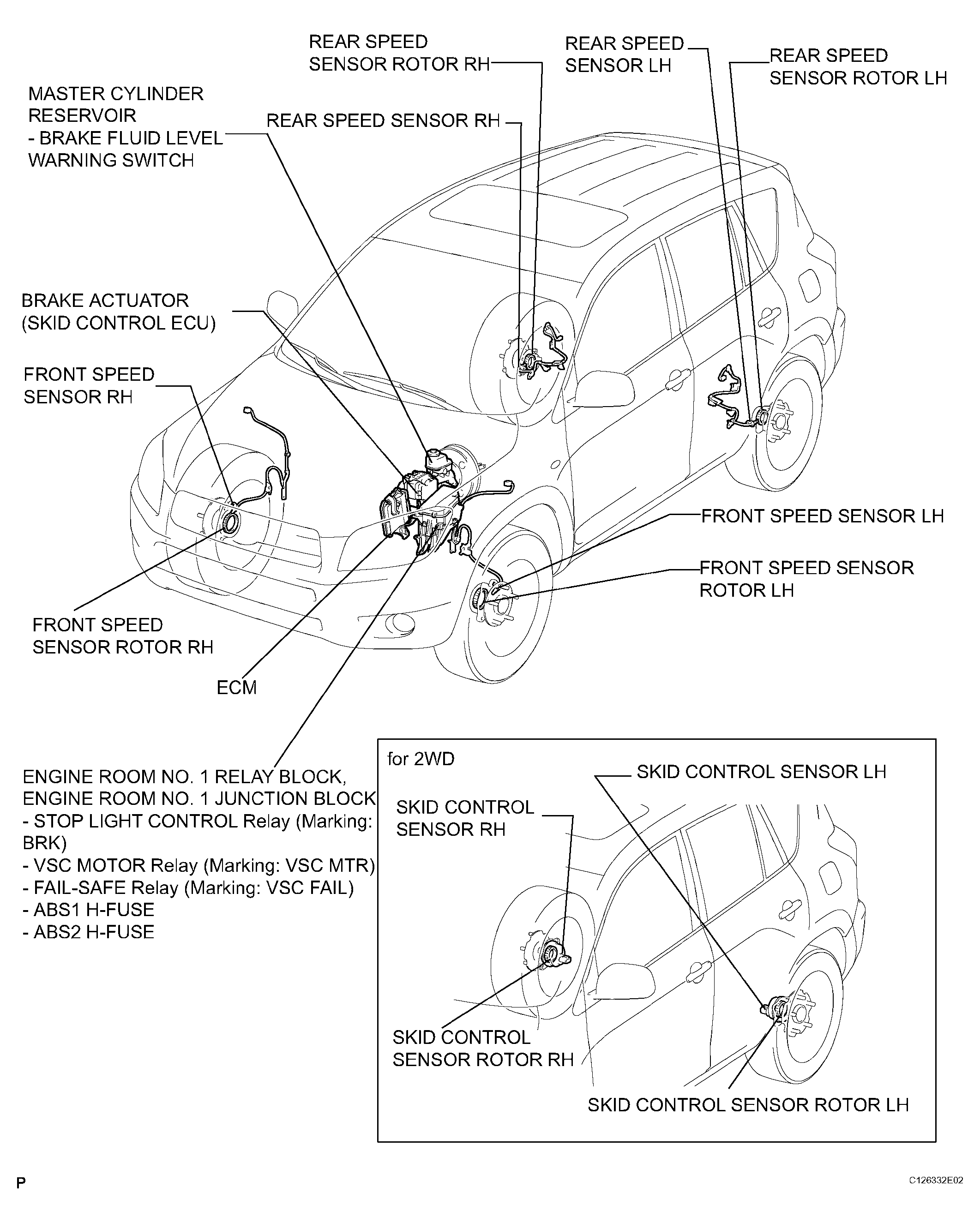

Fig 1: Identifying Location Of Brake Parts (1 Of 2)
G04489328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

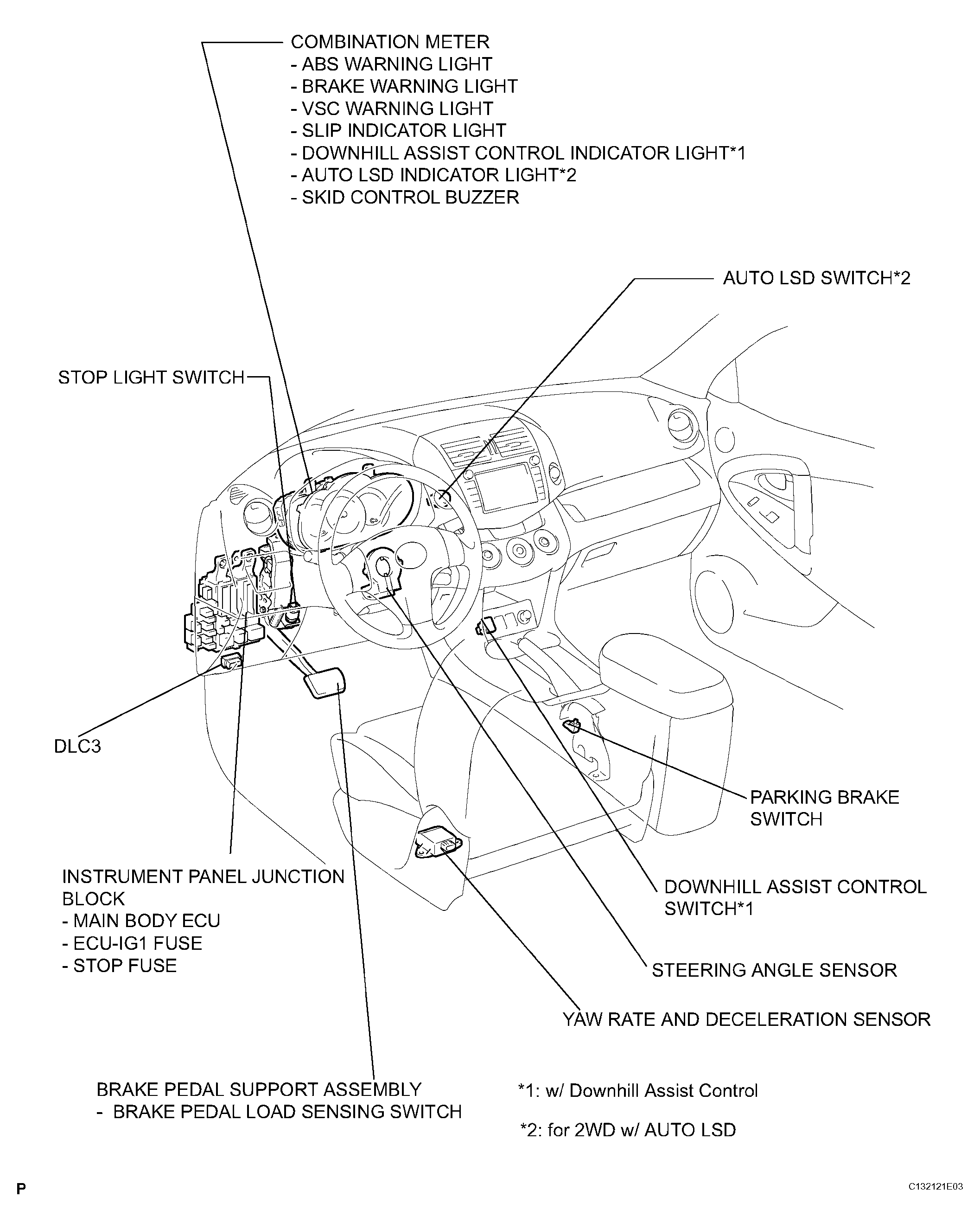

Fig 2: Identifying Location Of Brake Parts (2 Of 2)
G04489329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
