Inspection Procedure
WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK CAN COMMUNICATION SYSTEM
- Check if the CAN communication system DTC is output (see DIAGNOSIS SYSTEM
).
Result
TESTER CONNECTION SPECIFIED CONDITIONResult Proceed to DTC is not output A DTC is output B
B: REPAIR CAN COMMUNICATION SYSTEM
A: GO TO NEXT STEP.
- Check if the CAN communication system DTC is output (see DIAGNOSIS SYSTEM
).
- READ VALUE OF INTELLIGENT TESTER (AUTO LSD SWITCH)
- Check the Data List for proper functioning of the Auto LSD switch.
Skid control ECU
TESTER CONNECTION SPECIFIED CONDITIONItem (Display) Measurement Item / Range (Display) Normal Condition Diagnostic Note AUTO LSD SW Auto LSD switch (AUTO LSD switch) / ON or OFF ON: Auto LSD switch is ON
OFF: Auto LSD switch is OFF- OK: ON (downhill assist control switch is ON) appears on the screen.
NG: Go to step 5
OK: GO TO NEXT STEP.
- Check the Data List for proper functioning of the Auto LSD switch.
- PERFORM ACTIVE TEST BY INTELLIGENT TESTER (AUTO LSD INDICATOR LIGHT)
- Select the ACTIVE TEST, generate a control command, and then check that the AUTO LSD indicator light operates.
Skid control ECU
ITEM REFERENCEItem (Display) Test Details Diagnostic Note AUTO LSD LAMP Turn AUTO LSD indicator light ON / OFF Observe combination meter OK: The AUTO LSD indicator light turns ON and OFF.
NG: REPLACE ABS AND TRACTION ACTUATOR ASSEMBLY
OK: GO TO NEXT STEP.
- Select the ACTIVE TEST, generate a control command, and then check that the AUTO LSD indicator light operates.
- INSPECT COMBINATION METER ASSEMBLY
- Inspect the combination meter (see PROBLEM SYMPTOMS TABLE ).
NG: REPLACE COMBINATION METER ASSEMBLY
OK: REPLACE ABS AND TRACTION ACTUATOR ASSEMBLY
- INSPECT AUTO LSD SWITCH
- Disconnect the auto LSD switch switch.
- Measure the resistance of the switch.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 3 - 6 Not pushed 10 kΩ or higher 3 - 6 Pushed Below 1Ω
NG: REPLACE AUTO LSD SWITCH
OK: GO TO NEXT STEP.
- CHECK WIRE HARNESS (AUTO LSD SWITCH - SKID CONTROL ECU AND BODY GROUND)

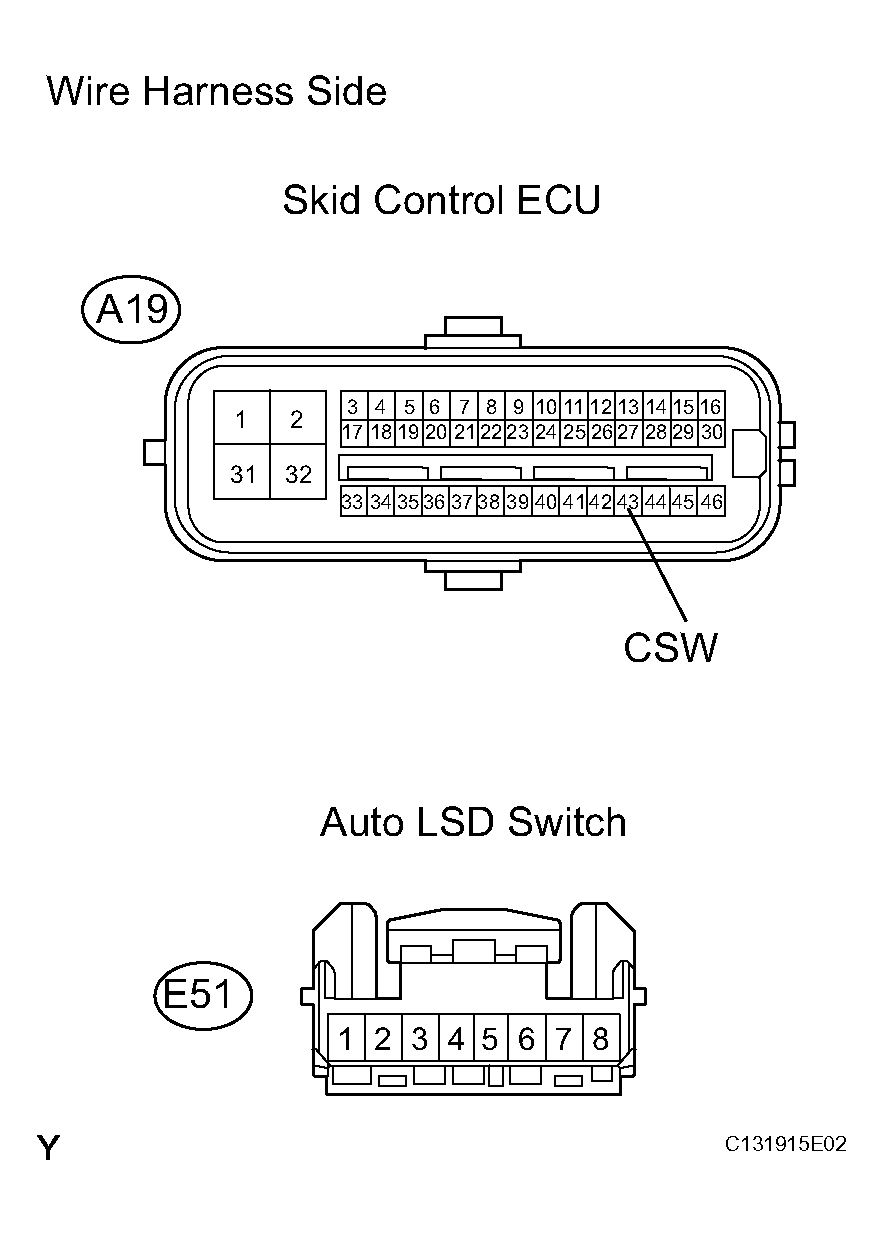

- Disconnect the A19 ECU connector. (See Fig 2).
- Disconnect the E51 switch connector. (See Fig 2).
- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition A19-43 (CSW) - E51-6 Below 1 Ω E51-3 - Body ground Below 1 Ω A19-43 (CSW) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE ABS AND TRACTION ACTUATOR ASSEMBLY
