Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CAN COMMUNICATION SYSTEM
    1. Check if the CAN communication system DTC is output (see DIAGNOSIS SYSTEM ).

      Result

      RESULT PROCEED

      Result Proceed to
      DTC is not output A
      DTC is output B

      OK: The connector is securely connected.

    B: REPAIR CAN COMMUNICATION SYSTEM

    A: GO TO NEXT STEP.

  2. CHECK SKID CONTROL ECU CONNECTOR
    1. Check if the skid control ECU connector is securely connected.

      OK: The connector is securely connected.

    NG: CONNECTOR CORRECTLY

    OK: GO TO NEXT STEP.

  3. CHECK WIRE HARNESS (SKID CONTROL ECU - BODY GROUND)
    1. Disconnect the A19 ECU connector.
    2. Measure the resistance of the wire harness side connector.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      A19-43 (CSW) - Body ground AUTO LSD switch is not pushed 10 kΩ or higher
      A19-43 (CSW) - Body ground AUTO LSD switch is pushed Below 1Ω
      Fig 1: Identifying A19 ECU Harness Connector Terminal (CSW)
      G04489444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to step   6

    NG: GO TO NEXT STEP.

  4. INSPECT AUTO LSD SWITCH
    1. Remove the auto LSD switch.
    2. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      3 - 6 Not pushed 10 kΩ or higher
      3 - 6 Pushed Below 1Ω
      Fig 2: Inspecting Auto LSD Switch
      G04489445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE TRACTION CONTROL SWITCH

    OK: GO TO NEXT STEP.

  5. CHECK WIRE HARNESS (SKID CONTROL ECU - TRACTION CONTROL SWITCH)
    1. Disconnect the A19 ECU connector. (See Fig 3).
    2. Disconnect the E51 switch connector. (See Fig 3).
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      A19-43 (CSW) - E51-6 Below 1 Ω
      E51-3 - Body ground Below 1 Ω
      A19-43 (CSW) - Body ground 10 kΩ or higher

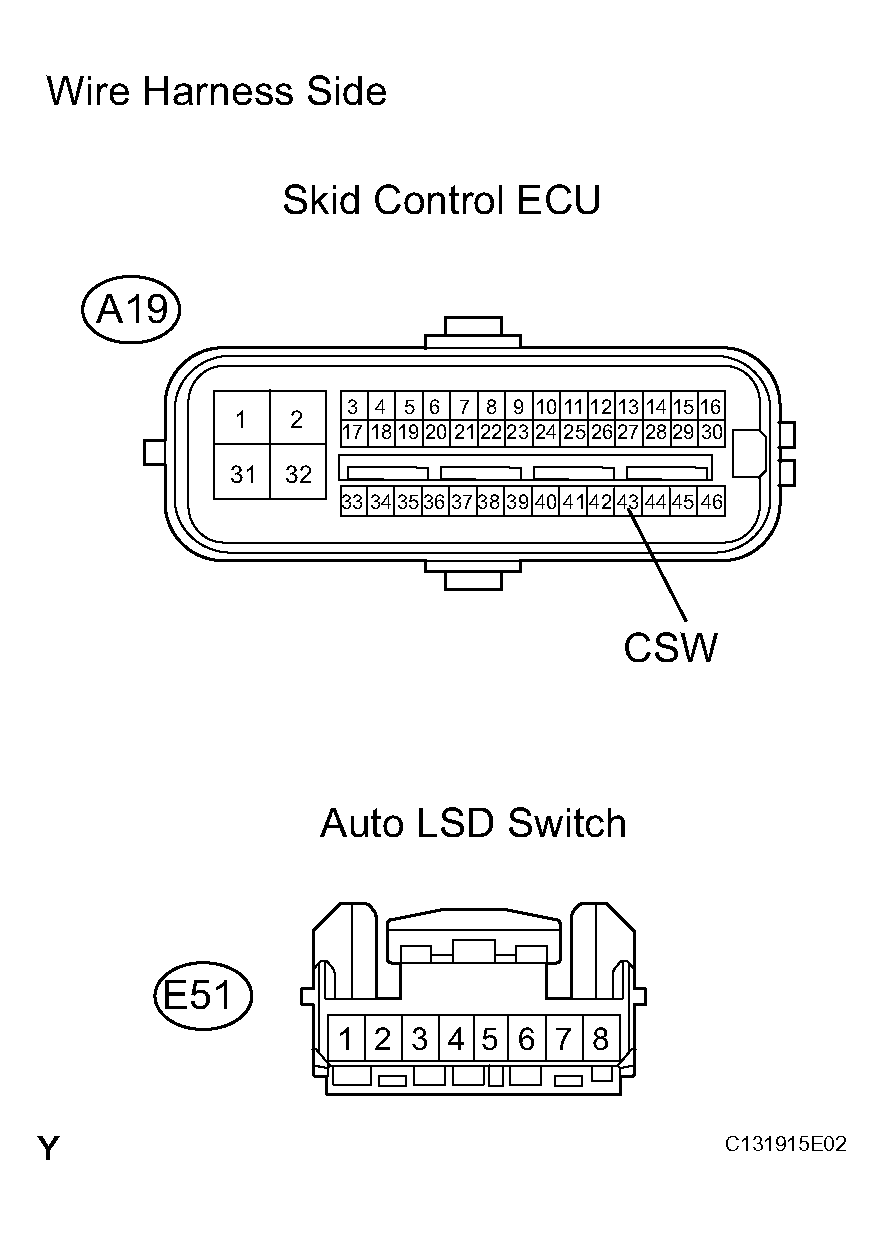

      Fig 3: Identifying A19 ECU Harness Connector Terminal (CSW) & E51 Switch Connector
      G04489446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: GO TO NEXT STEP.

  6. CHECK COMBINATION METER
    1. Check the combination meter (see PROBLEM SYMPTOMS TABLE ).

    NG: REPLACE COMBINATION METER ASSEMBLY

    OK: REPLACE ABS AND TRACTION ACTUATOR ASSEMBLY
