SKID CONTROL SENSOR (for 2WD): Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

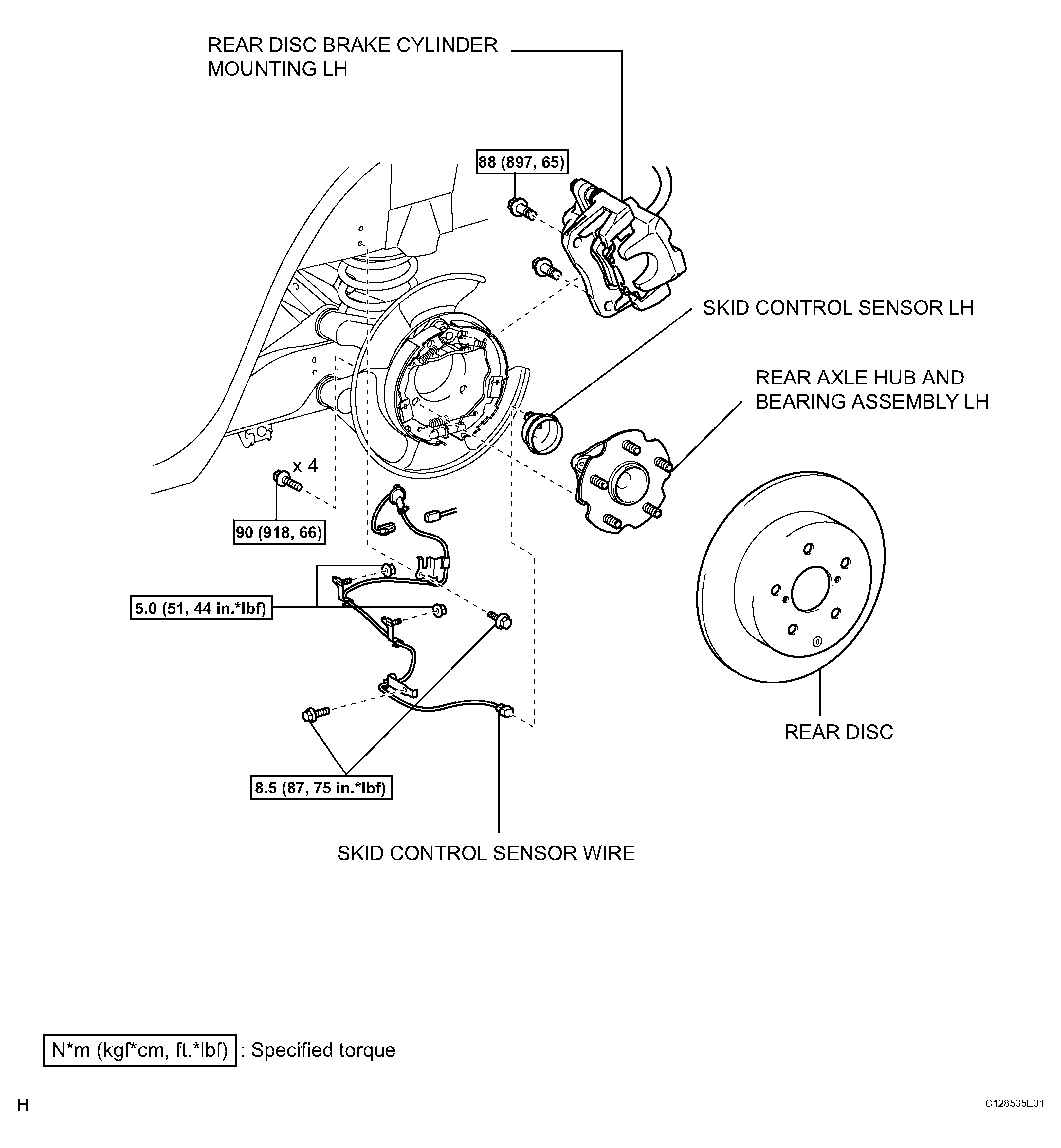

Fig 1: Skid Control Sensor Replacement Components With Torque Specifications
G04489490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
