REAR SPEED SENSOR (for 4WD): Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE REAR WHEEL
3. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
   1. Remove the deck trim side panel LH (see REMOVAL ).

      HINT:

      Refer to procedures from the removal of the rear door scuff plate LH up until the removal of the deck trim side panel assembly LH.

4. REMOVE REAR SPEED SENSOR LH
   1. Disconnect the speed sensor connector.
      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the grommet of the speed sensor wire from the hole of the wheel house.

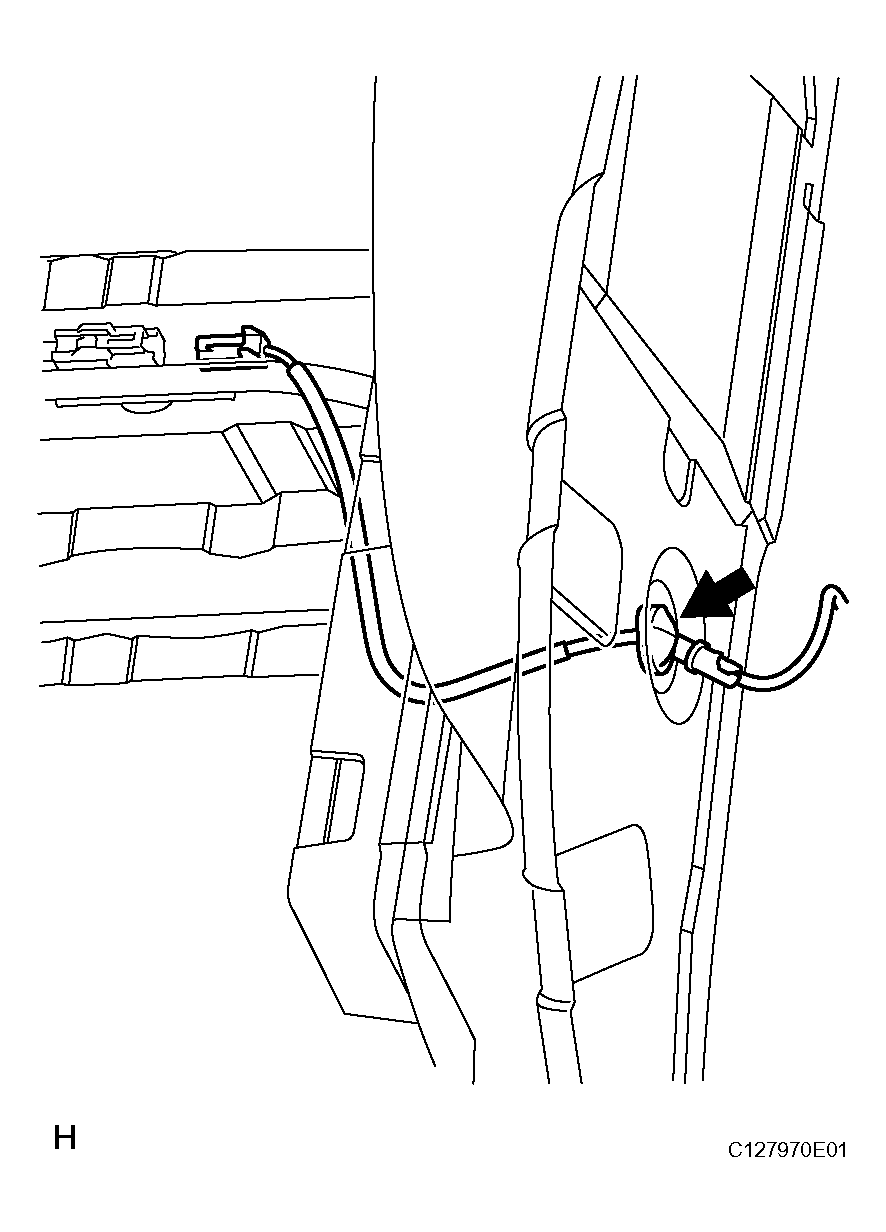

      Fig 2: Disconnecting Grommet Of Speed Sensor Wire From Hole Of Wheel House

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the bolt (labeled A) and sensor clamp (labeled B) from the side member. (See Fig 3).
   4. Remove the 2 nuts (labeled C) and sensor clamps (labeled D) from the upper arm.

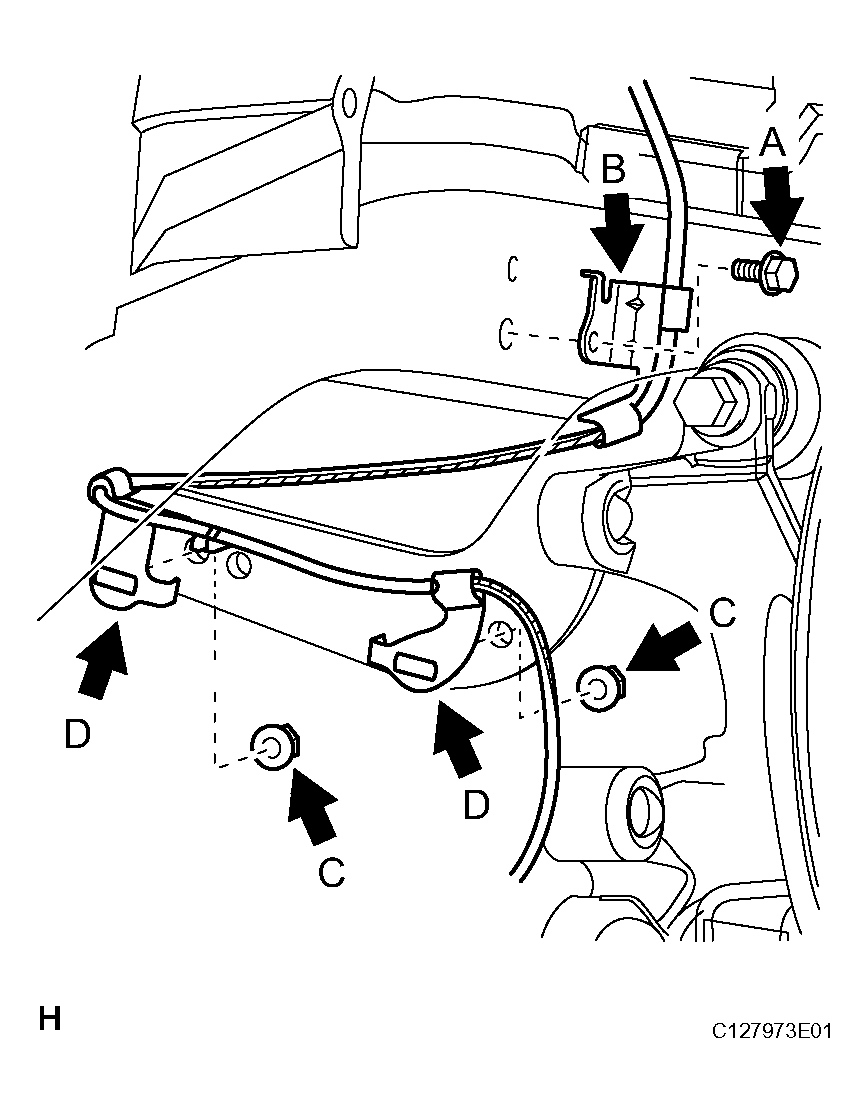

      Fig 3: Removing Sensor Clamps From Upper Arm

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the nut (labeled E) and sensor clamp (labeled F) from the trailing arm. (See Fig 4).
   6. Remove the bolt (labeled G) and sensor body (labeled H) from the carrier.
      NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

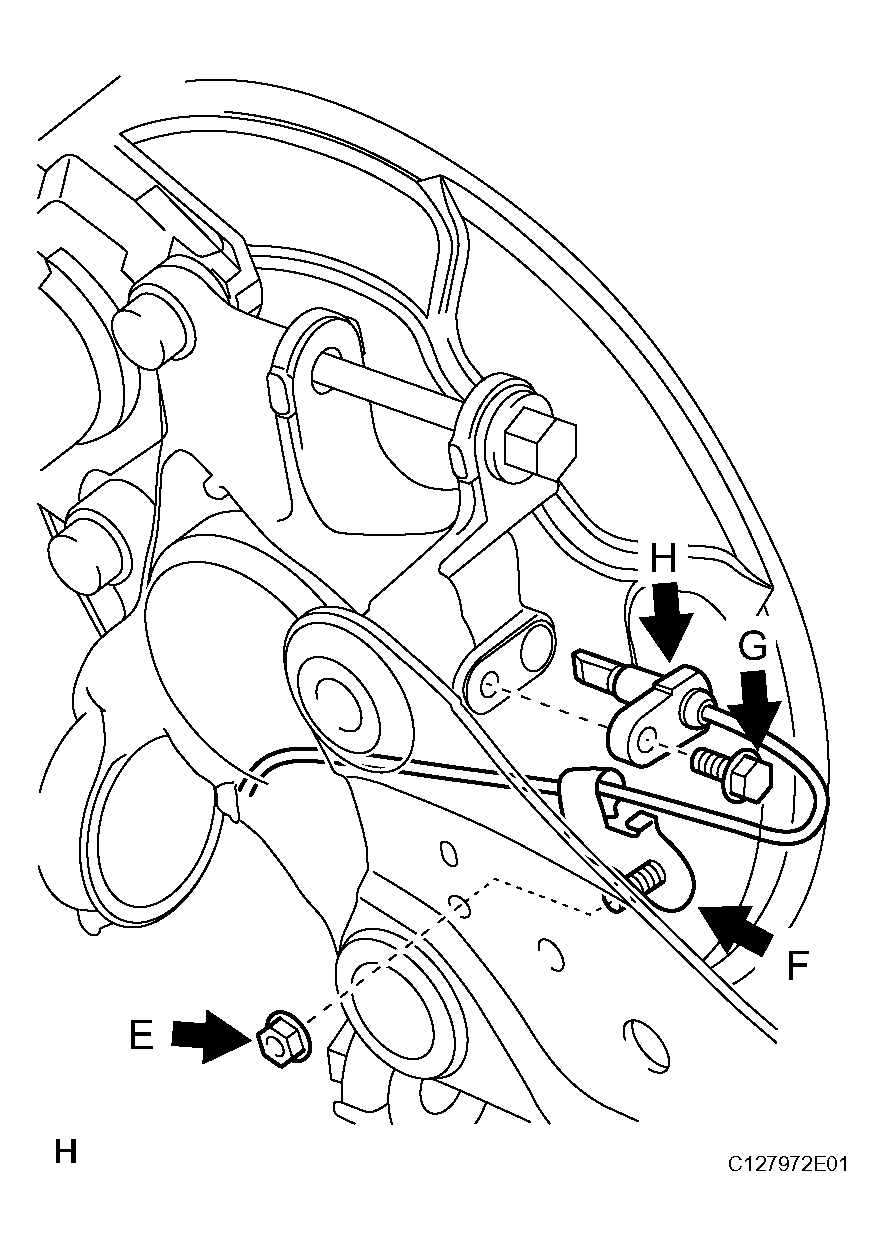

      Fig 4: Removing Sensor Clamp (Labeled F) From Trailing Arm

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
