Front Speed Sensor: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER LH
REMOVE FRONT SPEED SENSOR LH

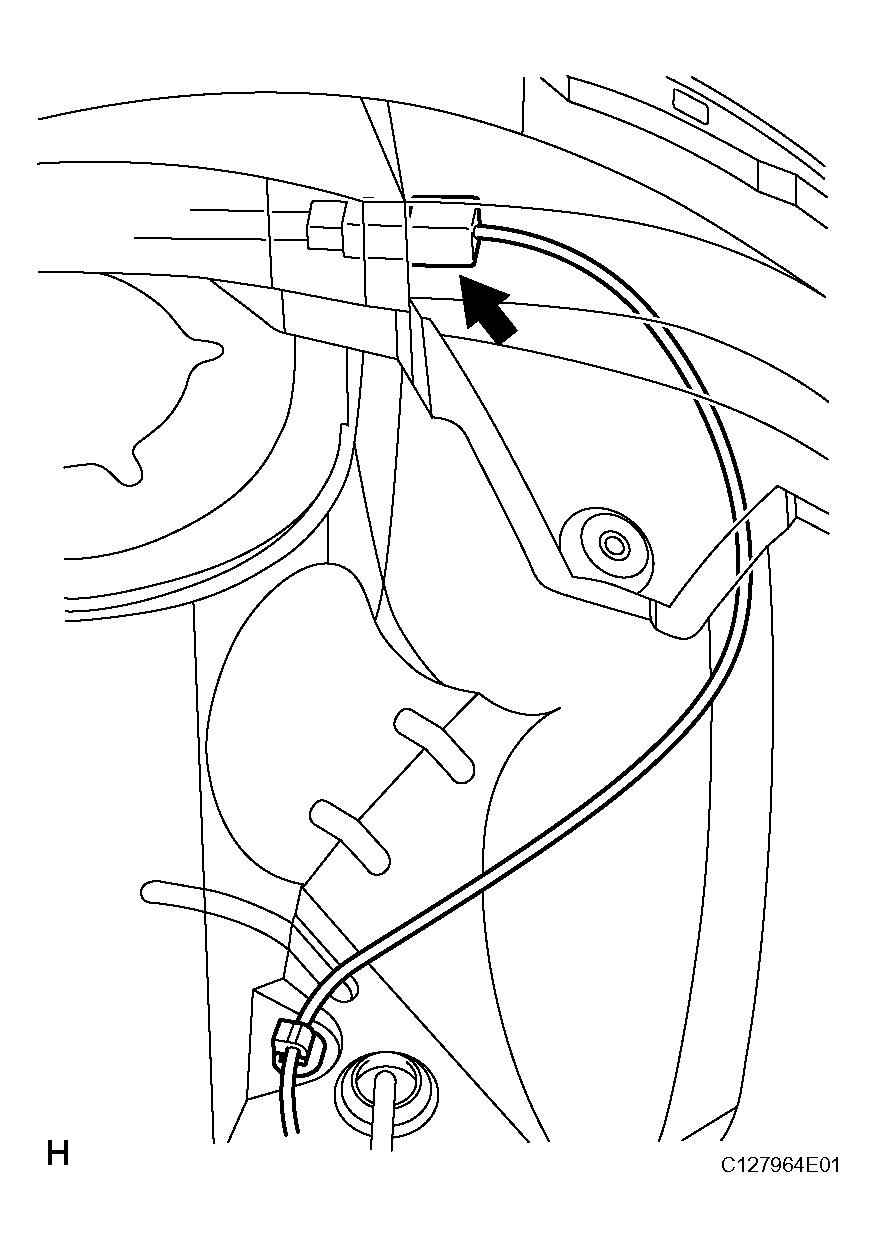

1. Disconnect the sensor connector.

  Fig 1: Disconnecting Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

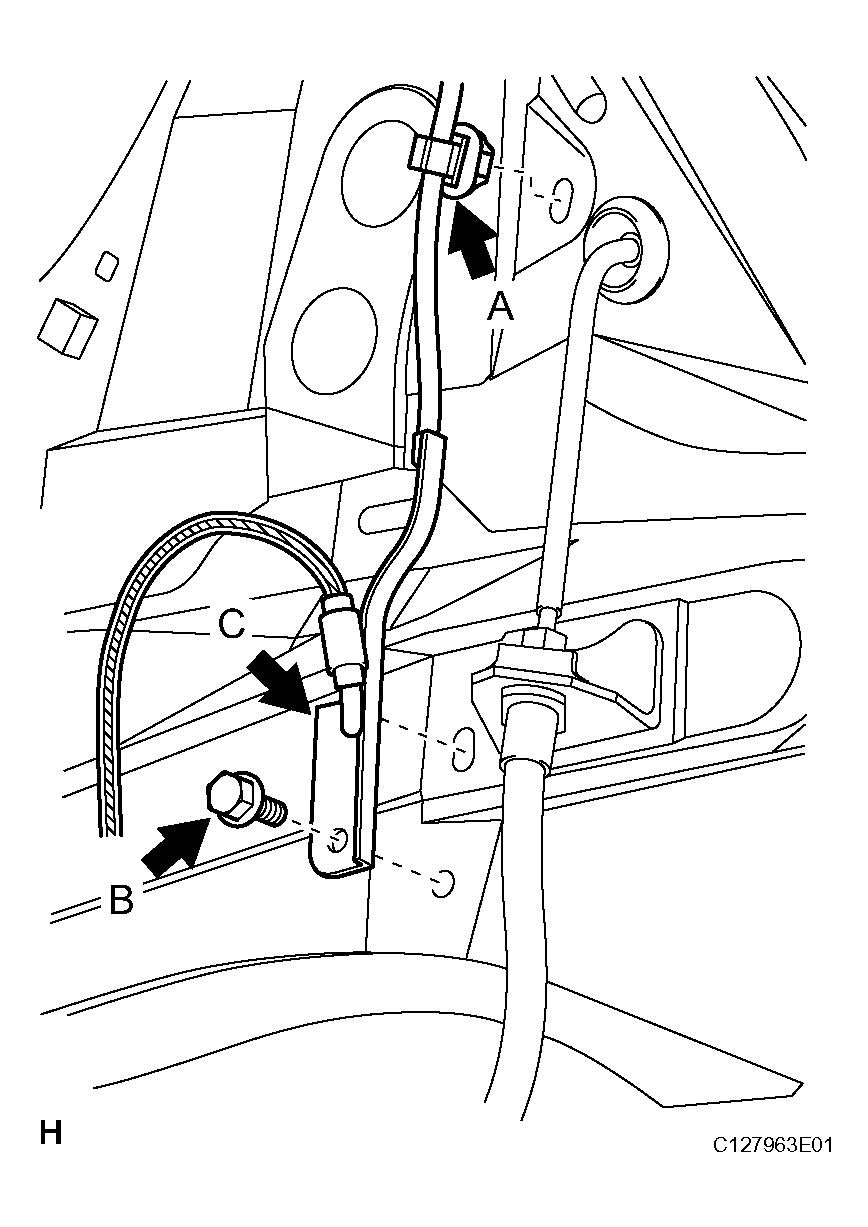

2. Remove the sensor clip (labeled A), bolt (labeled B) and sensor clamp (labeled C).

  Fig 2: Removing Sensor Clip (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

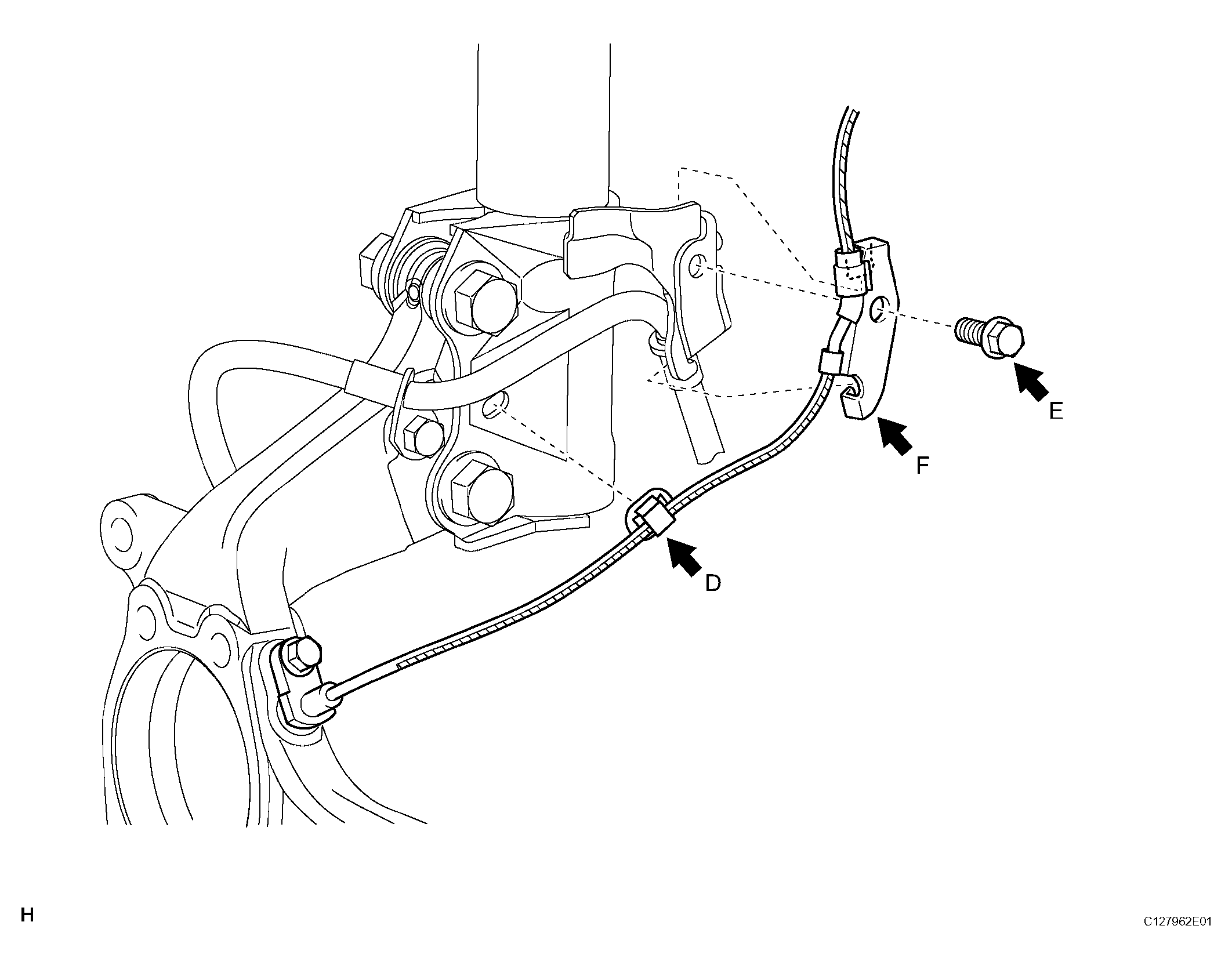

3. Remove the sensor clip (labeled D), bolt (labeled E) and sensor clamp (labeled F).

  Fig 3: Removing Sensor Clip (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

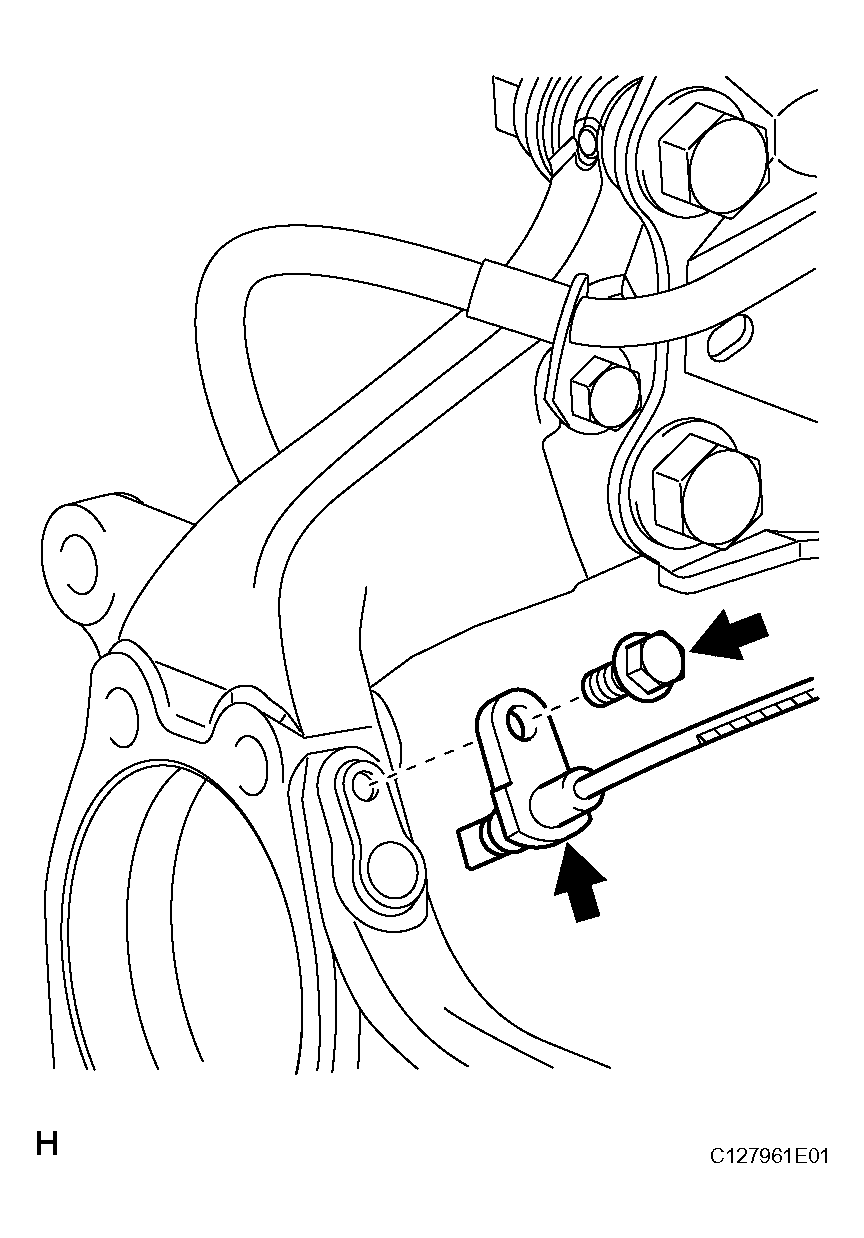

4. Remove the bolt and sensor body from the knuckle.
  NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

  Fig 4: Removing Sensor Body From Knuckle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
