Abs And Traction Actuator: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ABS AND TRACTION ACTUATOR ASSEMBLY WITH BRACKET
NOTE: Do not remove the hole plug before connecting the brake tube. New actuators are filled with brake fluid.
1. Install the actuator with bracket with the 3 nuts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  HINT:

  The nuts should be tightened in order from 1 to 3 as shown in Fig 1.

  NOTE: Be careful not to damage the brake tubes.

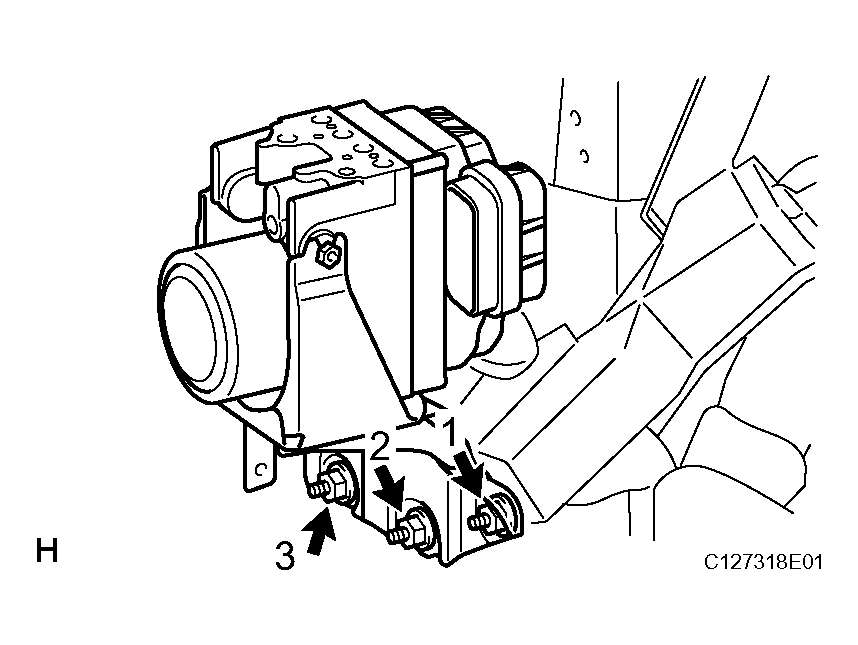

  Fig 1: Installing Actuator Assembly To Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the brake tube clamp to the bracket.

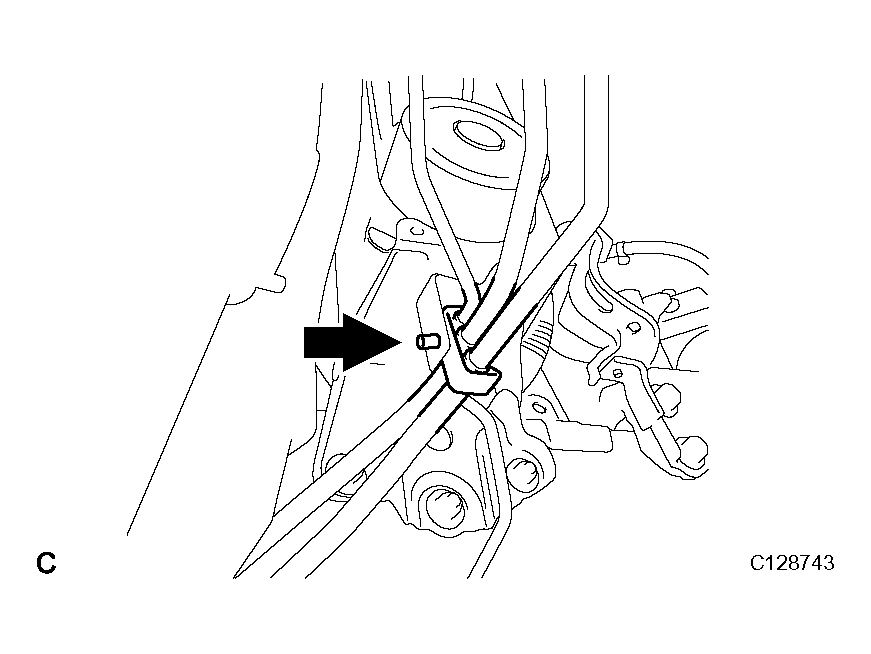

  Fig 2: Connecting Brake Tube Clamp To Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector and push the lock lever downward.

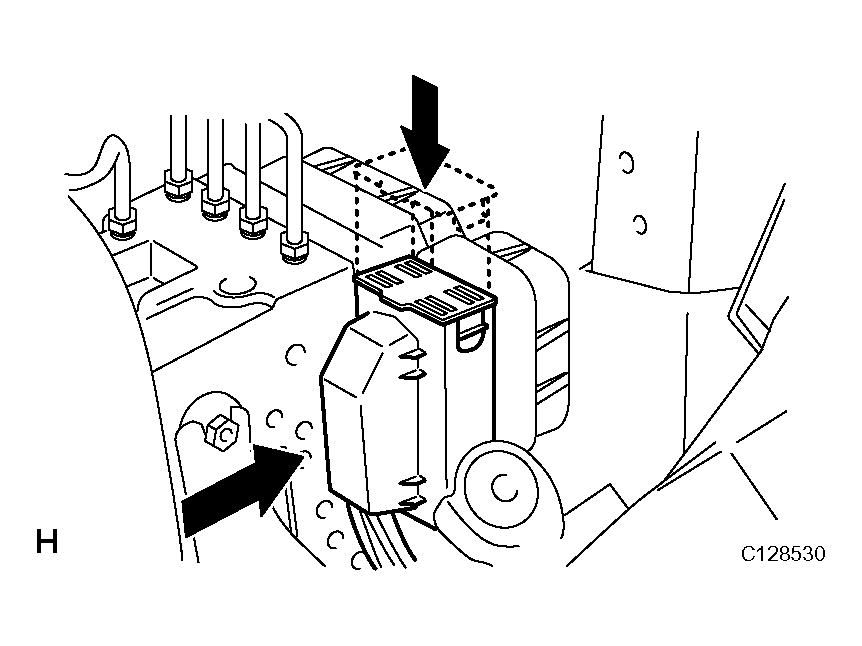

  Fig 3: Pushing Lock Lever Downward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BRAKE LINES
1. Using SST, connect the 6 brake lines to the correct locations on the actuator, as shown in Fig 4.
  SST 09023-00101

  Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf) without SST

  14 N*m (144 kgf*cm, 10 ft.*lbf) with SST

  HINT:

  Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

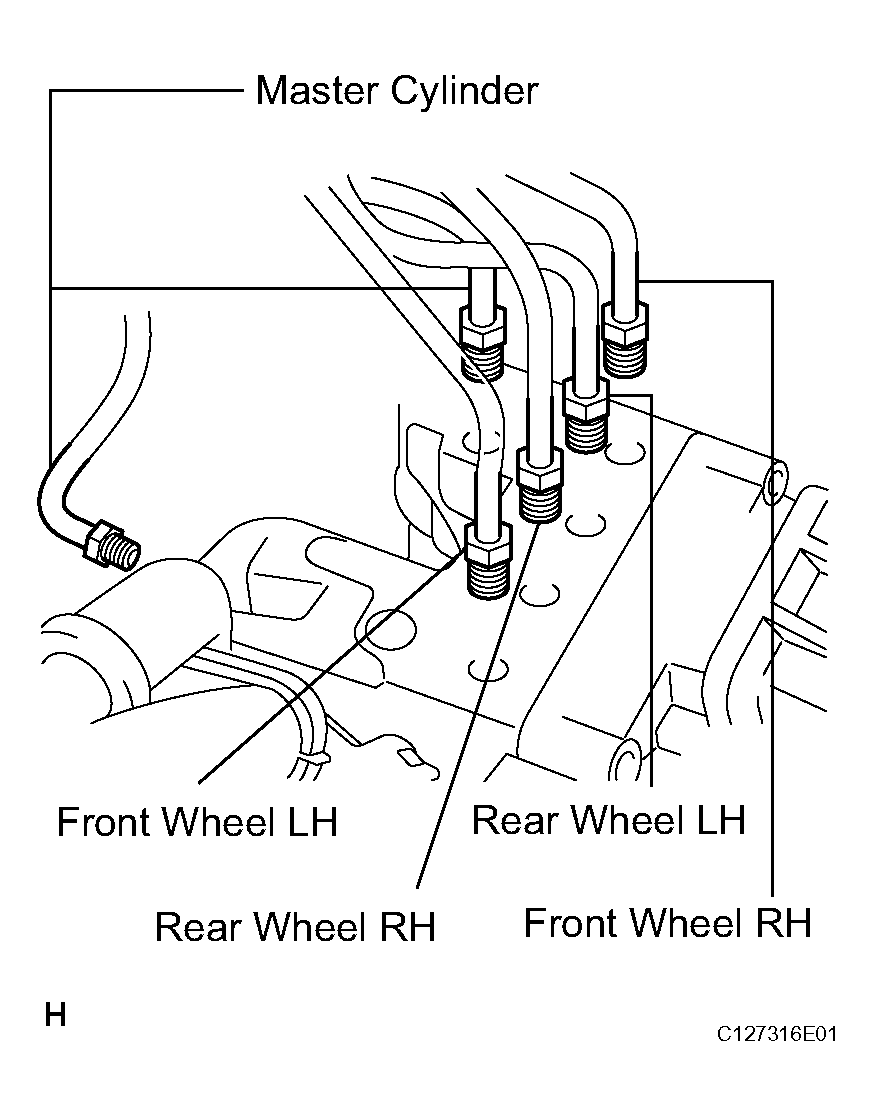

Fig 4: Installing Connect Brake Lines
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FILL RESERVOIR WITH BRAKE FLUID (See BRAKE FLUID )
BLEED AIR FROM BRAKE MASTER CYLINDER (See BLEEDING )
BLEED AIR FROM BRAKE LINE (See BLEEDING )
BLEED AIR FROM ABS AND TRACTION ACTUATOR ASSEMBLY (See BLEEDING )
CHECK BRAKE FLUID LEVEL IN RESERVOIR (See BRAKE FLUID )
CHECK FOR BRAKE FLUID LEAKAGE
INSTALL AIR CLEANER CASE SUB-ASSEMBLY (for 2AZ-FE)
1. Install the air cleaner case (see COMPONENTS ), also see appropriate steps under INSTALLATION ).
  HINT:

  Refer to procedures from the installation of the air cleaner case up until the installation of the purge VSV.
INSTALL AIR CLEANER CASE (for 2GR-FE)
1. Install the air cleaner case (see COMPONENTS ), also see appropriate steps under INSTALLATION ).
  HINT:

  Refer to procedures from the installation of the air cleaner case up until the installation of the air cleaner cap sub-assembly.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK ABS AND TRACTION ACTUATOR ASSEMBLY WITH INTELLIGENT TESTER
1. Check the ABS and traction actuator with the intelligent tester (see ABS AND TRACTION ACTUATOR ).
