Roof Drip Side Finish Molding: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE NO. 2 ROOF DRIP SIDE FINISH MOLDING CENTER LH
1. Remove the 3 moldings.
REMOVE ROOF DRIP SIDE FINISH MOLDING LH
1. Using a molding remover, detach the claws and remove the molding.
  NOTE:
  - Be careful not to damage the vehicle body.
  - Do not remove the No. 2 roof drip side finish molding clip.
  - When the clip is accidentally removed, replace it with a new one.

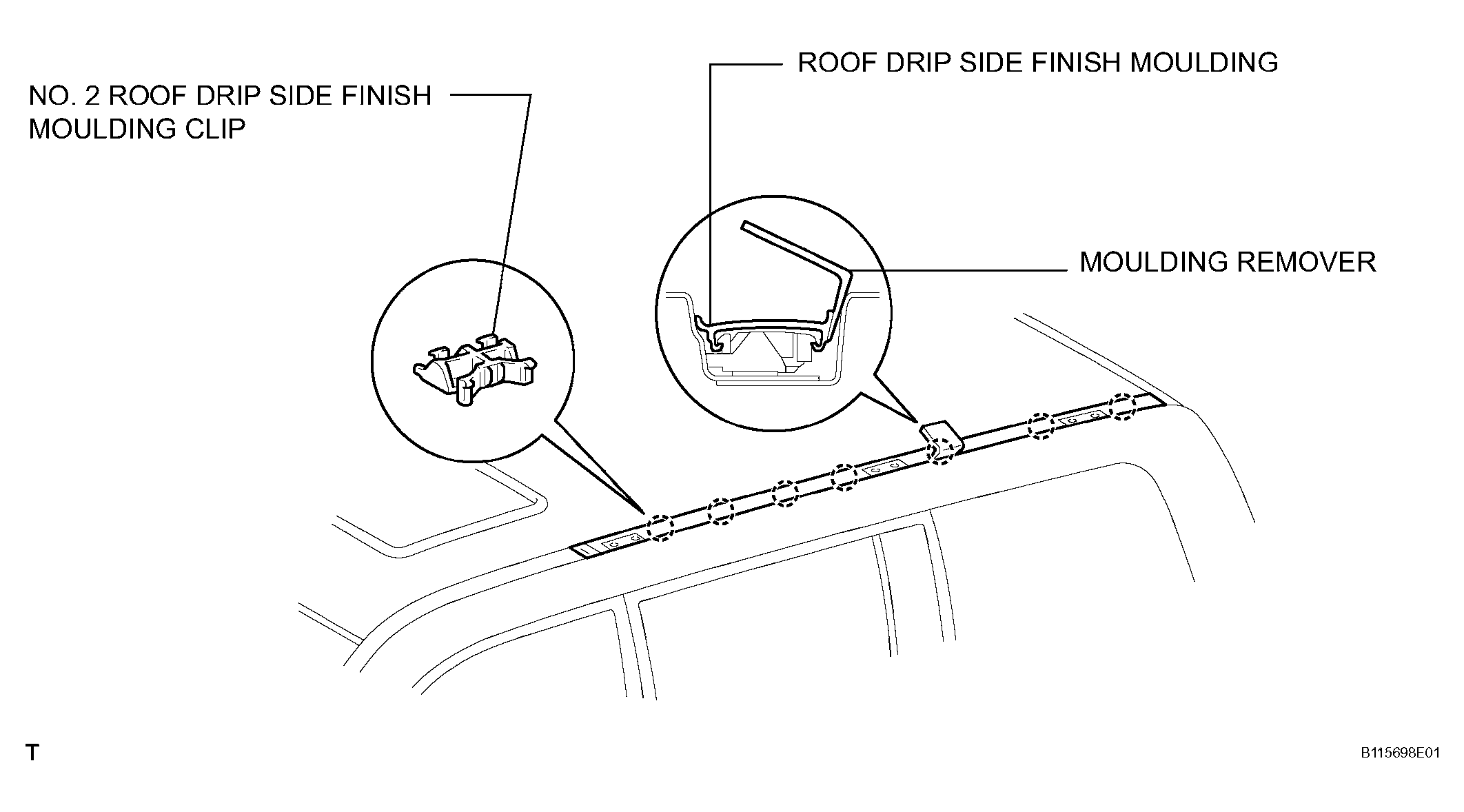

  Fig 1: Identifying Roof Drip Side Finish Moulding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
