Rear Bumper: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE QUARTER PANEL MUDGUARD SUB-ASSEMBLY REAR LH
1. Using a clip remover, remove the clip.
2. Remove the 6 screws and detach the claw. Then remove the mudguard.

  Fig 1: Identifying Quarter Panel Mudguard Sub-Assembly Rear LH Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE QUARTER PANEL MUDGUARD SUBASSEMBLY REAR RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR BUMPER COVER
1. w/Tow hitch receiver:
  Using a screwdriver, detach the claws and remove the rear bumper lower cover.
2. w/Tow hitch receiver:
  Remove the 4 bolts and the tow hitch receiver.

  HINT:

  Before removing the tow hitch receiver, loosen the rear bumper cover.

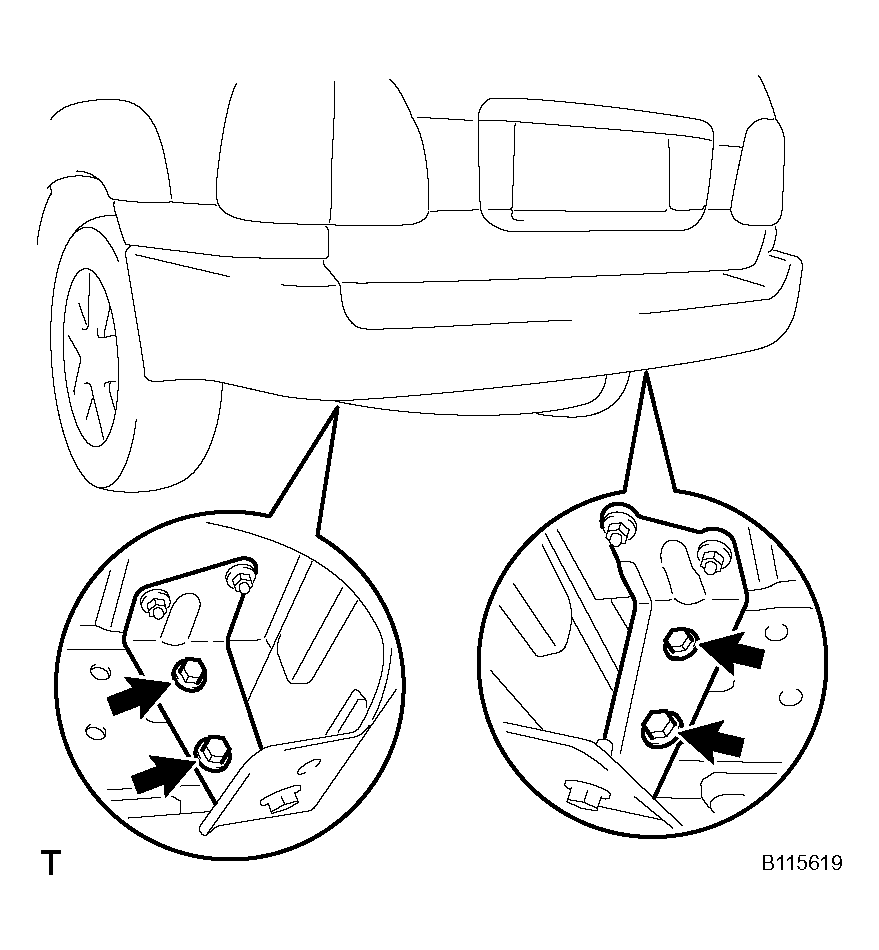

3. Remove the 4 bolts.
4. Remove the 4 bolts and bumper cover.

  Fig 3: Identifying Bumper Cover Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
