Rear Bumper: Installation

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR BUMPER COVER
1. Install the bumper cover with the 4 bolts.
  Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

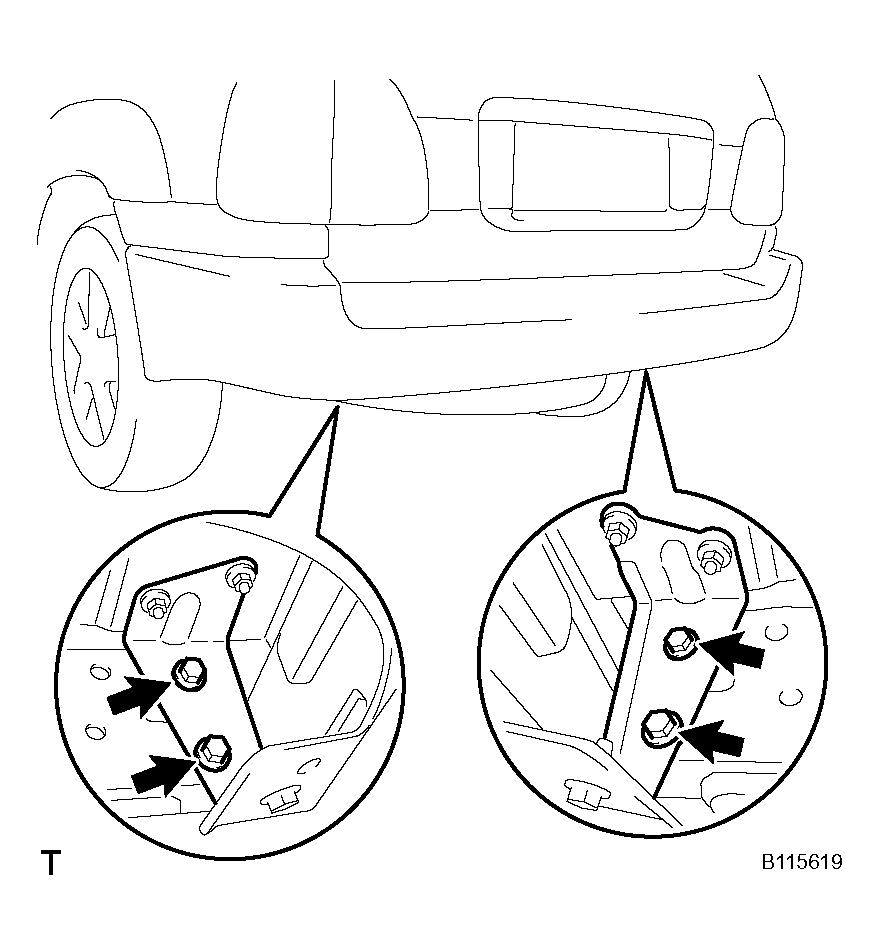

  Fig 1: Identifying Bumper Cover Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 4 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
3. w/Tow hitch receiver:
  Install the tow hitch receiver with the 4 bolts.

  HINT:

  Temporarily install the rear bumper cover before installing the tow hitch receiver.

  Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)
4. w/Tow hitch receiver:
  Install the rear bumper lower cover.

  Fig 2: Identifying Tow Hitch Receiver Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL QUARTER PANEL MUDGUARD SUBASSEMBLY REAR LH
1. Attach the claw.
2. Install the mudguard with the 6 screws and clip.

  Fig 3: Identifying Mudguard Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL QUARTER PANEL MUDGUARD SUBASSEMBLY REAR RH
HINT:

Use the same procedures described for the LH side.
