Radiator Grille: Installation

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When installing the emblem, heat the vehicle body and emblem using a heat light.

Standard heating temperature

TEMPERATURE REFERENCE

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Emblem	20 to 30°C (68 to 86°F)

NOTE: Do not heat the vehicle body and emblem excessively.

INSTALL RADIATOR GRILLE EMBLEM
1. Clean the vehicle body surface.
  1. Using a heat light, heat the vehicle body surface.
  2. Remove the double-sided tape from the vehicle body.
  3. Wipe off any tape adhesive residue with cleaner.
2. If reusing the emblem:
  Clean the emblem.
  1. Using a heat light, heat the emblem.
  2. Remove the double-sided tape from the emblem.
  3. Wipe off any tape adhesive residue with cleaner.
  4. Apply new double-sided tape to the emblem.
3. Install the emblem.
  1. Using a heat light, heat the vehicle body and emblem.
  2. Remove the peeling paper from the face of the emblem.
    HINT:

    After removing the peeling paper, keep the exposed adhesive free from foreign matter.
  3. Install the emblem.

    Fig 1: Identifying Radiator Grille Emblem
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE
1. Install the grille with the 3 screws.

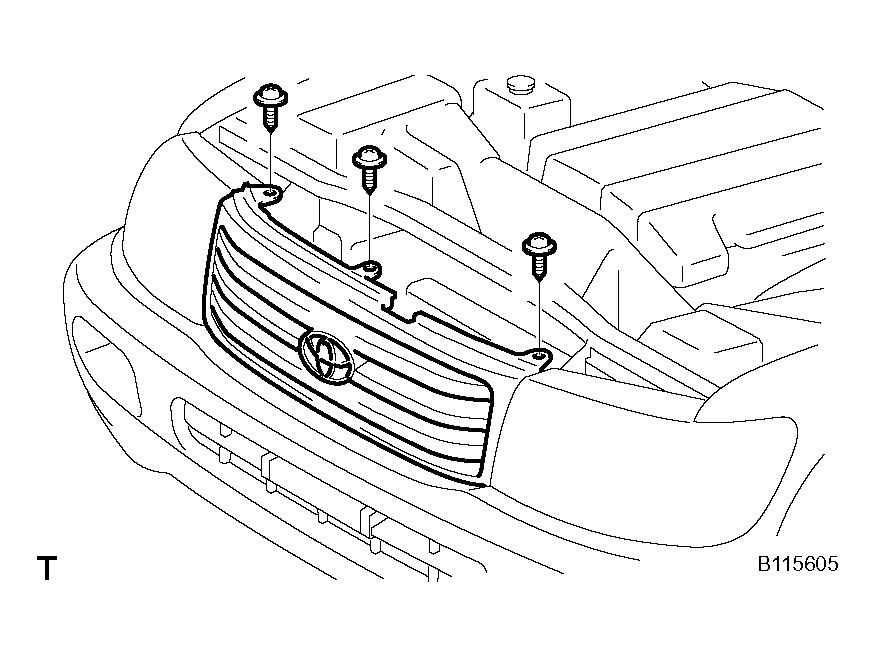

  Fig 2: Identifying Radiator Grille Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
