Section 84 ((Door / Hatch)): Hood: Adjustment

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Since the centering bolt is used as a hood hinge set bolt, the hood cannot be adjusted with it on. Substitute the bolt with a washer for the centering bolt.

Fig 1: Identifying Centering Bolt

ADJUST HOOD IN FORWARD/REARWARD AND LEFT/RIGHT DIRECTIONS
1. Adjust the hood by loosening the hood side hinge bolts.
  Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

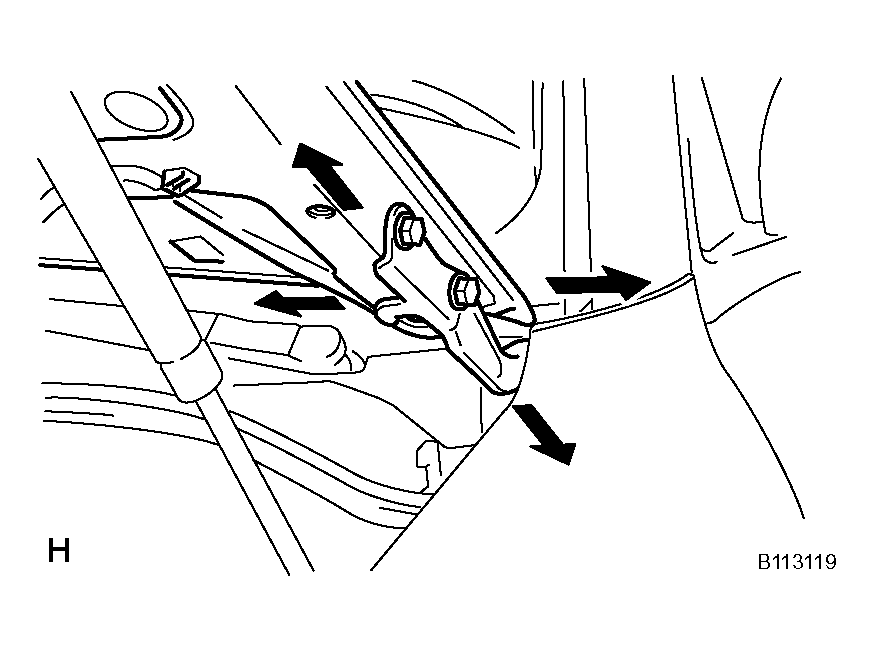

  Fig 2: Adjusting Hood In Forward/Rearward & Left/Right Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST FRONT EDGE OF HOOD IN VERTICAL DIRECTION
1. Adjust the hood by turning the cushions.

  Fig 3: Adjusting Front Edge Of Hood In Vertical Direction
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST HOOD LOCK
1. Adjust the lock by loosening the bolts.

  Fig 4: Adjusting Hood Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
