Front Door: Disassembly
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures for the LH side and RH side.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag activation.
- REMOVE FRONT DOOR FRAME BRACKET GARNISH LOWER
- Using a screwdriver, remove the lower frame bracket garnish.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, remove the lower frame bracket garnish.

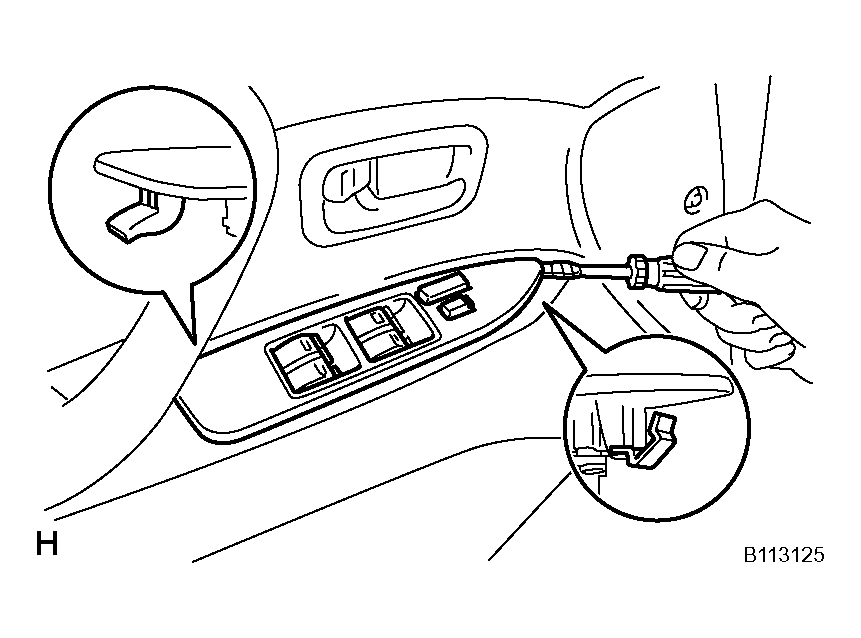

- REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
- Using a screwdriver, remove the power window switch as shown in Fig 2.
HINT:
Tape the screwdriver tip before use.
- Disconnect the connector.
- Using a screwdriver, remove the power window switch as shown in Fig 2.
- REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL
- Using a screwdriver, remove the No. 2 door inside handle bezel as shown in Fig 3.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, remove the No. 2 door inside handle bezel as shown in Fig 3.
- REMOVE NO. 1 DOOR INSIDE HANDLE BEZEL
- Remove the screw.
- Using a screwdriver, remove the No. 1 door inside handle bezel as shown in Fig 4.
HINT:
Tape the screwdriver tip before use.
- REMOVE FRONT DOOR COURTESY LIGHT ASSEMBLY
- Using a screwdriver, remove the door courtesy light, then disconnect the connector.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, remove the door courtesy light, then disconnect the connector.

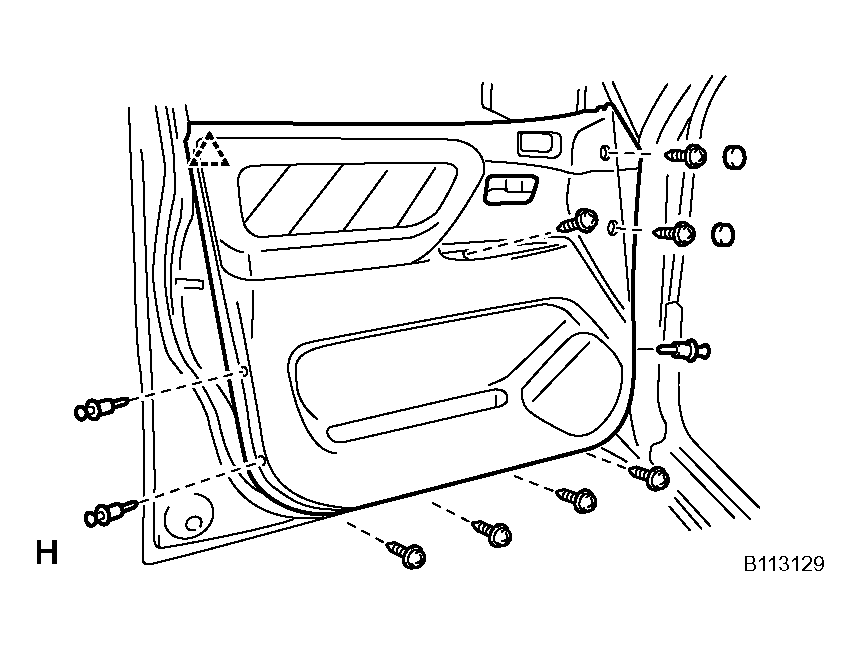

- REMOVE FRONT DOOR TRIM BOARD SUBASSEMBLY
- Remove the 2 caps and 7 screws.
- Remove the 3 clips.
- Insert a screwdriver between the door and the door trim to pry the trim.NOTE: Be careful not to damage the door and the door trim.
HINT:
Tape the screwdriver tip before use.
- Pull the trim upward to remove it.
- REMOVE FRONT DOOR INSIDE HANDLE SUBASSEMBLY
- Remove the screw and inside handle.
- Disconnect the 2 control cables from the inside handle as shown in Fig 7.
- REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
- Disconnect the connector, and then remove the bolt and the tweeter speaker.
- REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
- Disconnect the connector, and then remove the 3 bolts and outside rear view mirror.

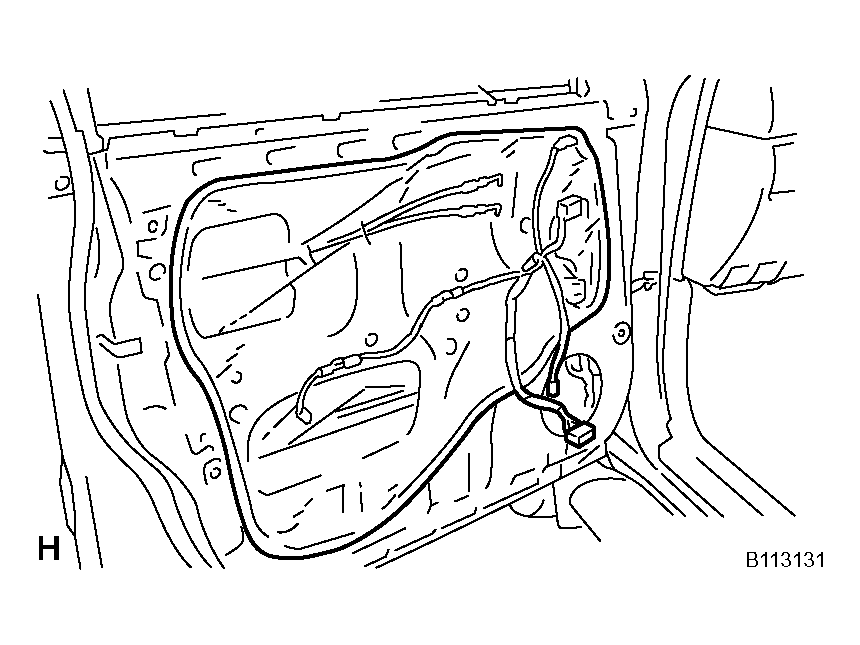

- REMOVE FRONT DOOR SERVICE HOLE COVER
- Remove the clamps and wire harness.
- Remove the service hole cover.NOTE: Do not tear the cover.
HINT:
At the time of reassembly, pull out the 2 control cables and wire harness through the service hole cover.

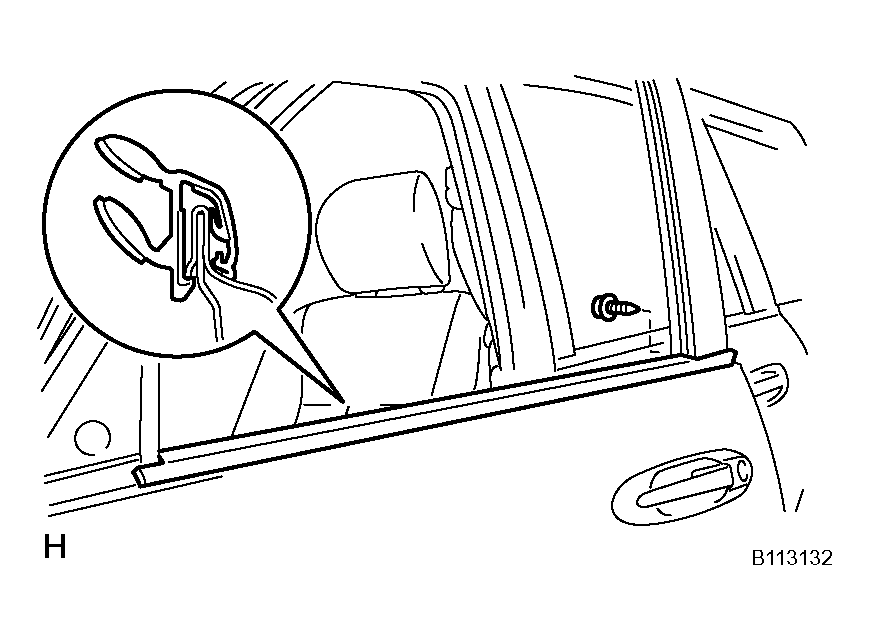

- REMOVE FRONT DOOR BELT MOLDING ASSEMBLY
- Remove the screw.
- Using a scraper, remove the door belt molding.
HINT:
Tape the screwdriver tip before use.
- REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
- Open the door glass until the bolts appear in the service hole.
- Remove the 2 bolts and the door glass.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
NOTE: Do not damage the door glass.HINT:
Pull the glass upward to remove it.
- REMOVE FRONT NO. 1 DOOR SPEAKER ASSEMBLY
- Remove the 3 screws and speaker, and then disconnect the connector.
- REMOVE FRONT DOOR GLASS RUN
- REMOVE FRONT DOOR FRAME SUB-ASSEMBLY REAR LOWER
- Remove the bolt and frame sub-assembly rear lower.

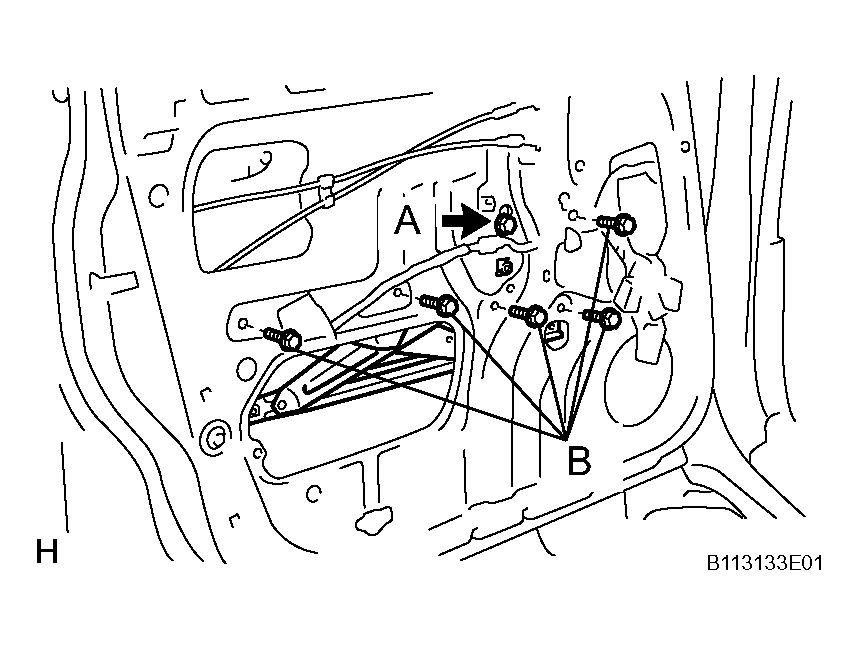

- REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY
- Disconnect the connector, and then remove the 5 bolts for bolt B.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Loosen the bolt and the window regulator for bolt A.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
HINT:
- Remove the regulator through the service hole.
- At the time of reassembly, apply MP grease to the window regulator.
NOTE: At the time of reassembly, do not apply grease to the spring of the window regulator.
- Disconnect the connector, and then remove the 5 bolts for bolt B.

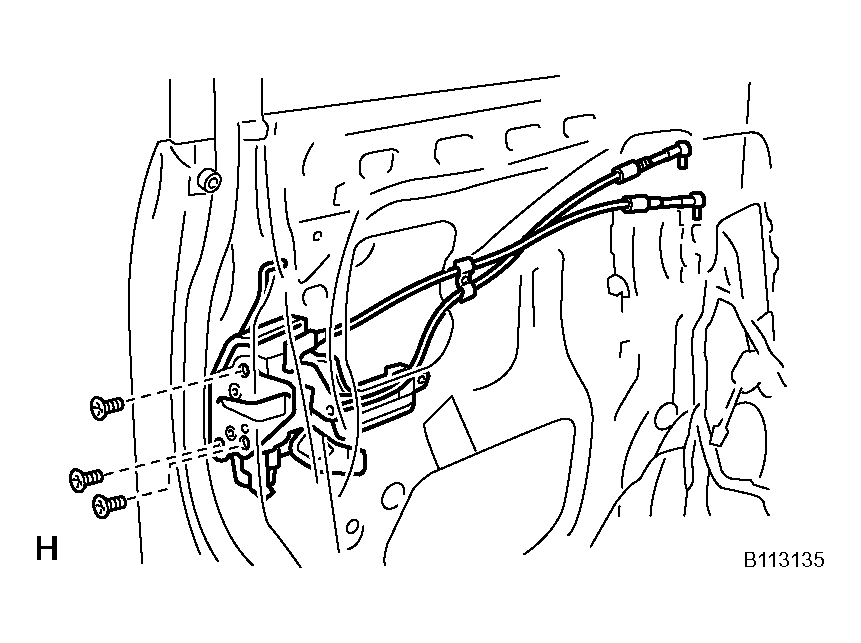

- REMOVE FRONT DOOR LOCK ASSEMBLY
- Remove the clip and the door lock link protector.
- Disconnect the connector.
- Disconnect the 2 links from the outside handle and door lock cylinder.
- Using a "torx" wrench, remove the 3 screws and the door lock through the service hole.
- "Torx" wrench: T30 (Part No. 09042-00010 or locally manufactured tool)
- Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
HINT:
At the time of reassembly:
- Apply adhesive to the 3 screws.
Adhesive:
Part No. 08833-00070, THREE BOND 1324 or equivalent.
- Remove the protector, and apply MP grease to the sliding and rotating parts of the door lock.
- REMOVE OUTSIDE HANDLE WITH DOOR LOCK CYLINDER
- Remove the 2 bolts and outside handle with the door lock cylinder.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
- Remove the bolt and door lock cylinder from the outside handle.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
- Remove the 2 bolts and outside handle with the door lock cylinder.
