Back Door: Adjustment

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
1. Loosen the door's hinge bolts and adjust the door's position.
2. Tighten the door's hinge bolts after the adjustment.
  Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

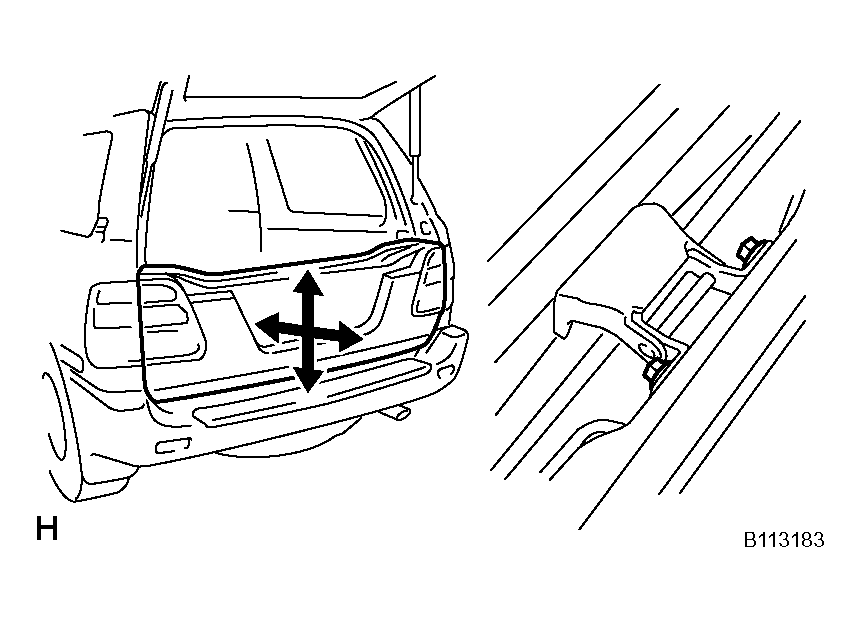

  Fig 1: Adjusting Door In Left/Right And Vertical Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
1. Loosen the door's hinge nuts and adjust the door's position.
2. Tighten the door's hinge nuts after the adjustment.
  Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

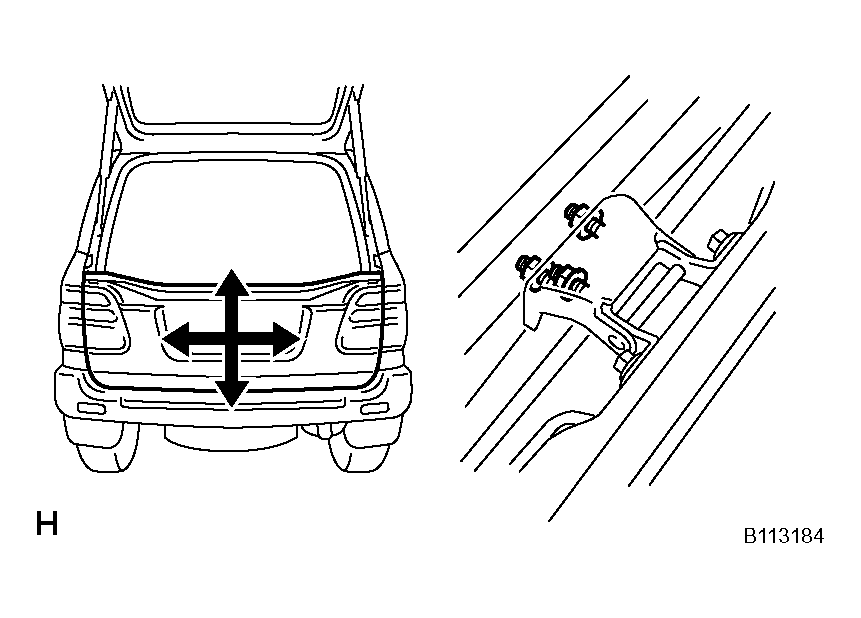

  Fig 2: Removing Door In Forward/Rearward & Vertical Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST BACK DOOR LOCK STRIKER
1. Check that the door fit and door linkages are adjusted correctly.
2. Using a "torx" wrench, loosen the door lock striker mounting screws.
  - "Torx" wrench: T40 (Part No. 09042-00020 or locally manufactured tool)
  - Torque: 11.5 N*m (117 kgf*cm, 8 ft.*lbf)
3. Using a plastic-faced hammer, tap the door lock striker to adjust.

  Fig 3: Adjusting Back Door Lock Striker
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST LOWER STOPPER
1. Loosen the stopper mounting bolt to adjust.
2. Use the same manner described above to the side.

  Fig 4: Adjusting Lower Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
1. Loosen the door's hinge bolts and adjust the door's position.
2. Tighten the door's hinge bolts after the adjustment.
  Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

  Fig 5: Removing Door In Forward/Rearward & Vertical Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
1. Loosen the door's hinge bolts and nut to adjust the door's position.
2. Tighten the door's hinge bolts and nuts to after the adjustment.
  Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)

  Fig 6: Adjusting Door In Left/Right & Vertical Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST DOOR LOCK STRIKER
1. Check that the door fit and door linkages are adjusted correctly.
2. Using a "torx" wrench, loosen the door lock striker mounting screws.
  - "Torx" wrench: T40 (Part No. 09042-00020 or locally manufactured tool)
  - Torque: 11.5 N*m (117 kgf*cm, 8 ft.*lbf)
3. Using a plastic-faced hammer, tap the door lock striker to adjust.

  Fig 7: Adjusting Door Lock Striker
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
