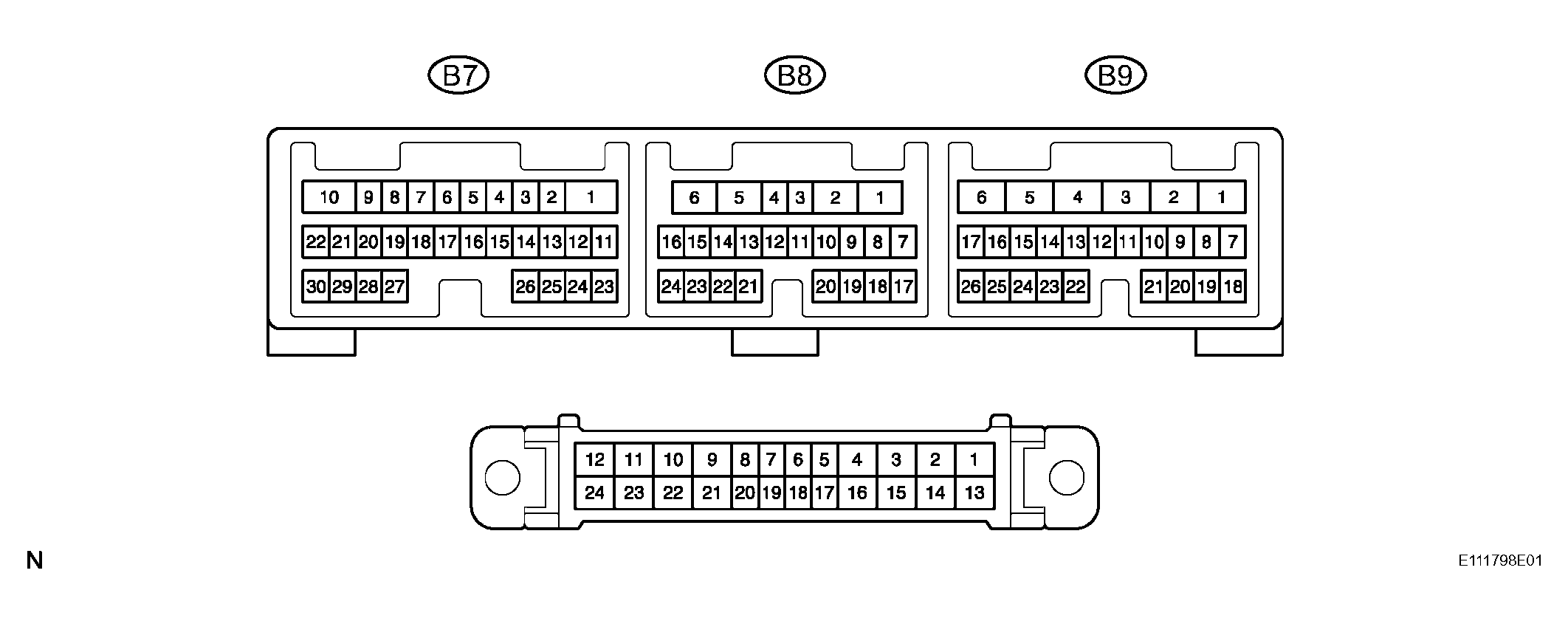

- CHECK BODY ECU BODY ECU
Symbols (Terminal No.) Wiring Color Condition Specified Condition PRG (B8-3) - GND1 (4) V - Body ground Communication circuit (door control receiver) - PRG (B8-3) - GND2 (16) R-B - Body ground Communication circuit (door control receiver) - RDA (B8-4) - GND1 (4) L - Body ground Communication circuit (door control receiver) - RDA (B8-4) - GND2 (16) L - Body ground Communication circuit (door control receiver) -
