- CHECK TRANSPONDER KEY ECU ASSEMBLY
- Disconnect the T19 ECU connector.
- Measure the resistance and voltage of the wire harness side connector.TRANSPONDER KEY ECU (1 OF 2)
Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition GND (T19-14) - Body ground W-B - Body ground Ground Always Below 1 Ω +B (T19-1) - GND (T19-14) L-W - W-B Power source supply Always 10 to 14 V KSW (T19-10) - GND (T19-14) R-B - W-B Unlock warning switch Key inserted in ignition key cylinder Below 1 Ω No key in ignition key cylinder 10 kΩ or higher If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the T19 ECU connector.
- Measure the resistance and voltage of the connector.TRANSPONDER KEY ECU (2 OF 2)
Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition GND (T19-14) - Body ground W-B - Body ground Ground Always Below 1 Ω VC5 (T19-8) - GND (T19-14) Y - W-B Power source No key in ignition key cylinder Below 1 V Key inserted 10 to 14 V TXCT (T19-12) - GND (T19-14) V-G - W-B Key code output signal No key in ignition key cylinder Below 1 V Key inserted Pulse generation (see WAVEFORM 1 (REFERENCE) ) CODE (T19-11) - GND (T19-14) L-B - W-B Demodulated signal of key code data No key in ignition key cylinder Below 1 V Key inserted Pulse generation (see WAVEFORM 2 (REFERENCE) ) EFIO (T19-6) - GND (T19-14) W - W-B ECM output signal Ignition switch OFF Below 1 V Ignition switch ON Pulse generation (see WAVEFORM 3 (REFERENCE) ) EFII (T19-7) - GND (T19-14) Y - W-B ECM input signal Ignition switch OFF Below 1 V Ignition switch ON Pulse generation (see WAVEFORM 4 (REFERENCE) ) KSW (T19-10) - GND (T19-14) R-B - W-B Unlock warning switch Key inserted Below 1 V No key in ignition key cylinder 10 to 14 V IND (T19-3) - GND (T19-14) G-R - W-B Security indicator signal Key inserted Below 1 V No key in ignition key cylinder Pulse generation If the result is not specified, the ECU may have a malfunction.
- Inspect using an oscilloscope.
- Waveform 1 (Reference)WAVEFORM 1 (REFERENCE)
Item Content Symbols (Terminal No.) TXCT (T19-12) - GND (T19-14) Tool Setting 5 V/DIV., 20 msec./DIV. Condition Key inserted - Waveform 2 (Reference)WAVEFORM 2 (REFERENCE)
Item Content Symbols (Terminal No.) CODE (T19-11) - GND (T19-14) Tool Setting 5 V/DIV., 20 msec./DIV. Condition Key inserted - Waveform 3 (Reference)WAVEFORM 3 (REFERENCE)
Item Content Symbols (Terminal No.) EFIO (T19-6) - GND (T19-14) Tool Setting 10 V/DIV., 50 msec./DIV. Condition Ignition switch ON - Waveform 4 (Reference)WAVEFORM 4 (REFERENCE)
Item Content Symbols (Terminal No.) EFII (T19-7) - GND (T19-14) Tool Setting 10 V/DIV., 50 msec./DIV. Condition Ignition switch ON
- Waveform 1 (Reference)
- CHECK ECM

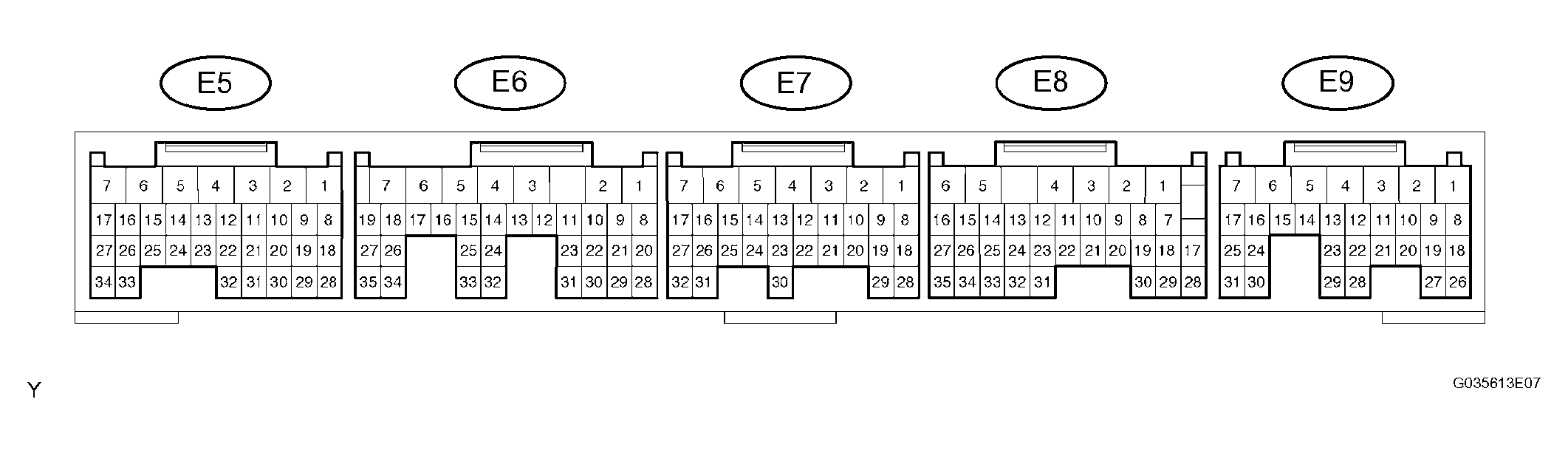

- Measure the resistance and voltage of the connectors.ECM
Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition E1 (E7-1) - Body ground BR - Body ground Ground Always Below 1 Ω BATT (E9-3) - E1 (E7-1) B-R - BR Battery (for measuring battery voltage and for ECM memory) Always 10 to 14 V +BM (E9-7) - E1 (E7-1) Y-B BR Power source of ECM Ignition switch OFF Below 1 V Ignition switch ON 10 to 14 V +B (E9-1) - E1 (E7-1) B-Y-BR Power source of ECM Ignition switch OFF Below 1 V Ignition switch ON 10 to 14 V +B2 (E9-2) - E1 (E7-1) B-Y - BR Power source of ECM Ignition switch OFF Below 1 V Ignition switch ON 10 to 14 V IGSW (E9-9) - E1 (E7-1) B-R-BR Ignition power supply of ECM Ignition switch OFF Below 1 V Ignition switch ON 10 to 14 V IMI (E8-16) - E1 (E7-1) W-BR Transponder key ECU input signal Ignition switch OFF Below 1 V Ignition switch ON Pulse generation (see WAVEFORM 1 (1 OF 2) ) IMO (E8-15) - E1 (E7-1) Y-BR Transponder key ECU output signal Ignition switch OFF Below 1 V Ignition switch ON Pulse generation (see WAVEFORM 1 (2 OF 2) ) If the result is not as specified, the ECM may have a malfunction.
- Inspect using an oscilloscope.
- Waveform 1 (Reference)WAVEFORM 1 (1 OF 2)
Item Content Symbols (Terminal No.) IMI (E8-16) - E1 (E7-1) Tool Setting 10 V/DIV., 50 msec./DIV. Condition Ignition switch ON - Waveform 1 (Reference)WAVEFORM 1 (2 OF 2)
Item Content Symbols (Terminal No.) IMO (E8-15) - E1 (E7-1) Tool Setting 10 V/DIV., 50 msec./DIV. Condition Ignition switch ON
- Waveform 1 (Reference)
- Measure the resistance and voltage of the connectors.
