DTC B2780: Push Switch/Key Unlock Warning Switch Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

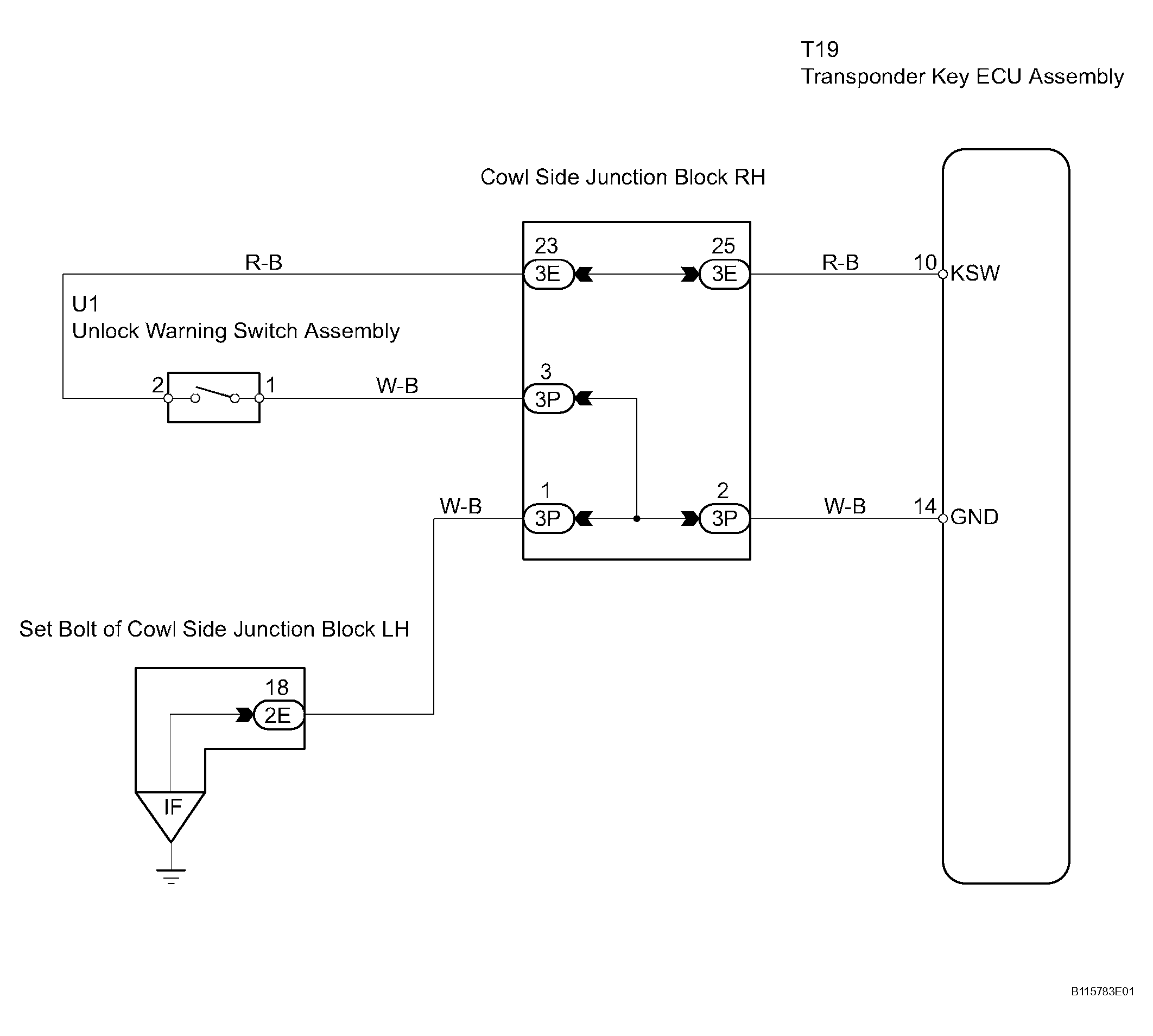

Fig 1: Push Switch/Key Unlock Warning Switch Malfunction Wiring Diagram
G04438455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
