Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT CONTROL VALVE SOLENOID AND HEIGHT CONTROL ACCUMULATOR SOLENOID

Disconnect the control valve solenoid connector.

Measure the resistance between terminals 2 and 1, 3, 4, 5 of the control valve solenoid connector.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
1 - 2	Below 1 Ω
2 - 3	Below 1 Ω
2 - 4	Below 1 Ω
2 - 5	Below 1 Ω

Disconnect the accumulator solenoid connector from the height control accumulator.

Measure the resistance between terminals 1 and 2 of the accumulator solenoid connector.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
1 - 2	Below 1 Ω

NG: REPLACE CONTROL VALVE ASSEMBLY OR HEIGHT CONTROL ACCUMULATOR SOLENOID

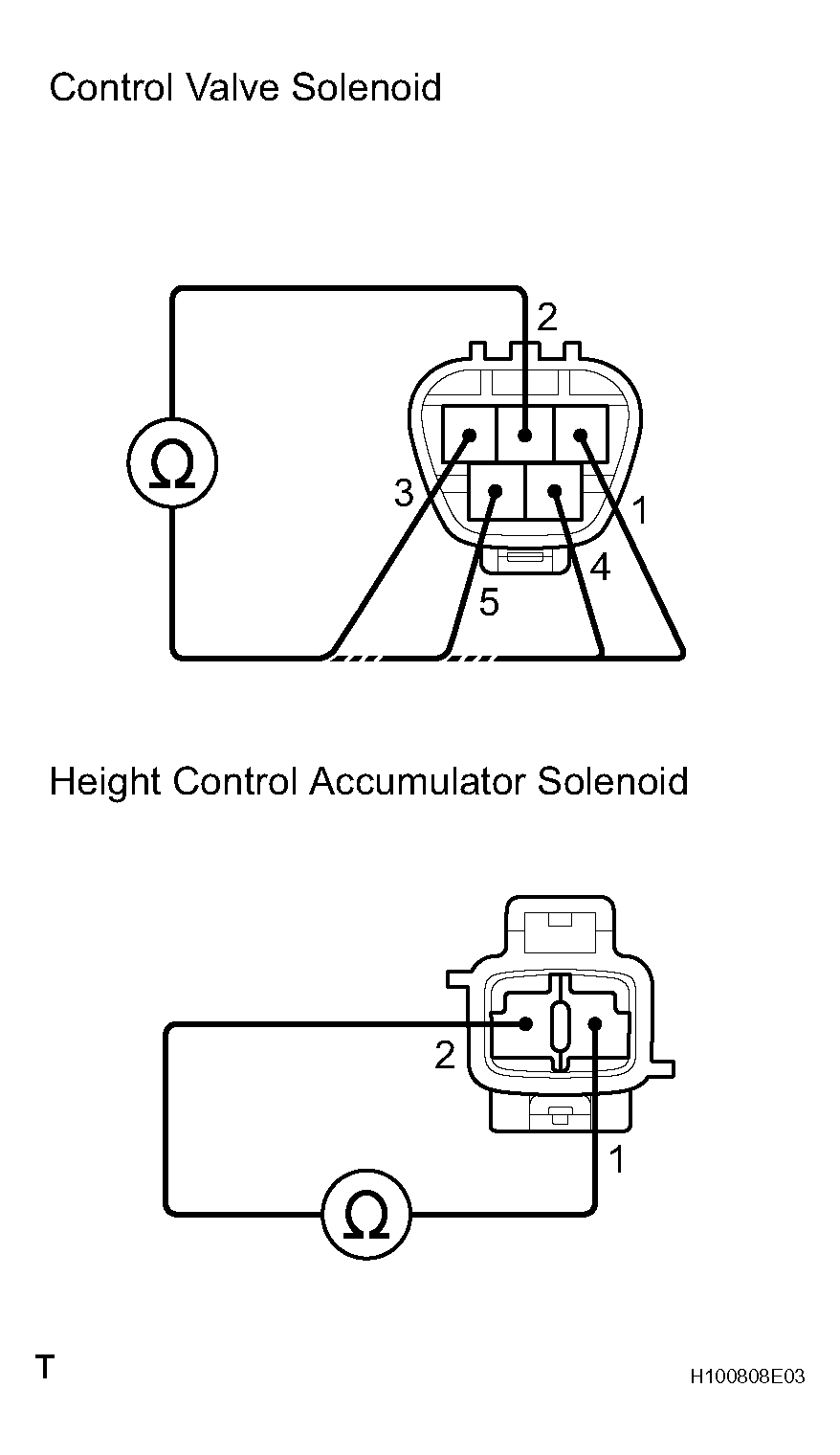

Fig 1: Measuring Resistance Between Terminals 1 & 2 Of Accumulator Solenoid Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

CHECK WIRE HARNESS (SUSPENSION CONTROL ECU - CONTROL VALVE ASSEMBLY AND HEIGHT CONTROL ACCUMULATOR AND FLUID PRESSURE SENSOR)
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP

CHECK FLUID PRESSURE SENSOR

Start the engine and push the vehicle height select switch to select the "N" mode.

Measure the voltage between terminals 2 and 3 of the fluid pressure sensor connector.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
F20-2 - F20-3	1.48 to 1.85 V

NG: REPLACE FLUID PRESSURE SENSOR

Fig 2: Measuring Voltage Between Terminals 2 & 3 Of Fluid Pressure Sensor Connector

OK: REPLACE SUSPENSION CONTROL ECU
