DTC C1751/51: Continuous Electric Current to Height Control Compressor: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

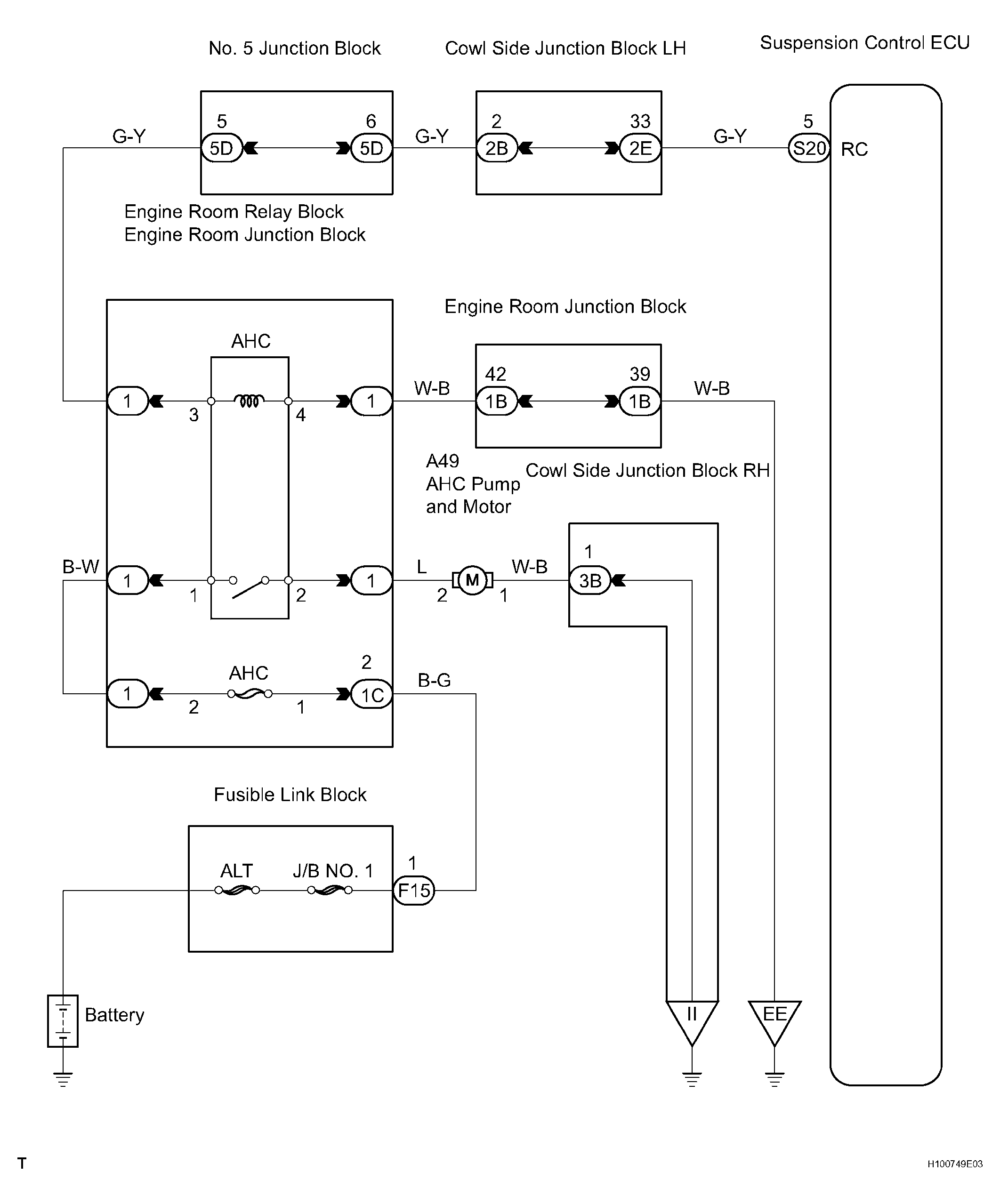

Fig 1: Electric Current To Height Control Compressor Wiring Diagram
G04437443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
