Inspection Procedure
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
When using the intelligent tester, start from 1. When not using the intelligent tester, start from 2.
- PERFORM ACTIVE TEST BY INTELLIGENT TESTER (AHC MOTOR RELAY)
- Connect the intelligent tester to the DLC3.
- Turn the ignition switch ON and push the intelligent tester main switch ON.
- Select the ACTIVE TEST mode on the intelligent tester.
- Check that the operation sound of the AHC motor relay when operating it with the intelligent tester.
OK:
The operation sound of the AHC motor relay should be heard.
NG: Go to step 3
OK: REPLACE SUSPENSION CONTROL ECU
- CHECK SUSPENSION CONTROL ECU

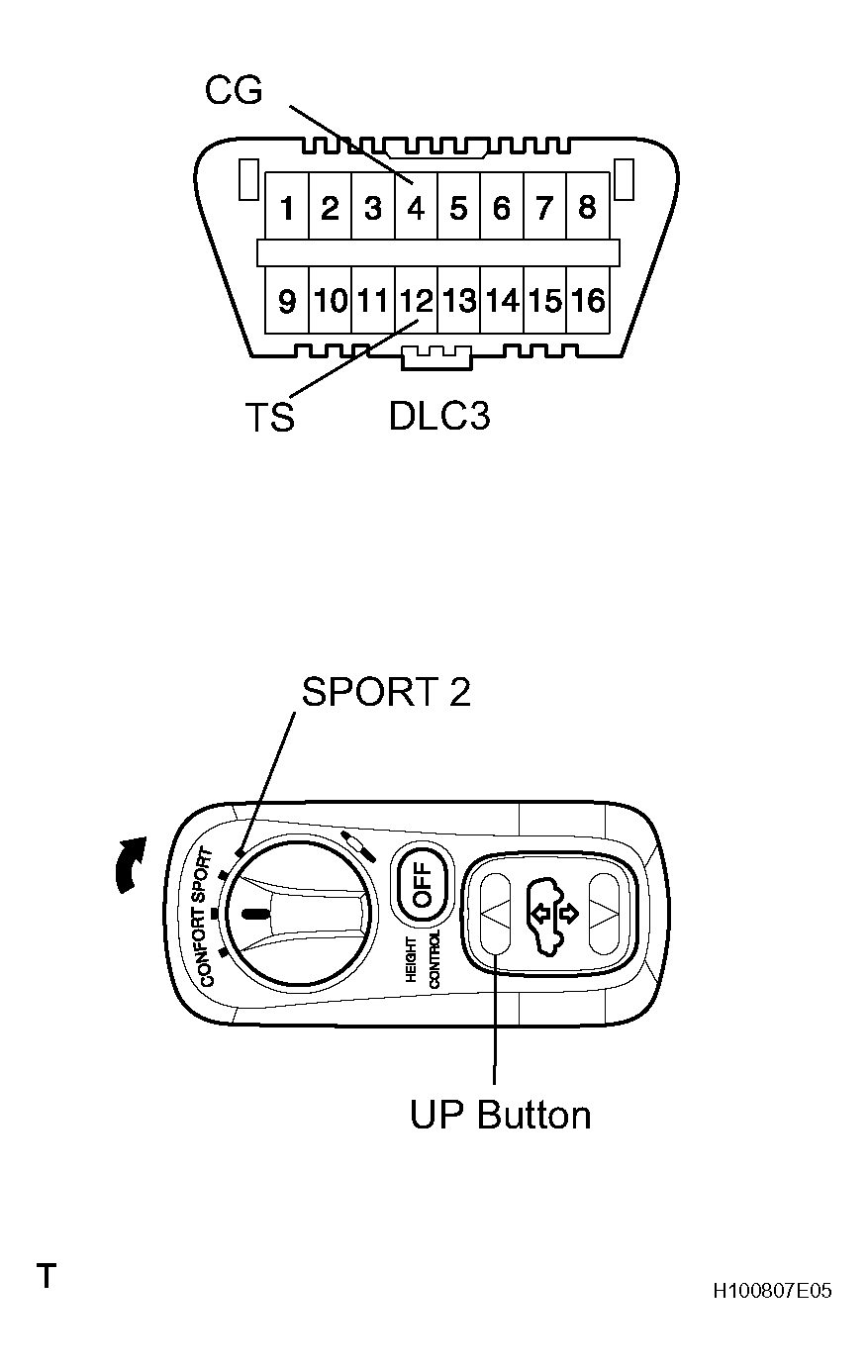

- Using SST, connect terminals 12 (TS) and 4 (CG) of the DLC3.
SST 09843-18040
- Push the DOWN button of the height select switch 5 times or more within 5 seconds after starting the engine.
HINT:
At this time the height control OFF indicator light flashes at 0.25 second intervals.
- Change the damping mode select switch to the SPORT 2 position.
- Push the UP button of the height select switch, then check the operation sound of the AHC motor relay.
OK:
The operation sound of the AHC motor relay should be heard.
OK: REPLACE SUSPENSION CONTROL ECU
NG: GO TO NEXT STEP
- Using SST, connect terminals 12 (TS) and 4 (CG) of the DLC3.
- CHECK WIRE HARNESS (ENGINE ROOM JUNCTION BLOCK (AHC MOTOR RELAY) - BODY GROUND)
- Remove the AHC motor relay from the engine room junction block.
- Measure the voltage between terminal 1 of the engine room junction block (for AHC motor relay) and body ground.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition 1 - Body ground 10 to 14 V
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: GO TO NEXT STEP

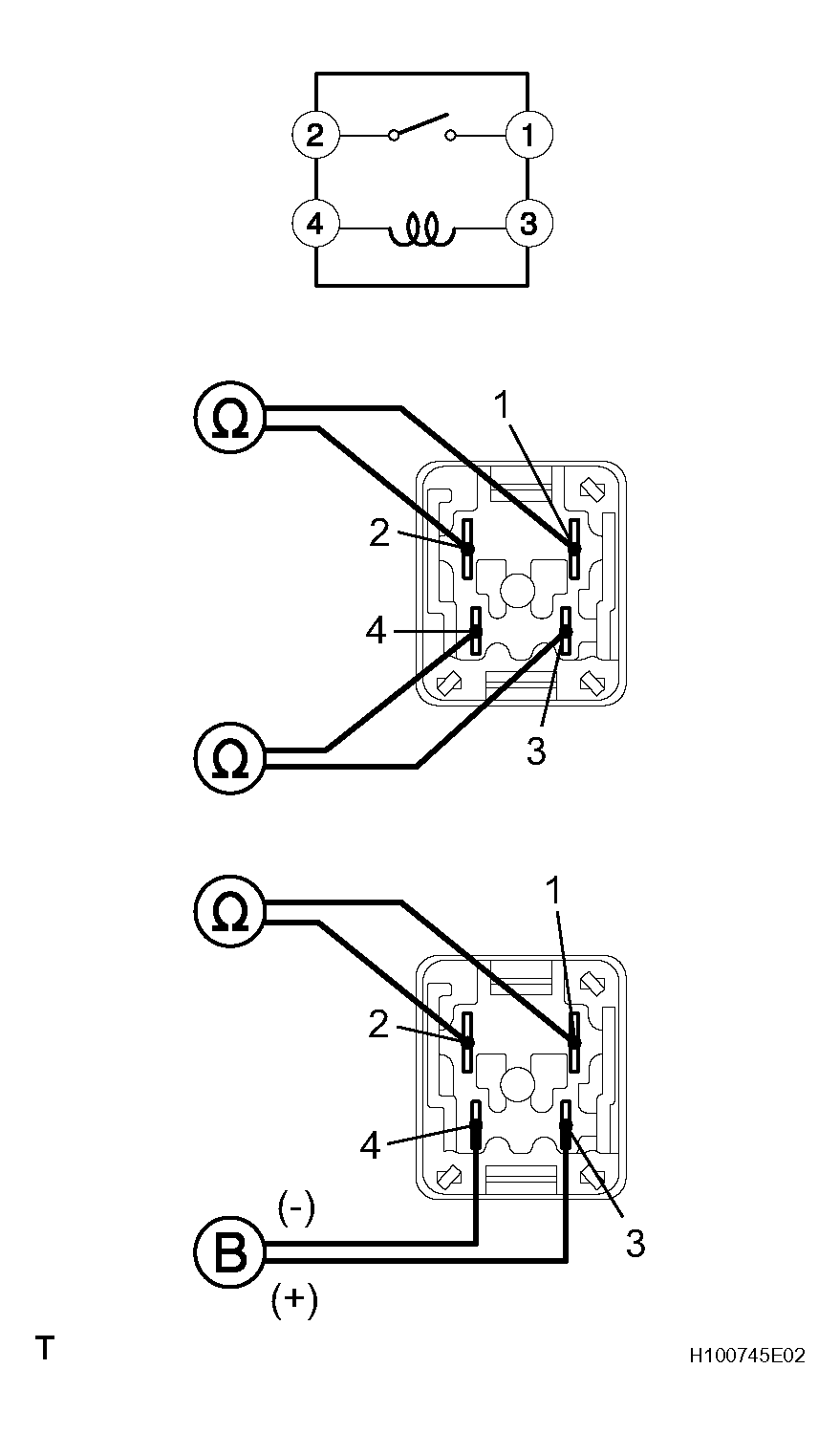

- INSPECT AHC MOTOR RELAY (Marking: AHC Relay)
- Remove the AHC motor relay from the engine room junction block.
- Measure the resistance of the relay.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition 3 - 4 Reference value 62 Ω 1 - 2 10 kΩ or higher - Apply battery positive voltage between terminals 3 and 4.
- Measure the resistance of the relay.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Specified Condition 1 - 2 Below 1 Ω
NG: REPLACE AHC MOTOR RELAY
OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (SUSPENSION CONTROL ECU - AHC MOTOR RELAY AND AHC PUMP AND MOTOR)
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE SUSPENSION CONTROL ECU
