DTC C1721/21, C1723/23: Front Damping Force Control Actuator Circuit Malfunction; Rear Damping Force Control Actuator Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

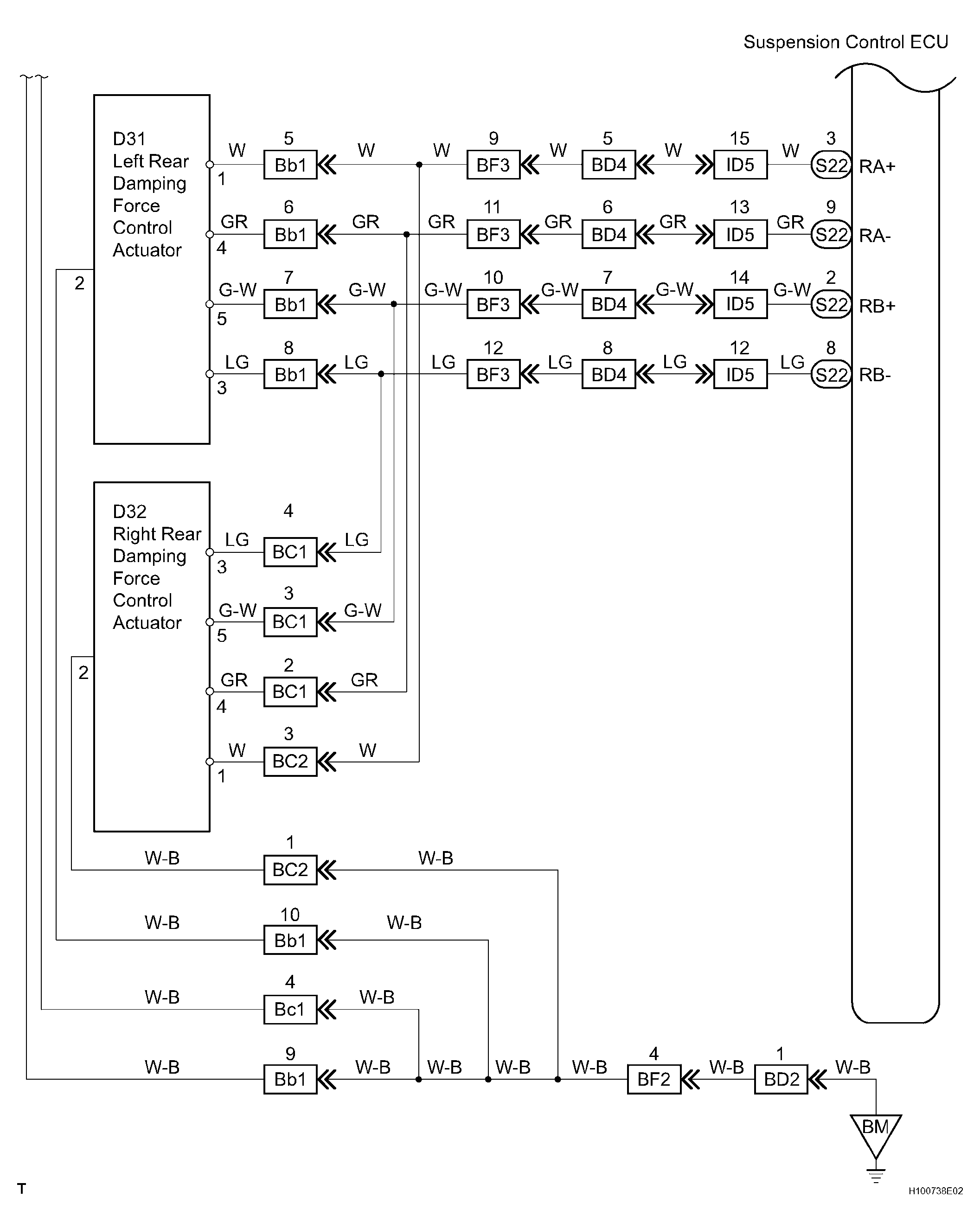

Fig 1: Corresponds To Rear Damping Force Control Actuator Circuit Wiring Diagram (1 Of 2)

Fig 2: Corresponds To Rear Damping Force Control Actuator Circuit Wiring Diagram (2 Of 2)
