Front Upper Suspension Arm: Replacement

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REPLACE FRONT SUSPENSION UPPER ARM BUSH
1. Using a chisel and hammer, pry up the flange of the bush.
2. Using SST, a steel plate and press, press out the bush.
  SST 09527-17011, 09710-28021 (09710-08031), 09950-00020

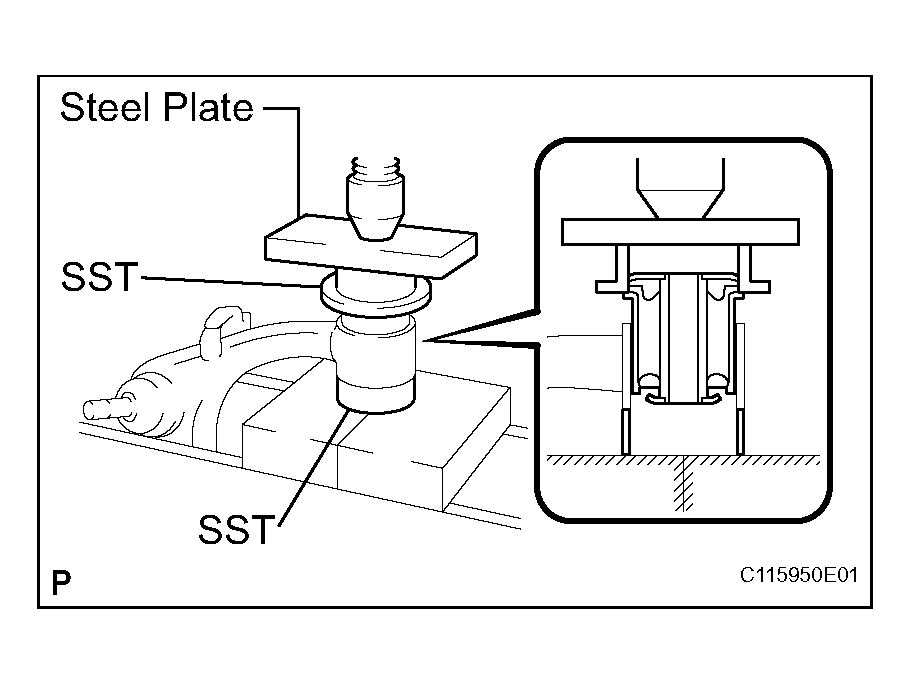

  Fig 1: Pressing Out Bush Using SST, Steel Plate & Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, a steel plate and press, press in a new bush.
  SST 09316-20011, 09710-28012 (09710-07062)

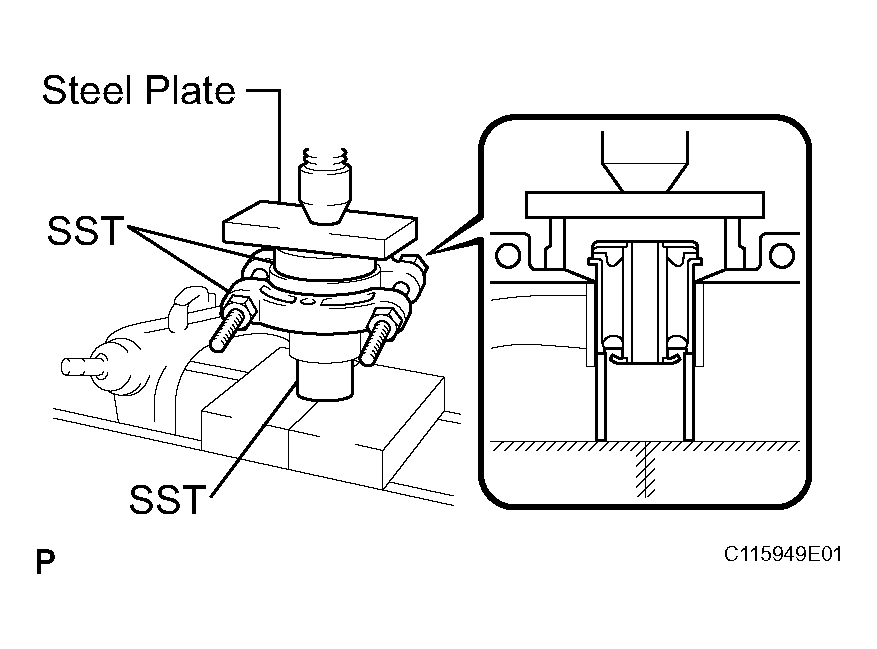

  Fig 2: Pressing In New Bush Using SST, Steel Plate & Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE FRONT UPPER BALL JOINT DUST COVER
1. Remove the wire and dust cover.
2. Coat the ball joint with grease in the boot kit.
3. Install a new dust cover and wire.

  Fig 3: Installing New Dust Cover & Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
