Front Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE UNDER COVER
REMOVE FRONT STABILIZER LINK ASSEMBLY LH
1. Remove the bolt, nut, 2 retainers, 2 cushions and stabilizer bar link.
  Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf) for bolt 25 N*m (250 kgf*cm, 18 ft.*lbf) for nut
REMOVE FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.

Fig 1: Removing Bolt, Nut, Retainers, Cushions & Stabilizer Bar Link
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT STABILIZER BAR
1. Remove the 4 bolts, 2 brackets and 2 cushions.
  Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)
2. Remove the stabilizer bar.

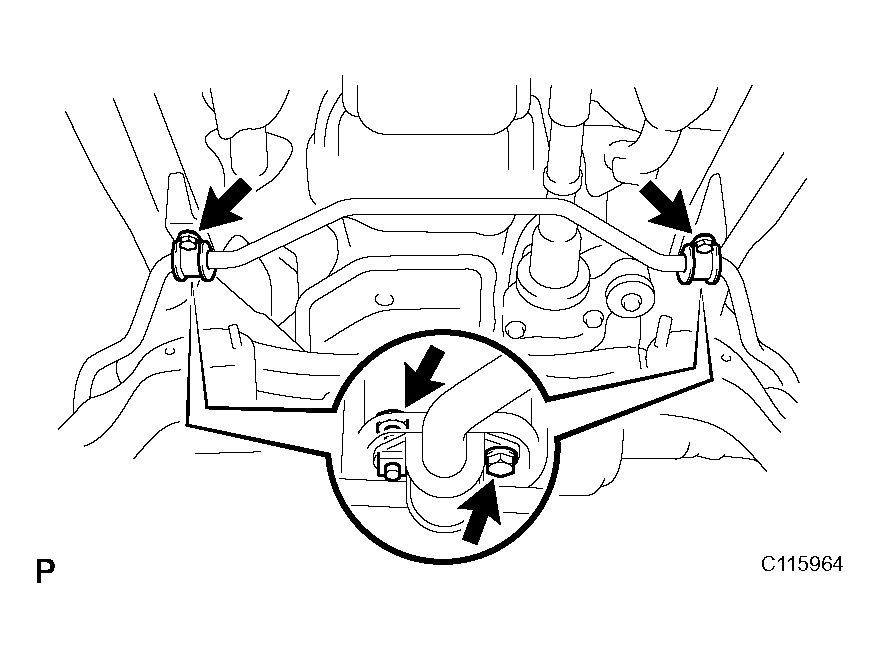

  Fig 2: Removing Bolts, Brackets & Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
