Headlight Dimmer Switch: Inspection
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT HEADLIGHT DIMMER SWITCH

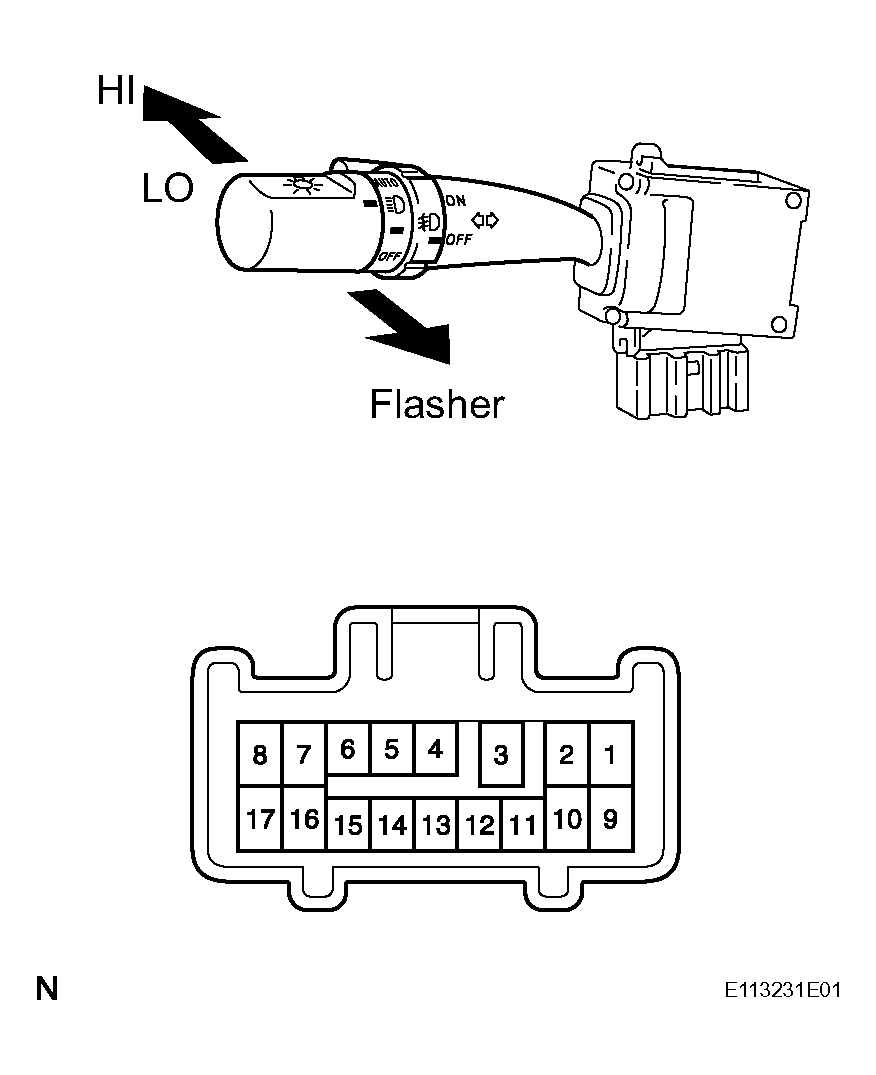

- Measure the continuity of the switch.
Standard continuity
TESTER CONNECTION AND SPECIFIED CONDITION TABLE
| Tester Connection |
Condition |
Specified Condition |
| 7 - 16 |
High beam |
Continuity |
| 16 - 17 |
Low beam |
| 7 - 8 - 16 |
Flash |
If the result is not as specified, replace the headlight dimmer switch assembly.
