Front Seat Inner Belt Assembly: Inspection
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

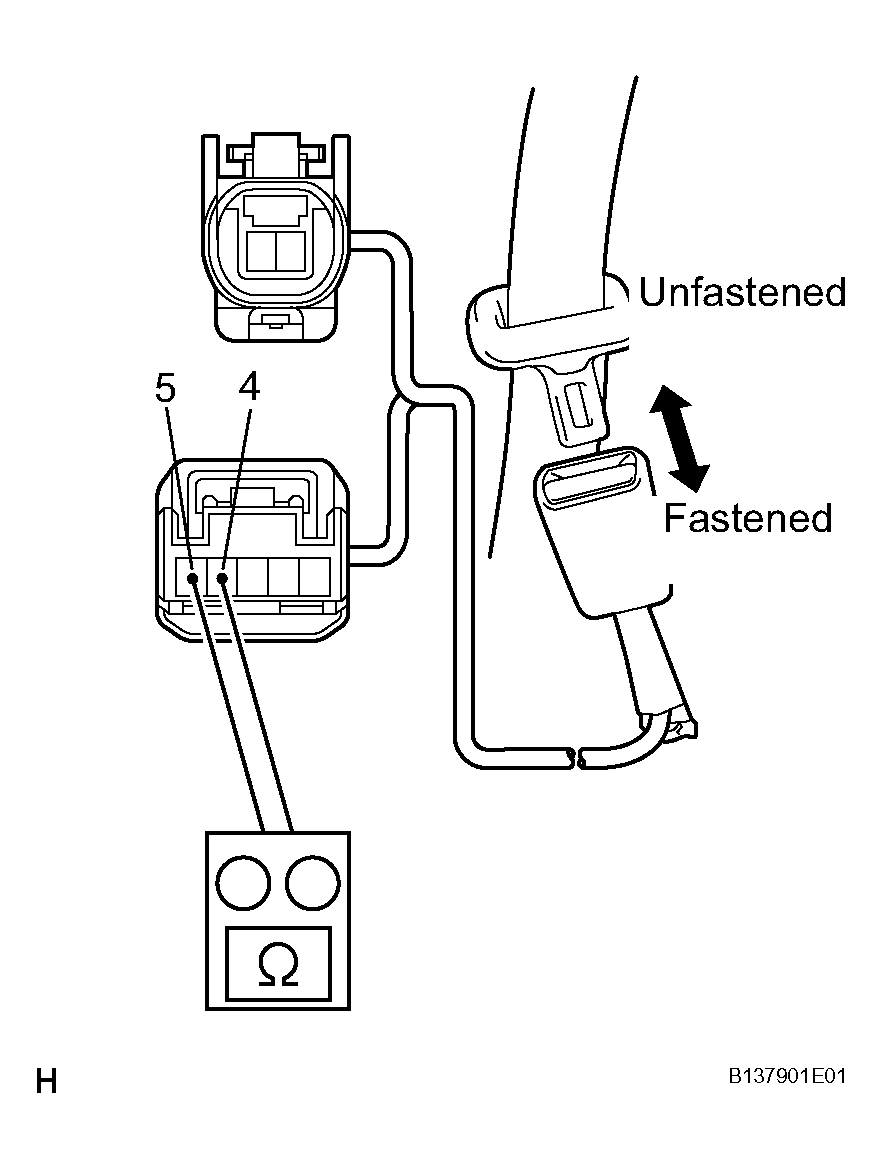

- Measure the resistance of the buckle switch.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION
| Tester Connection |
Condition |
Specified Condition |
| 4 - 5 |
Seat belt is unfastened |
Below 1 Ω |
| 4 - 5 |
Seat belt is fastened |
1 MΩ or higher |
If the result is not as specified, replace the belt assembly.
