Front Drive Shaft: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE FRONT WHEEL
Torque: 131 N*m (1,340 kgf*cm, 97 ft.*lbf)
REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY
1. Remove the bolt and disconnect the flexible hose from the steering knuckle.
  Torque: 28 N*m (290 kgf*cm, 21 ft.*lbf)
2. Remove the 2 bolts, washers and brake cylinder.
  Torque: 123 N*m (1,250 kgf*cm, 91 ft.*lbf)
3. Support the brake cylinder securely.

  Fig 1: Removing Bolts, Washers & Brake Cylinder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DRIVE SHAFT SNAP RING
1. Using a screwdriver and hammer, remove the grease cap from the flange.
2. Using snap ring pliers, remove the snap ring.

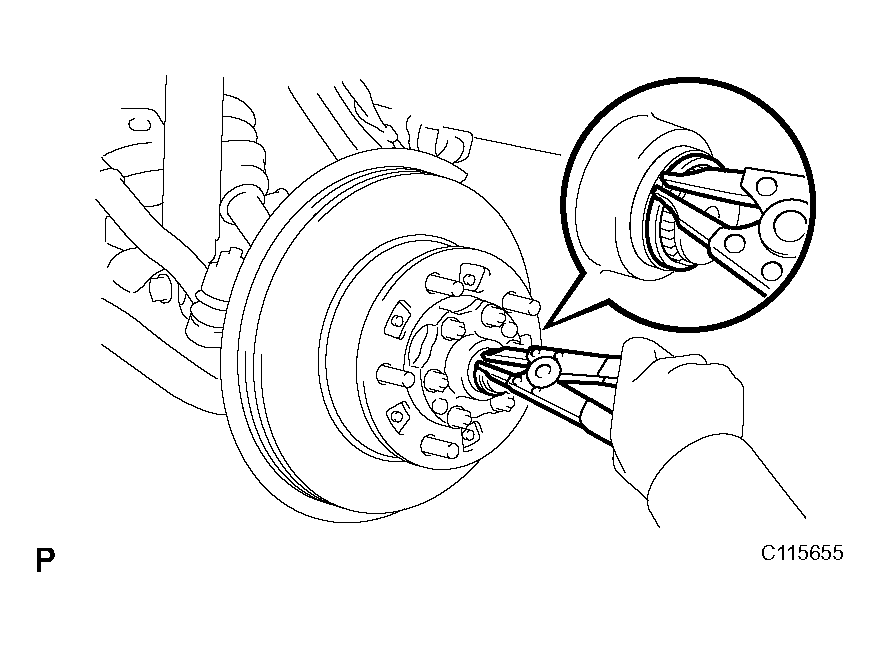

  Fig 2: Removing Snap Ring Using Snap Ring Pliers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT ABS SPEED SENSOR AND WIRE HARNESS
1. Remove the 3 bolts and disconnect the ABS speed sensor and wire harness.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf) for A

  13 N*m (130 kgf*cm, 10 ft.*lbf) for B

  28 N*m (290 kgf*cm, 21 ft.*lbf) for C

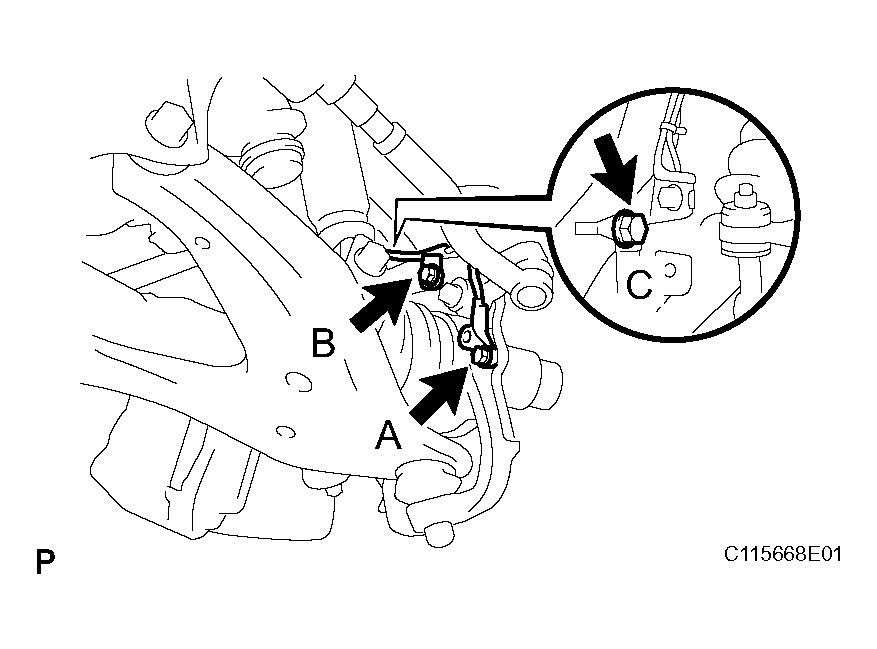

  Fig 3: Removing Bolts & ABS Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT STEERING KNUCKLE ARM
1. Remove the 2 bolts and disconnect the steering knuckle arm.
  Torque: 147 N*m (1,500 kgf*cm, 108 ft.*lbf)

  HINT:

  At the time of installation, refer to the following items.
  - Clean the threads of the 2 bolts and steering knuckle with toluene or trichloroethylene.
  - Apply sealant to the threads of the 2 bolts.
    Sealant: Part No. 08833-00070, THREE BOND 1324 or equivalent

    Fig 4: Removing Bolts & Steering Knuckle Arm
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT STEERING KNUCKLE
1. Remove the cotter pin and nut.
  Torque: 159 N*m (1,625 kgf*cm, 117 ft.*lbf)

  HINT:

  At the time of installation, if the holes for the cotter pin are not aligned, tighten the nut further up to 60°.
2. Using SST, disconnect the steering knuckle from the lower suspension arm.
  SST 09628-62011

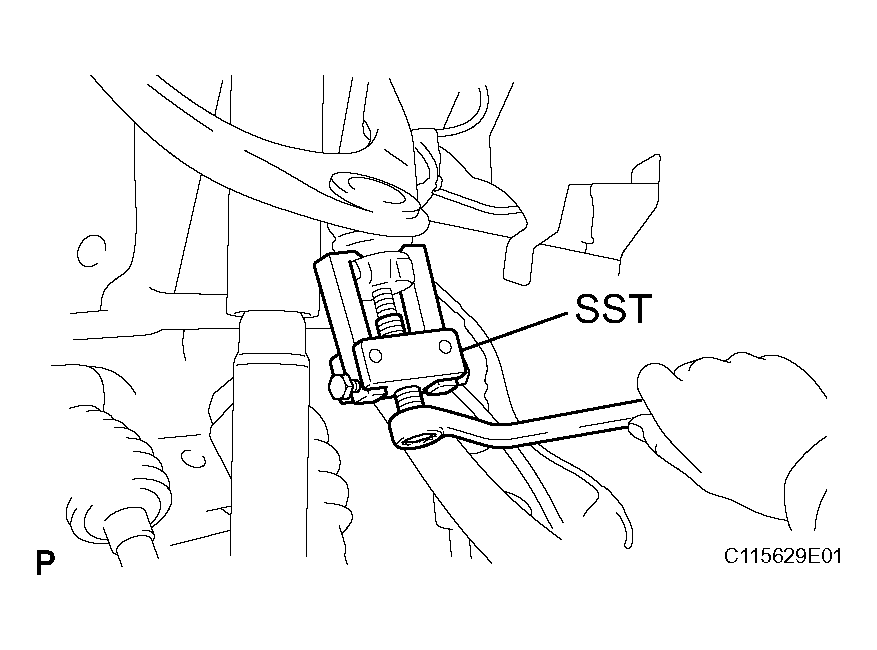

  Fig 5: Disconnecting Steering Knuckle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING KNUCKLE WITH AXLE HUB
1. Temporarily install the nut to the lower suspension arm.
2. Support the lower suspension arm with a jack.
3. Remove the cotter pin and nut.
  Torque: 110 N*m (1,125 kgf*cm, 81 ft.*lbf)

  HINT:

  At the time of installation, if the holes for the cotter pin are not aligned, tighten the nut further up to 60°.
4. Using SST, disconnect the steering knuckle from the upper suspension arm.
  SST 09628-62011
5. Remove the nut and steering knuckle with axle hub.

  Fig 6: Disconnecting Steering Knuckle From Upper Suspension Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DRIVE SHAFT ASSEMBLY
1. Using a brass bar and hammer, tap out the drive shaft.
  NOTE: Be careful not to damage the boot, dust cover and oil seal.
2. Using a screwdriver, remove the snap ring from the inboard joint tulip.
  HINT:

  At the time of installation, refer to the following items.
  - Coat the oil seal lip with MP grease.
  - Before installation, set a new snap ring with the opening side facing downward.
  - After installation, check that the drive shaft cannot be pulled out by hand.

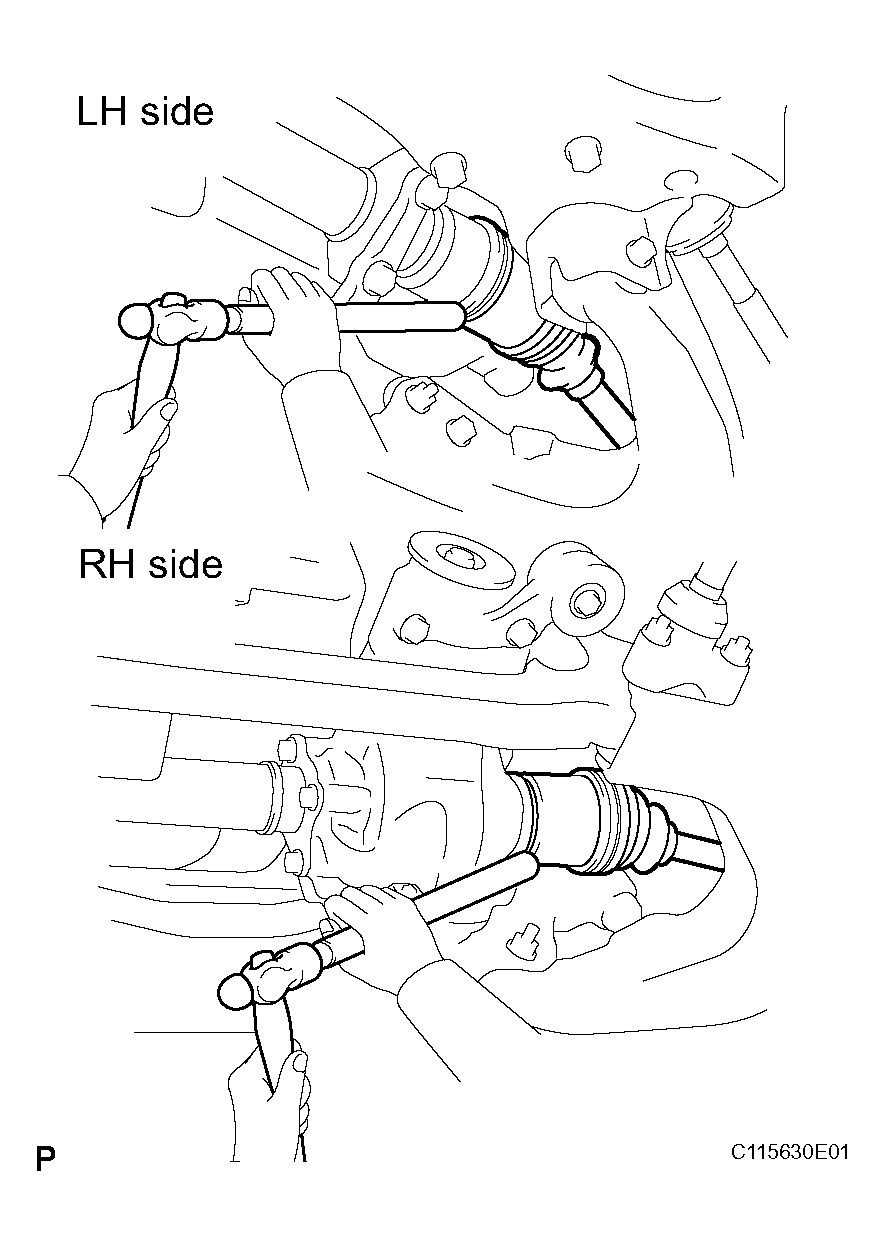

    Fig 7: Tapping Out Drive Shaft
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FRONT DRIVE SHAFT ASSEMBLY
1. Check to see that there is no remarkable play in the outboard joint.
2. Check to see that the inboard joint slides smoothly in the thrust direction.
3. Check to see that there is no remarkable play in the radial direction of the inboard joint.
4. Check the boots for damage.

  Fig 8: Inspecting Front Drive Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
