Roof Headlining: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ROOF HEADLINING TRIM REAR
    1. Using a screwdriver, remove the roof headlining rear trim.

      HINT:

      Tape the screwdriver tip before use.

    Fig 1: Removing Roof Headlining Rear Trim
    G04439093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR NO. 2 SEAT ASSEMBLY
  3. REMOVE REAR MAT SET PLATE
    1. Remove the 5 screws.
    2. Using a screwdriver, remove the rear mat set plate.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Removing Rear Mat Set Plate
      G04439094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE STRIKER PLATE
    1. Remove the 6 screws.
    2. Using a screwdriver, remove the striker plates.

      HINT:

      Tape the screwdriver tip before use.

    Fig 3: Removing Striker Plates
    G04439095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR MAT
  6. REMOVE REAR DOOR SCUFF PLATE LH
  7. REMOVE REAR DOOR SCUFF PLATE RH
  8. REMOVE REAR DOOR OPENING TRIM LH
  9. REMOVE REAR DOOR OPENING TRIM RH
  10. REMOVE QUARTER TRIM PANEL LH
    1. Remove the rear No. 1 seat outer belt shoulder floor anchor.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

    2. Remove the rear No. 2 seat outer belt shoulder floor anchor.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

    3. Remove the quarter trim jack cover.
    4. Using a clip remover, remove the 2 clips.
    5. Detach the clips and remove the quarter trim panel, and then disconnect the connector.

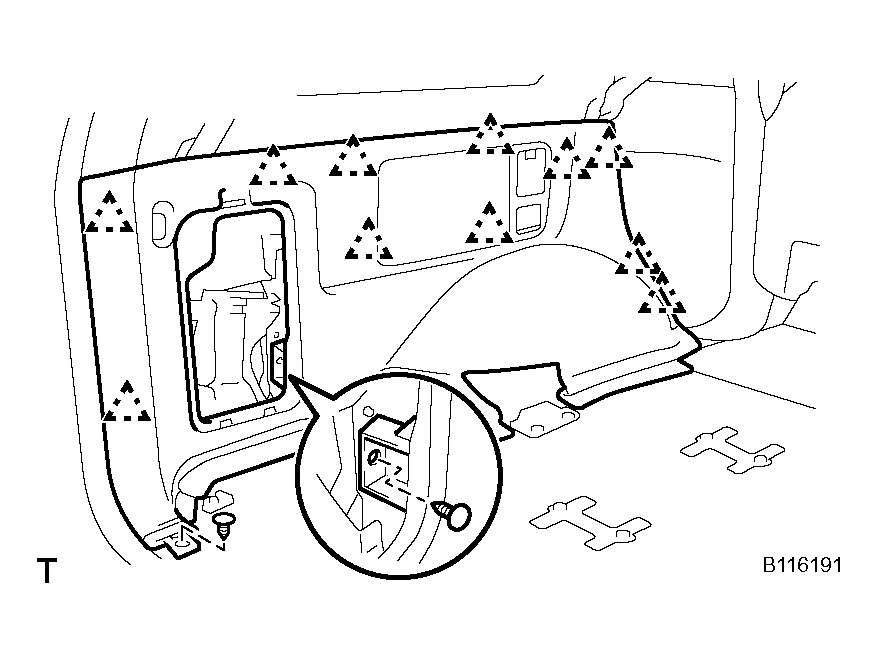

      Fig 4: Removing Quarter Trim Panel LH
      G04439096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE QUARTER TRIM PANEL RH
    1. Using a clip remover, remove the clip.
    2. Detach the clips and remove the quarter trim panel, and then disconnect the connector.
    Fig 5: Removing Quarter Trim Panel RH
    G04439097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE UPPER ROOF SIDE INNER GARNISH LH
    1. Remove the rear No. 1 seat outer belt shoulder anchor.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

    2. Remove the rear No. 2 seat outer belt shoulder anchor.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

    3. Using a screwdriver, remove the 2 assist grip plugs, and then remove the 2 screws and the rear assist grip.

      HINT:

      Tape the screwdriver tip before use.

      Fig 6: Removing Assist Grip
      G04439098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a clip remover, remove the clip.
    5. Using a screwdriver, remove the upper roof side inner garnish.

      HINT:

      Tape the screwdriver tip before use.

  13. REMOVE UPPER ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  14. REMOVE FRONT DOOR SCUFF PLATE LH
  15. REMOVE FRONT DOOR SCUFF PLATE RH
  16. REMOVE COWL SIDE TRIM BOARD LH
  17. REMOVE COWL SIDE TRIM BOARD RH
  18. REMOVE FRONT DOOR OPENING TRIM LH
  19. REMOVE FRONT DOOR OPENING TRIM RH
  20. REMOVE FRONT ASSIST GRIP LH
    1. Using a screwdriver, remove the 2 assist grip plugs, and then remove the 2 screws and front assist grip.

      HINT:

      Tape the screwdriver tip before use.

  21. REMOVE FRONT ASSIST GRIP RH

    HINT:

    Use the same procedures described for the LH side.

  22. REMOVE FRONT PILLAR GARNISH LH
    1. Using a screwdriver, remove the front pillar garnish.

      HINT:

      Tape the screwdriver tip before use.

  23. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 7: Removing Front Pillar Garnish
    G04439099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE CENTER PILLAR GARNISH LOWER LH
    1. Using a screwdriver, remove the center pillar garnish cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 8: Removing Center Pillar Garnish Cover
      G04439100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, remove the center pillar lower garnish as shown in Fig 9.

      HINT:

      Tape the screwdriver tip before use.

    Fig 9: Removing Center Pillar Lower Garnish
    G04439101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE CENTER PILLAR GARNISH LOWER RH

    HINT:

    Use the same procedures described for the LH side.

  26. REMOVE CENTER PILLAR GARNISH LH
    1. Using a screwdriver, remove the seat belt anchor cover cap.

      HINT:

      Tape the screwdriver tip before use.

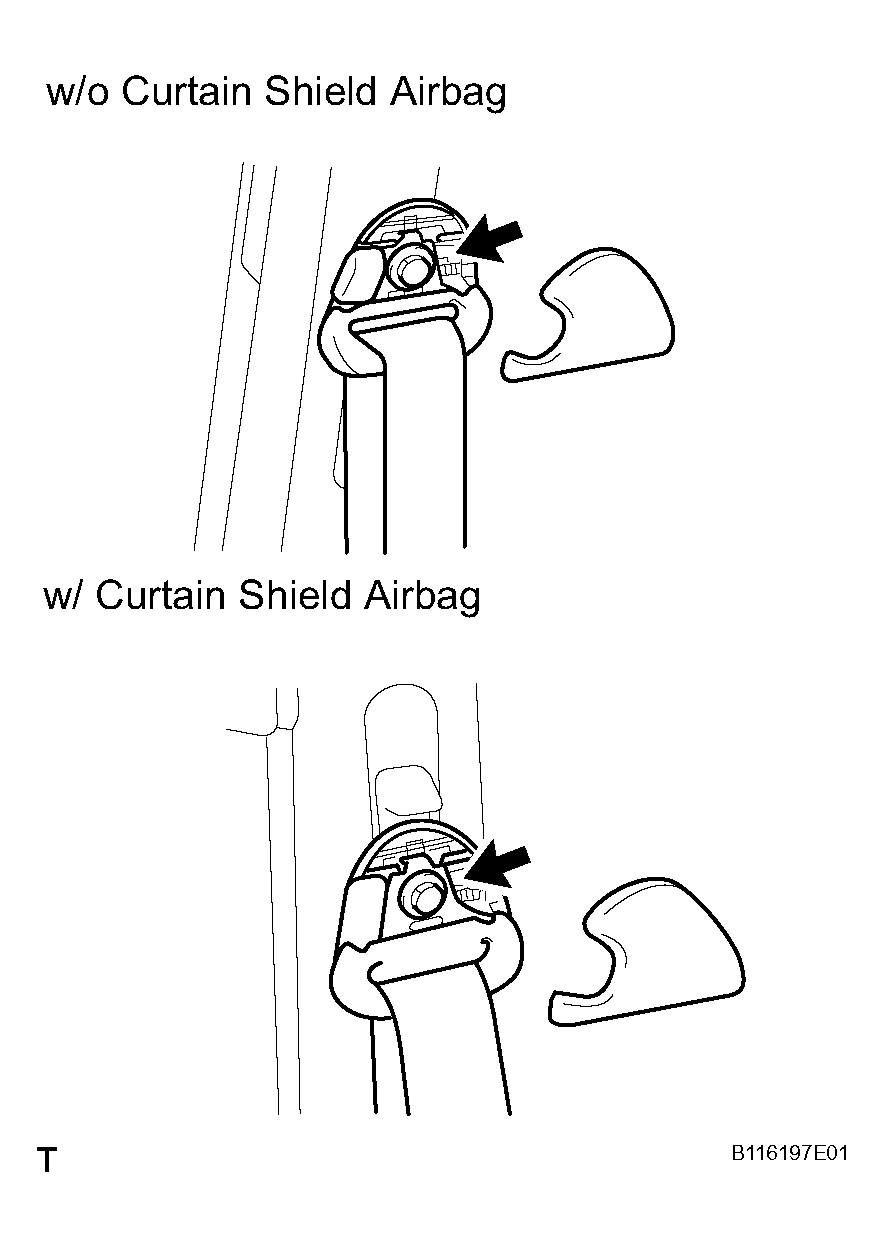

      Fig 10: Removing Seat Belt Anchor Cover Cap
      G04439102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and front seat outer belt shoulder anchor.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

    3. Using a clip remover, remove the clip.
    4. Using a screwdriver, remove the center pillar garnish.

      HINT:

      Tape the screwdriver tip before use.

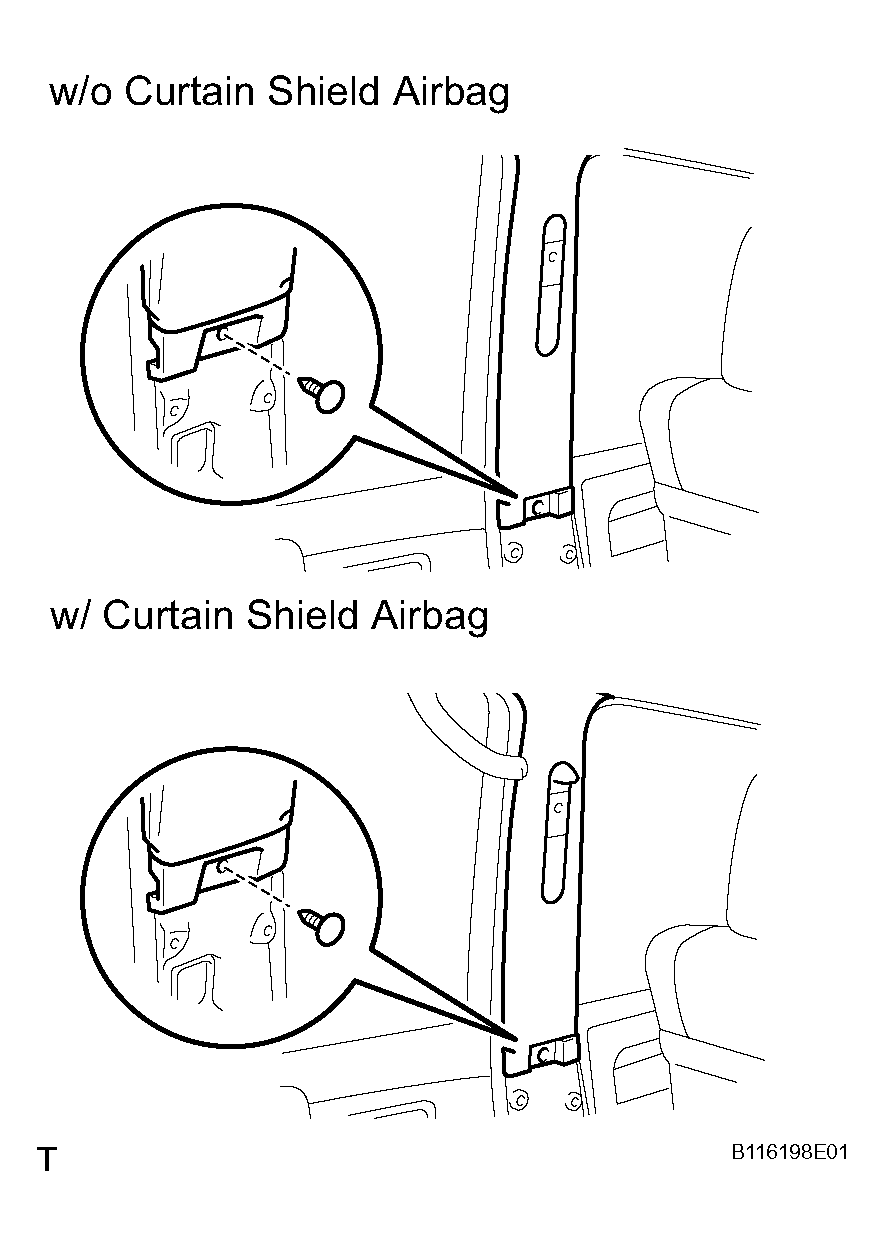

    Fig 11: Removing Center Pillar Garnish
    G04439103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  28. REMOVE SUN VISOR LH
    1. Using a screwdriver, remove the cap.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws, and then disconnect the connector.
    3. Remove the sun visor.
  29. REMOVE SUN VISOR RH

    HINT:

    Use the same procedures described for the LH side.

  30. REMOVE DOUBLE VISOR LH
    1. Remove the 2 screws and the double visor.
  31. REMOVE DOUBLE VISOR RH
    1. Remove the 2 screws and the double visor.
  32. REMOVE VISOR HOLDER
    1. Remove the 2 screws and 2 holders.
  33. REMOVE REAR ROOM LIGHT
    1. Using a screwdriver, remove the lens as shown in Fig 12.

      HINT:

      Tape the screwdriver tip before use.

      Fig 12: Removing Lens
      G04439104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws and rear personal light, and then disconnect the connector.
  34. REMOVE ROOM LIGHT AND REAR PERSONAL LIGHT
    1. Using a screwdriver, remove the lens as shown in Fig 13.

      HINT:

      Tape the screwdriver tip before use.

      Fig 13: Removing Lens
      G04439105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws and light, and then disconnect the connector.
  35. REMOVE OVERHEAD CONSOLE BOX
    1. Remove the bolt.
    2. Using a screwdriver, remove the overhead console box, and then disconnect the connector.

      HINT:

      Tape the screwdriver tip before use.

    Fig 14: Removing Overhead Console Box
    G04439106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE REAR HEATER CONTROL ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and pull out the rear heater control, and then disconnect the connector.

      HINT:

      Tape the screwdriver tip before use.

  37. REMOVE ROOM TEMPERATURE SENSOR
    1. Using a screwdriver, pull out the room temperature sensor, and then disconnect the connector.

      HINT:

      Tape the screwdriver tip before use.

  38. REMOVE ASSIST GRIP
  39. REMOVE CENTER ASSIST GRIP (w/o Curtain Shield Airbag)
  40. REMOVE ROOF HEADLINING
    1. Using a clip remover, remove the 3 clips and roof headlining.
    Fig 15: Removing Clips & Roof Headlining
    G04439107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE REAR AIR CONDITIONING REGISTER
  42. REMOVE ADJUSTABLE ANCHOR LH (w/Curtain Shield Airbag)
    1. Remove the 2 bolts and adjustable anchor.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

  43. REMOVE ADJUSTABLE ANCHOR RH (w/Curtain Shield Airbag)
    1. Remove the 2 bolts and adjustable anchor.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

  44. REMOVE CENTER ASSIST GRIP (w/Curtain Shield Airbag)
