Seat Position Sensor: Installation

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing (see PRECAUTION ).

INSTALL SEAT POSITION SENSOR
1. Connect the connector.
2. Install the sensor with a new bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
  NOTE:
  - If the sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position sensor with a new one.
  - When installing the sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

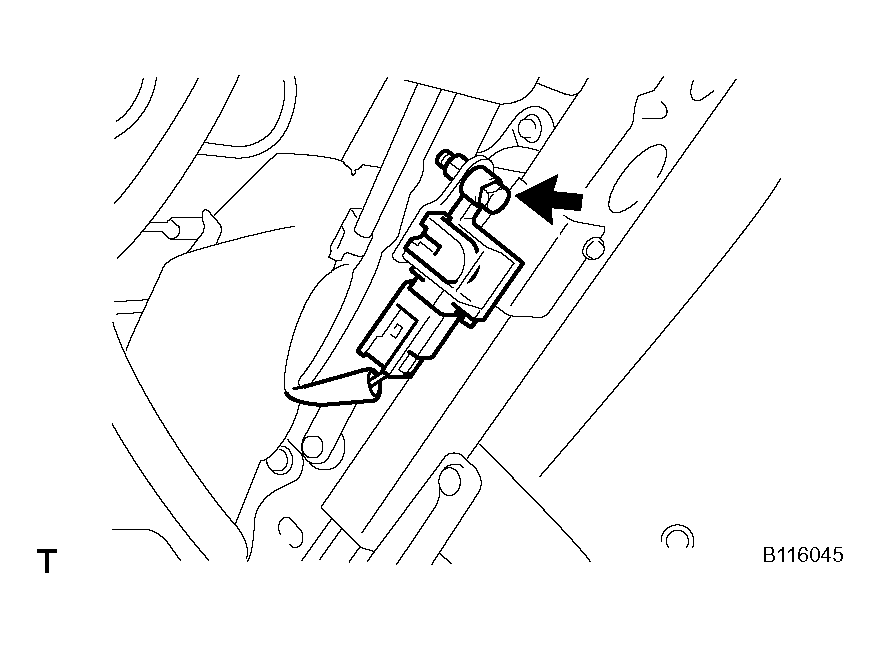

  Fig 1: Identifying Seat Position Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
