Rear Airbag Sensor: Removal
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Be sure to read the precautionary notices concerning the SRS airbag system before servicing (see PRECAUTION
).
- REMOVE CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation
- REMOVE REAR DOOR SCUFF PLATE
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
- REMOVE SEAT BELT OUTER ANCHOR COVER
- REMOVE REAR MAT SET PLATE
- REMOVE REAR NO. 2 SEAT ASSEMBLY
- REMOVE STRIKER PLATE
- REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY

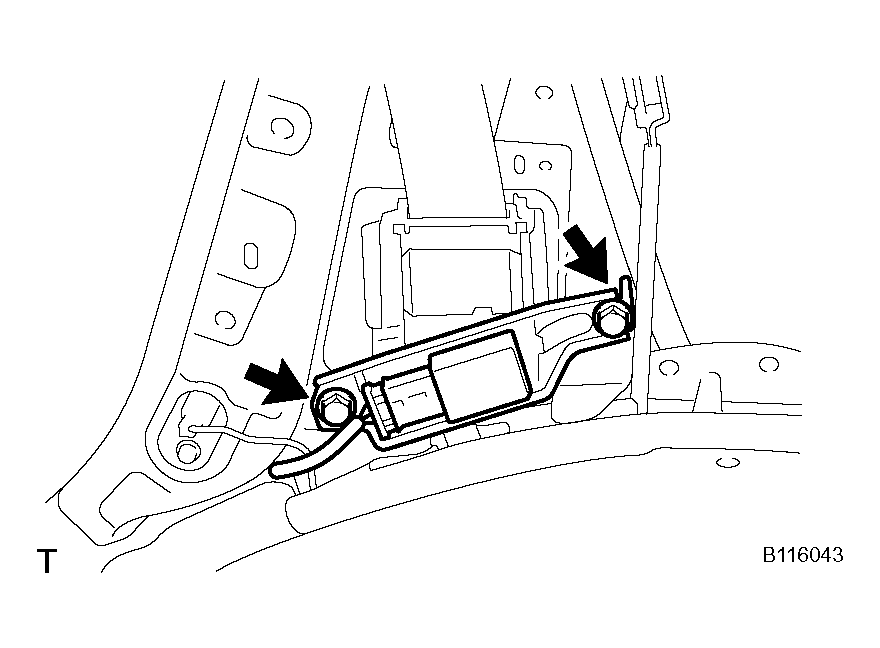

- REMOVE REAR AIRBAG SENSOR
- Disconnect the connector.
- Remove the 2 bolts and airbag sensor.
