Front Airbag Sensor: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing (see PRECAUTION  ).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE BATTERY
    1. Disconnect the cable from the positive (+) battery terminal.
    2. Remove the bolt, nut and battery stay.
    3. Remove the battery.
  3. REMOVE FRONT AIRBAG SENSOR LH
    1. Disconnect the sensor connector.
    2. Remove the 2 bolts and sensor.

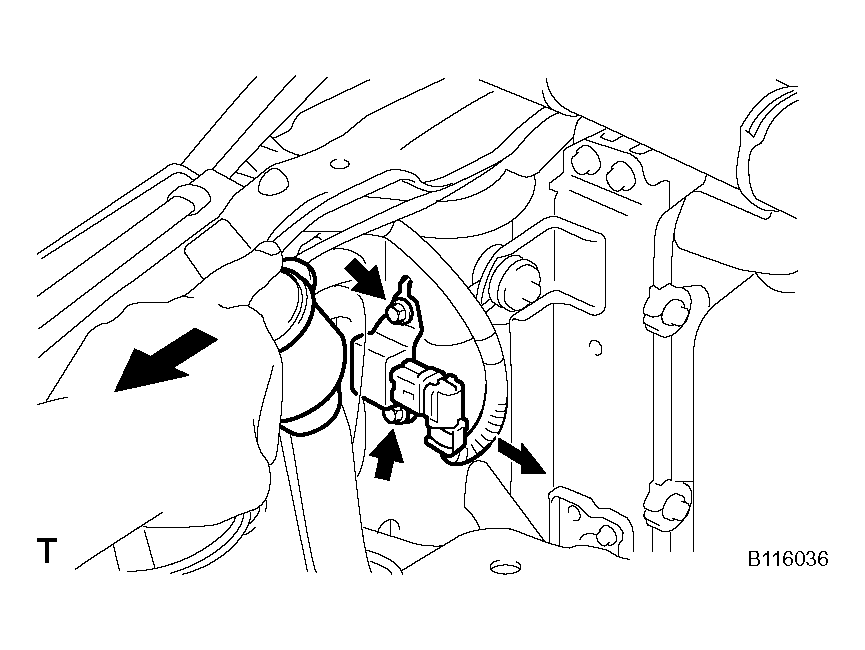

      Fig 1: Identifying Front Airbag Sensor LH
      G04438346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT AIRBAG SENSOR RH
    1. Disconnect the sensor connector.
    2. Remove the 2 bolts and sensor.

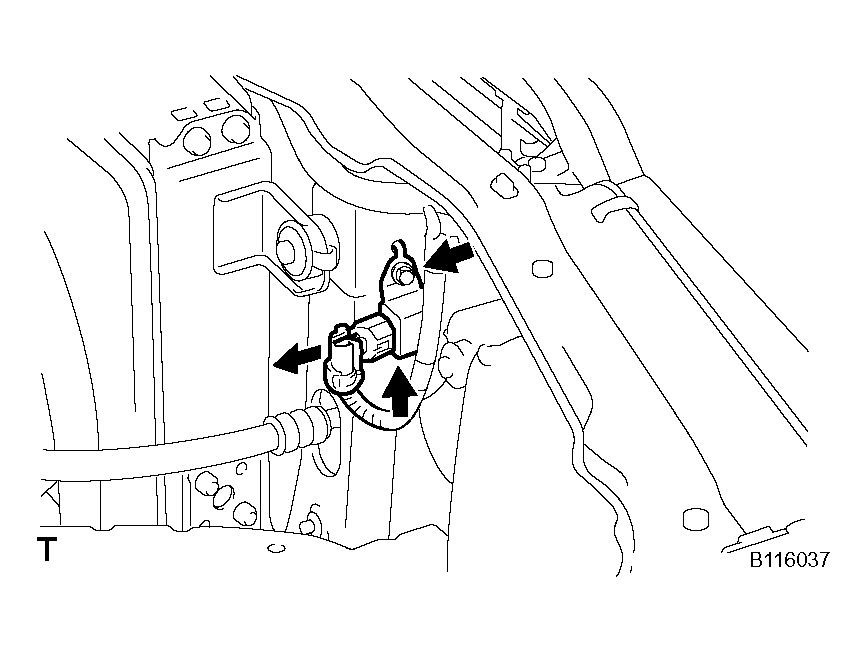

      Fig 2: Identifying Front Airbag Sensor RH
      G04438347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
