FRONT SEAT CUSHION ASSEMBLY (w/Occupant Classification ECU, Occupant Classification Sensor): Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

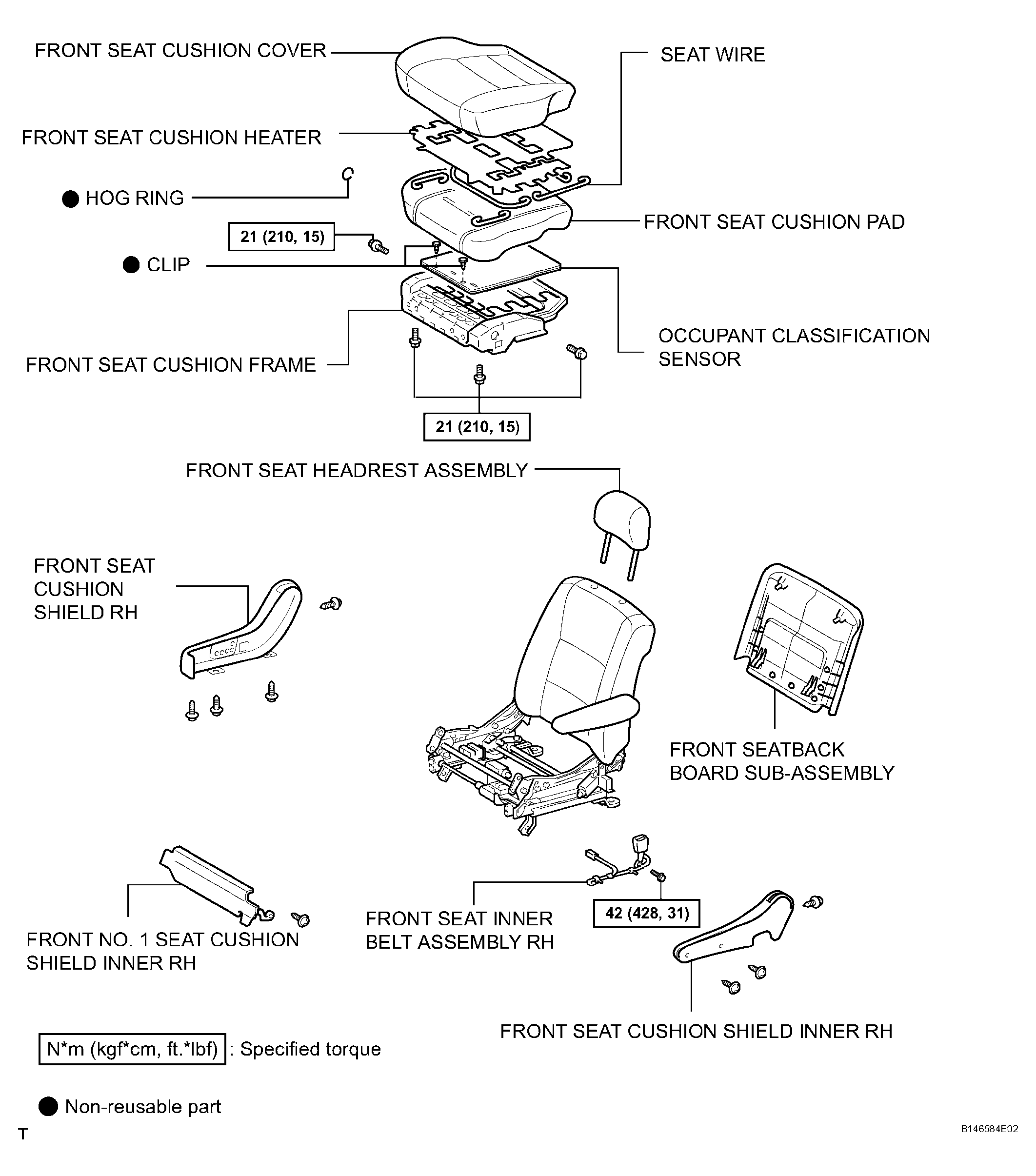

Fig 1: Front Seat Cushion Assembly (With Occupant Classification ECU, Occupant Classification Sensor) Replacement Components With Torque Specifications
