Inspection Procedure
- CHECK FOR DTC
- Turn the ignition switch to ON, and wait at least for 10 seconds.
- Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
- Turn the ignition switch to LOCK, and wait at least for 10 seconds.
- Turn the ignition switch to ON, and wait at least for 10 seconds.
- Check the DTC (see DTC CHECK/CLEAR
).
OK: DTC B1154/38 is output.
HINT:
Codes other than code B1154/38 may be output at this time, but they are not relevant to this check.
NG: USE SIMULATION METHOD TO CHECK
OK: GO TO NEXT STEP
- CHECK CONNECTION OF CONNECTOR
- Turn the ignition switch to LOCK.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the center airbag sensor and the curtain shield airbag sensor RH.
OK: The connectors are connected.
NG: CONNECT CONNECTOR
OK: GO TO NEXT STEP

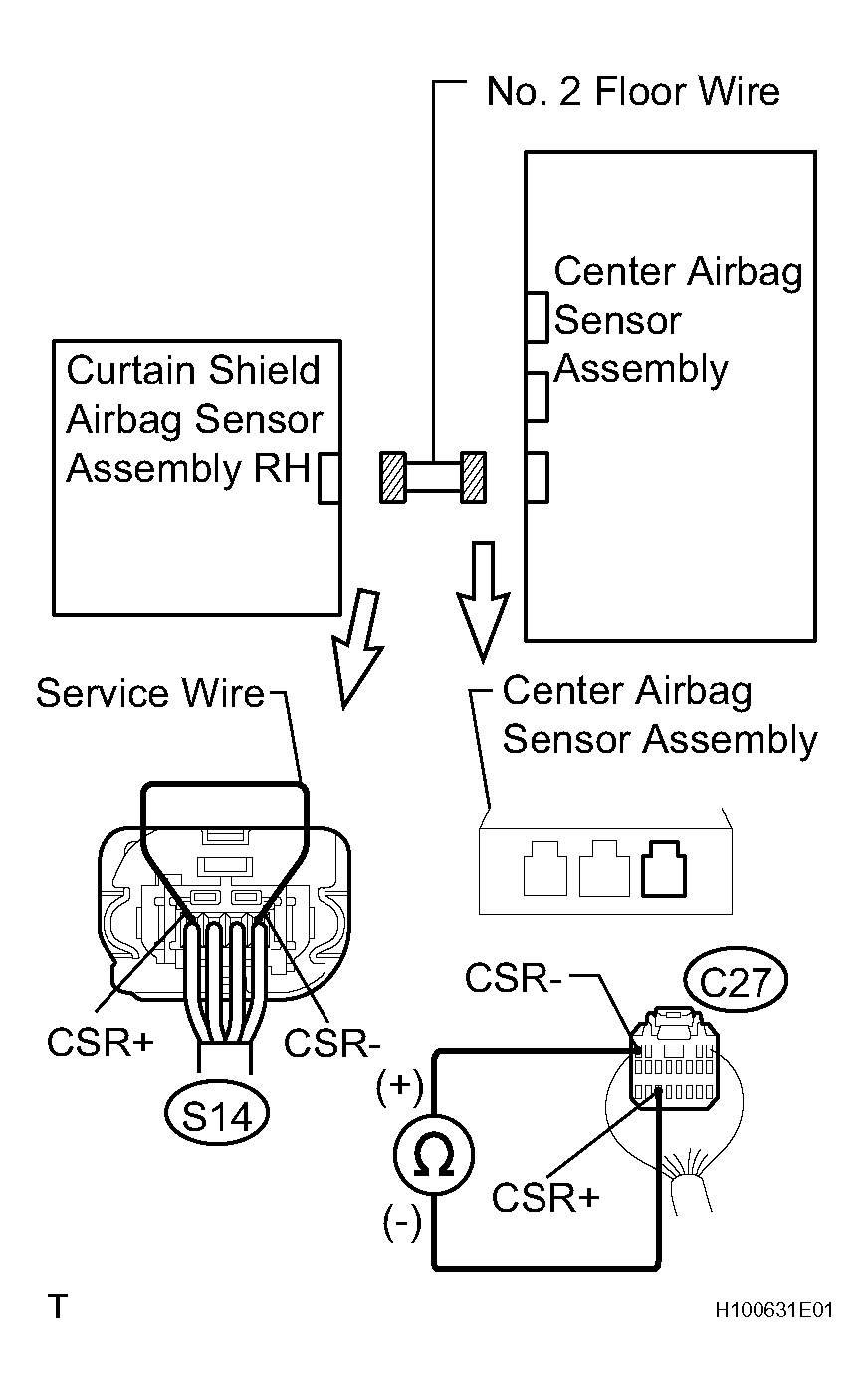

- CHECK NO. 2 FLOOR WIRE
- Using a service wire, connect CSR+ and CSR- of the S14 No. 2 floor wire connector on the curtain shield airbag sensor RH side.
- Measure the resistance between CSR+ and CSR- of the C27 No. 2 floor wire connector on the center airbag sensor side.
Standard resistance: Below 1 Ω
NG: REPAIR OR REPLACE NO. 2 FLOOR WIRE
OK: GO TO NEXT STEP

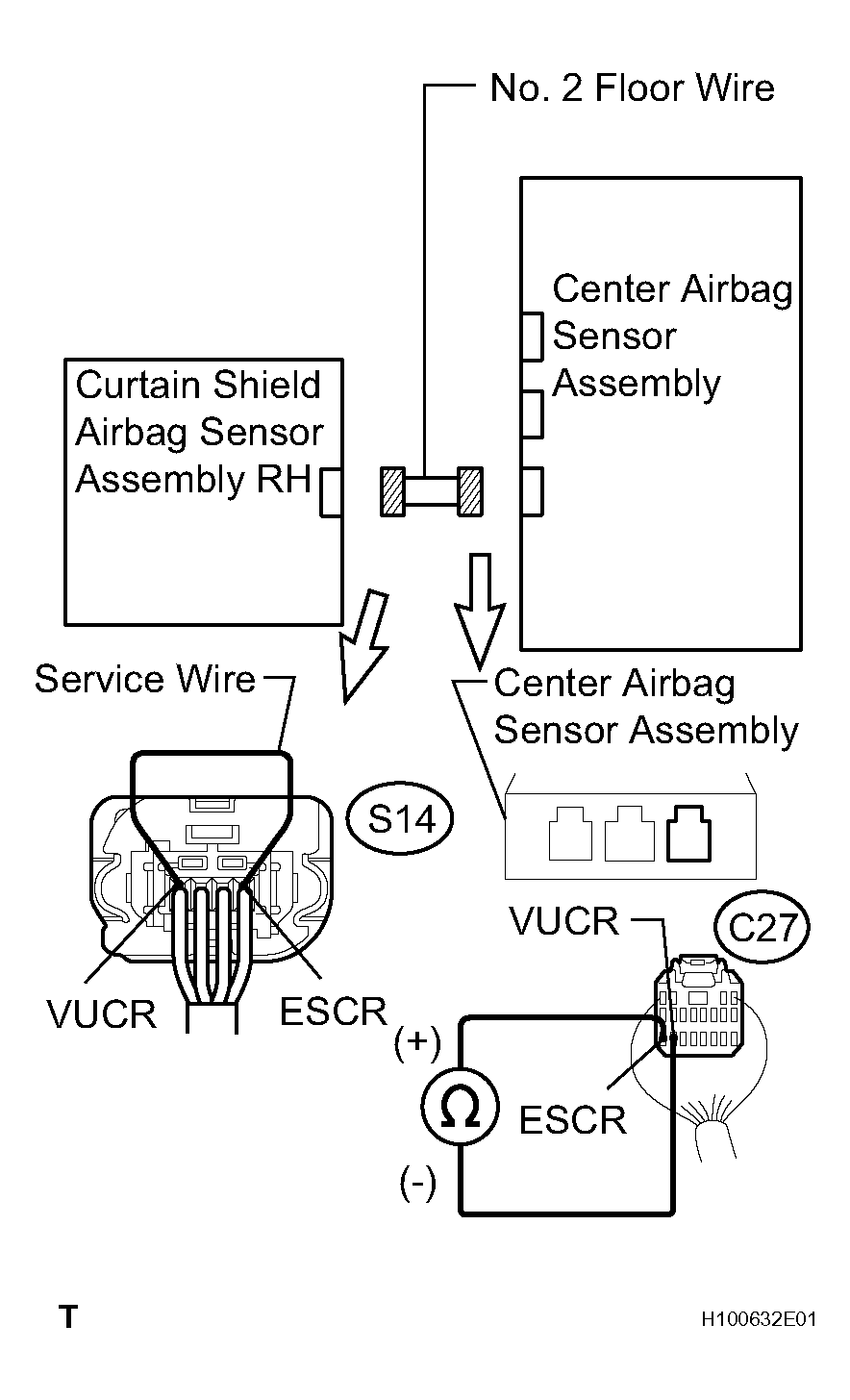

- CHECK NO. 2 FLOOR WIRE
- Using a service wire, connect VUCR and ESCR of the S14 No. 2 floor wire connector on the curtain shield airbag sensor RH side.
- Measure the resistance between VUCR and ESCR of the C27 No. 2 floor wire connector on the center airbag sensor side.
Standard resistance: Below 1 Ω
NG: REPAIR OR REPLACE NO. 2 FLOOR WIRE
OK: GO TO NEXT STEP

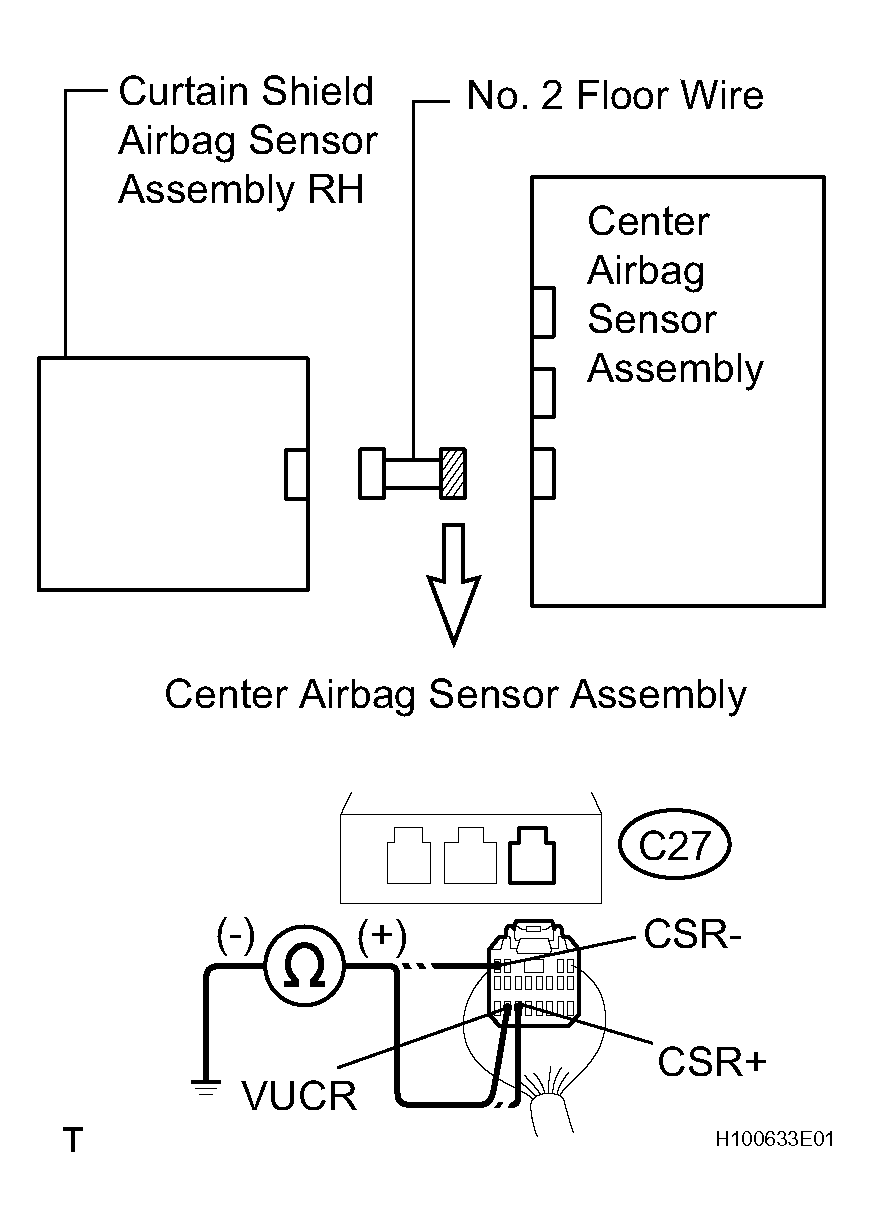

- CHECK NO. 2 FLOOR WIRE (TO GROUND)
- Measure the resistance between the body ground and each of VUCR, CSR+ and CSR- of the C27 No. 2 floor wire connector on the center airbag sensor side.
Standard resistance: 10 kΩ or higher
NG: REPAIR OR REPLACE NO. 2 FLOOR WIRE
OK: GO TO NEXT STEP
- Measure the resistance between the body ground and each of VUCR, CSR+ and CSR- of the C27 No. 2 floor wire connector on the center airbag sensor side.

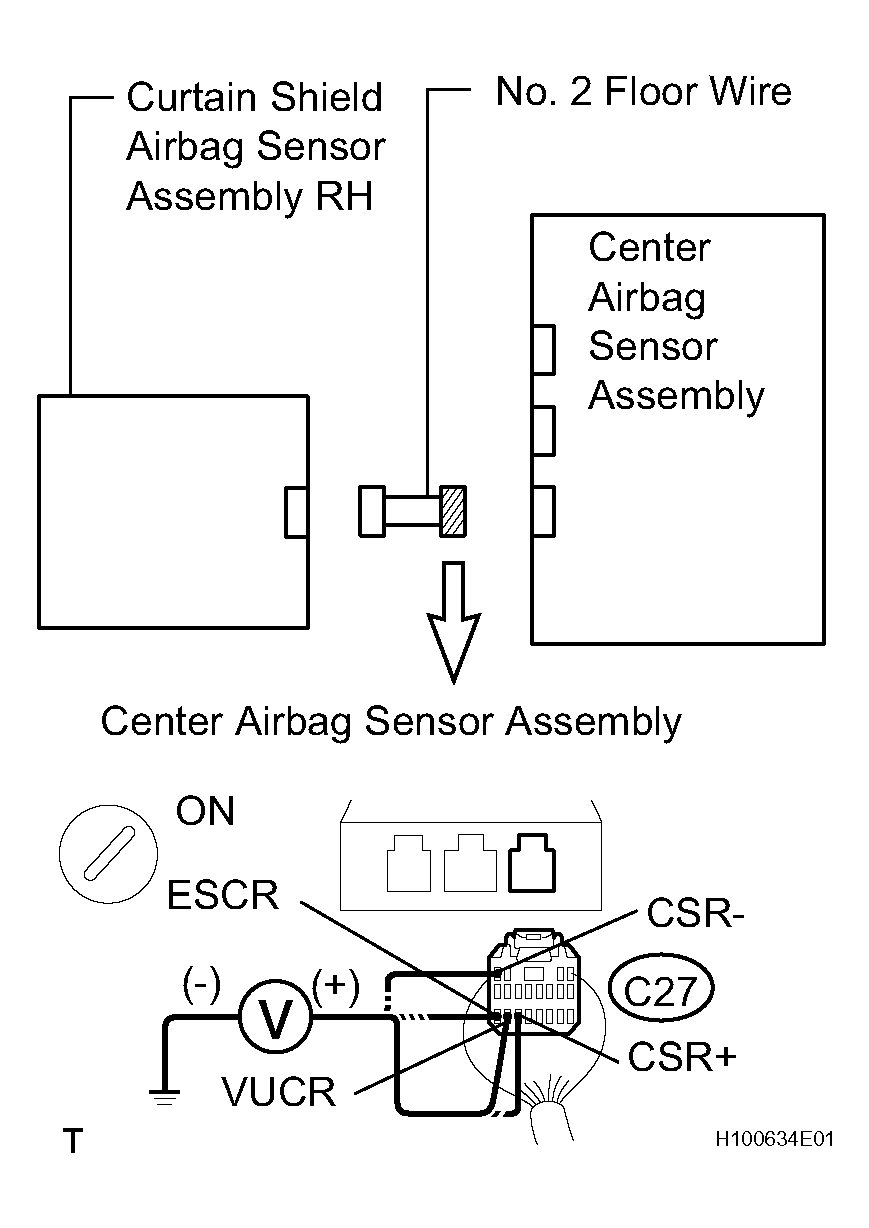

- CHECK NO. 2 FLOOR WIRE (TO B+)
- Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
- Turn the ignition switch to ON.
- Measure the voltage between the body ground and each of VUCR, CSR+, CSR- and ESCR of the C27 No. 2 floor wire connector on the center airbag sensor side.
Standard voltage: Below 1 V
NG: REPAIR OR REPLACE NO. 2 FLOOR WIRE
OK: GO TO NEXT STEP

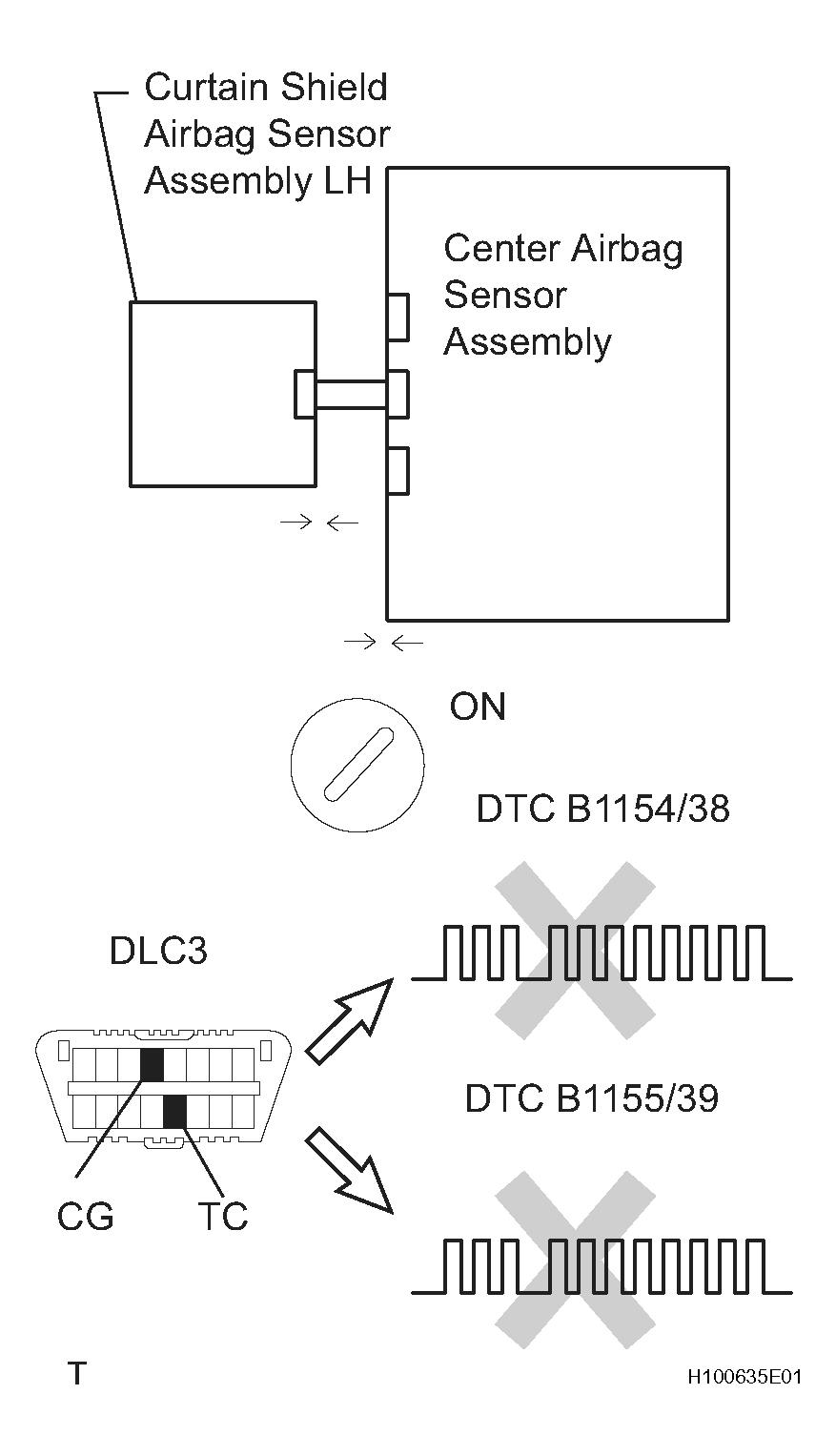

- CHECK CENTER AIRBAG SENSOR ASSEMBLY
- Turn the ignition switch to LOCK.
- Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.
- Connect the connector to the center airbag sensor.
- Change the curtain shield airbag sensor LH position with RH position.
- Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
- Turn the ignition switch to ON, and wait at least for 10 seconds.
- Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
- Turn the ignition switch to LOCK, and wait at least for 10 seconds.
- Turn the ignition switch to ON, and wait at least for 10 seconds.
- Check the DTC (see DTC CHECK/CLEAR
).
OK: DTC B1154/38 and B1155/39 are not output.
HINT:
Codes other than code B1154/38 or B1155/39 may be output at this time, but they are not relevant to this check.
NG: REPLACE CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY LH (DTC B1155/39 IS OUTPUT)
NG: REPLACE CENTER AIRBAG SENSOR ASSEMBLY (DTC B1154/38 IS OUTPUT)
OK: USE SIMULATION METHOD TO CHECK
