Inspection Procedure
- CHECK FOR DTC
- Turn the ignition switch ON, and wait for at least 10 seconds.
- Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
- Turn the ignition switch OFF, and wait for at least 10 seconds.
- Turn the ignition switch ON, and wait for at least 10 seconds.
- Check for a DTC (see DTC CHECK/CLEAR
).
OK: DTC B1153/25 is output.
HINT:
Codes other than code B1153/25 may be output at this time, but they are not relevant to this check.
NG: USE SIMULATION METHOD TO CHECK
OK: GO TO NEXT STEP
- CHECK CONNECTION OF CONNECTOR
- Turn the ignition switch OFF.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the center airbag sensor and the seat position sensor.
NG: CONNECT CONNECTOR
OK: GO TO NEXT STEP

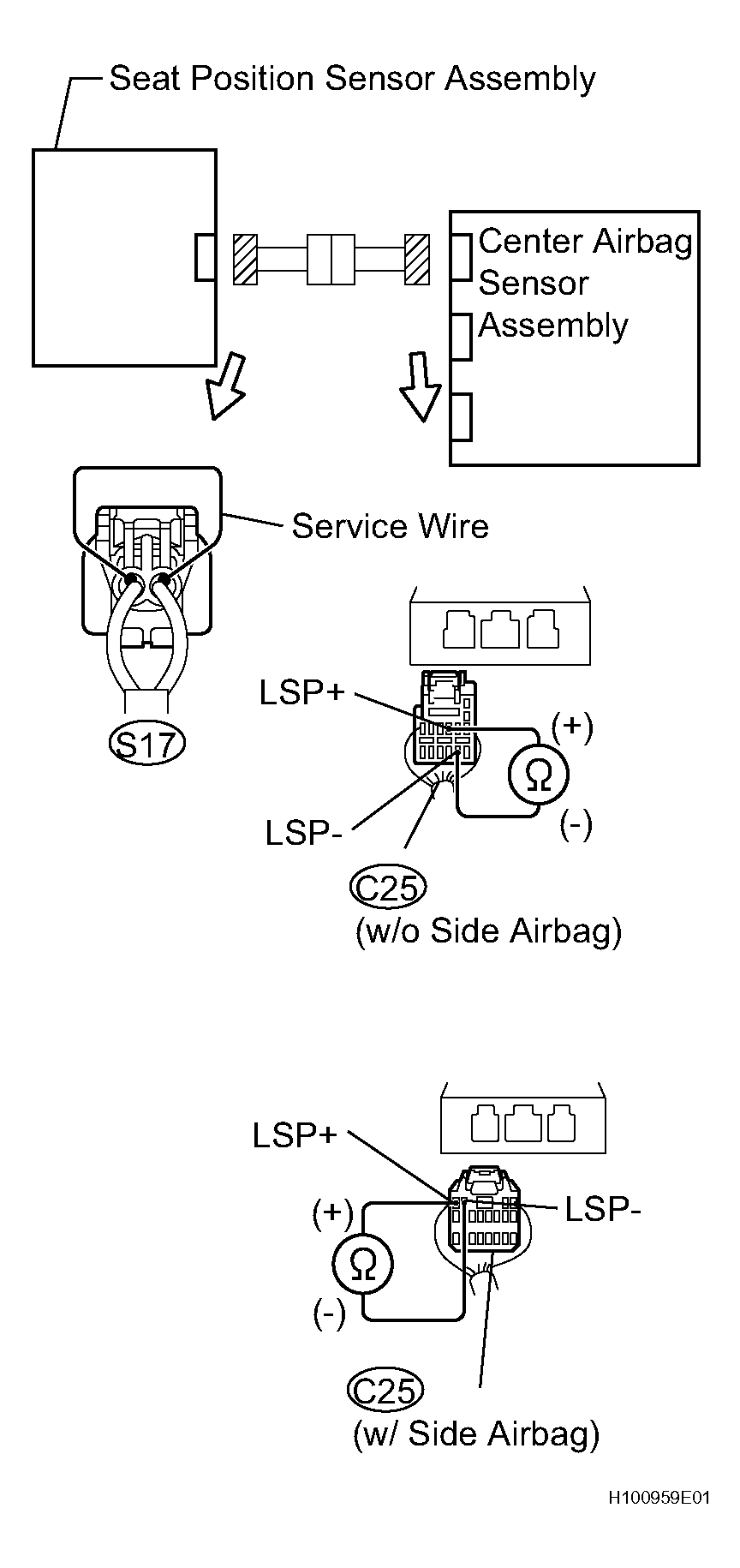

- CHECK WIRE HARNESS
- Using a service wire, connect terminals LSP+ and LSP of the S17 connector on the seat position sensor side between the center airbag sensor and the seat position sensor.
- Measure the resistance of the wire harness side connector.
Standard resistance
WIRE HARNESSTester Connection Specified Condition C25-4 (LSP+)*1 - C25-3 (LSP-)*1 Below 1 Ω C25-3 (LSP+)*2 - C25-8 (LSP-)*2 Below 1 Ω HINT:
*1: w/Side Airbag *2: w/o Side Airbag
NG: Go to step 9
OK: GO TO NEXT STEP

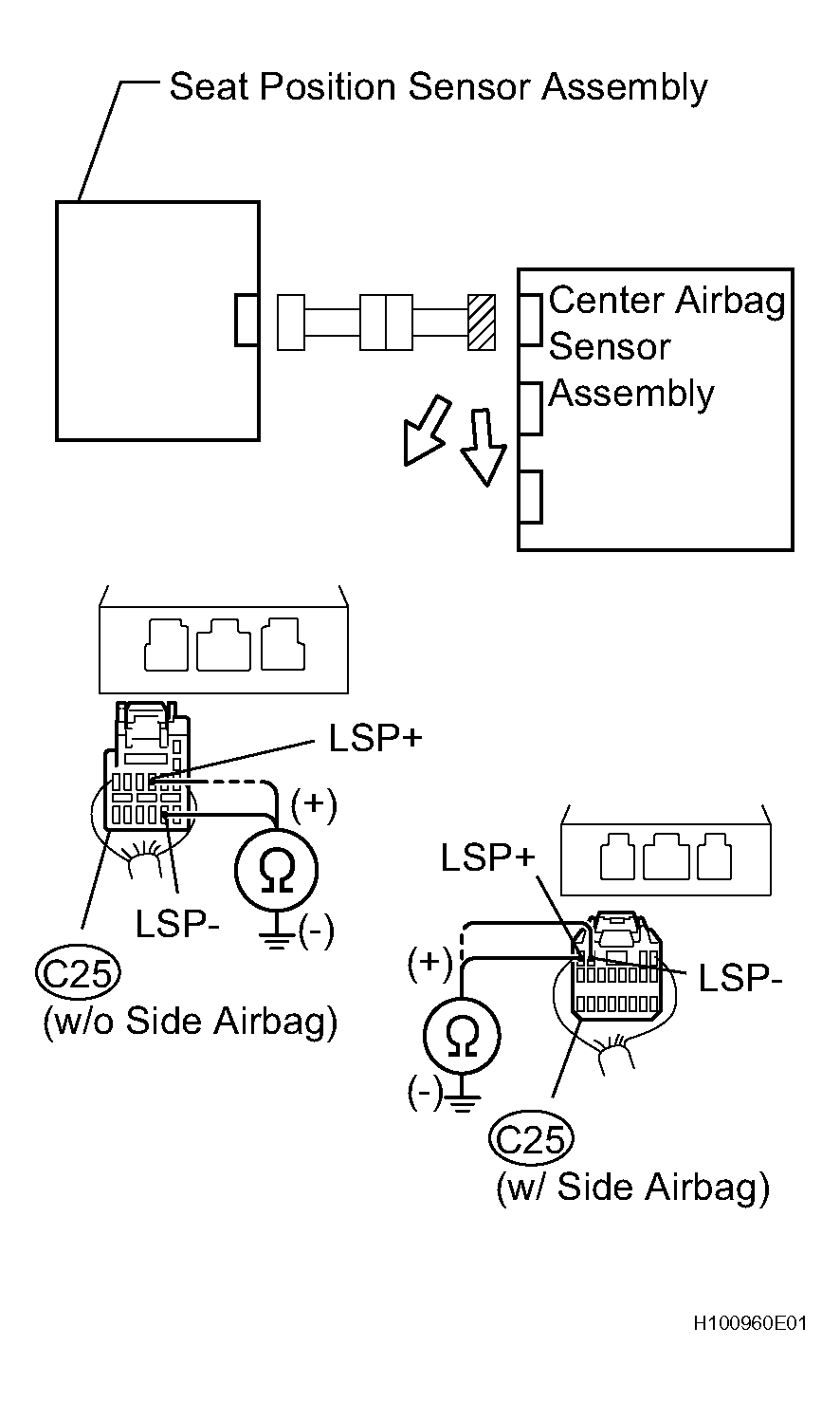

- CHECK WIRE HARNESS (TO GROUND)
- Disconnect the service wire from the connector on the seat position sensor side.
- Measure the resistance of the wire harness side connector.
Standard resistance
WIRE HARNESS (TO GROUND)Tester Connection Specified Condition C25-4 (LSP+)*1 - Body ground 10 kΩ or higher C25-3 (LSP-)*1 - Body ground 10 kΩ or higher C25-3 (LSP+)*2 - Body ground 10 kΩ or higher C25-8 (LSP-)*2 - Body ground 10 kΩ or higher HINT:
*1: w/Side Airbag *2: w/o Side Airbag
NG: Go to step 10
OK: GO TO NEXT STEP

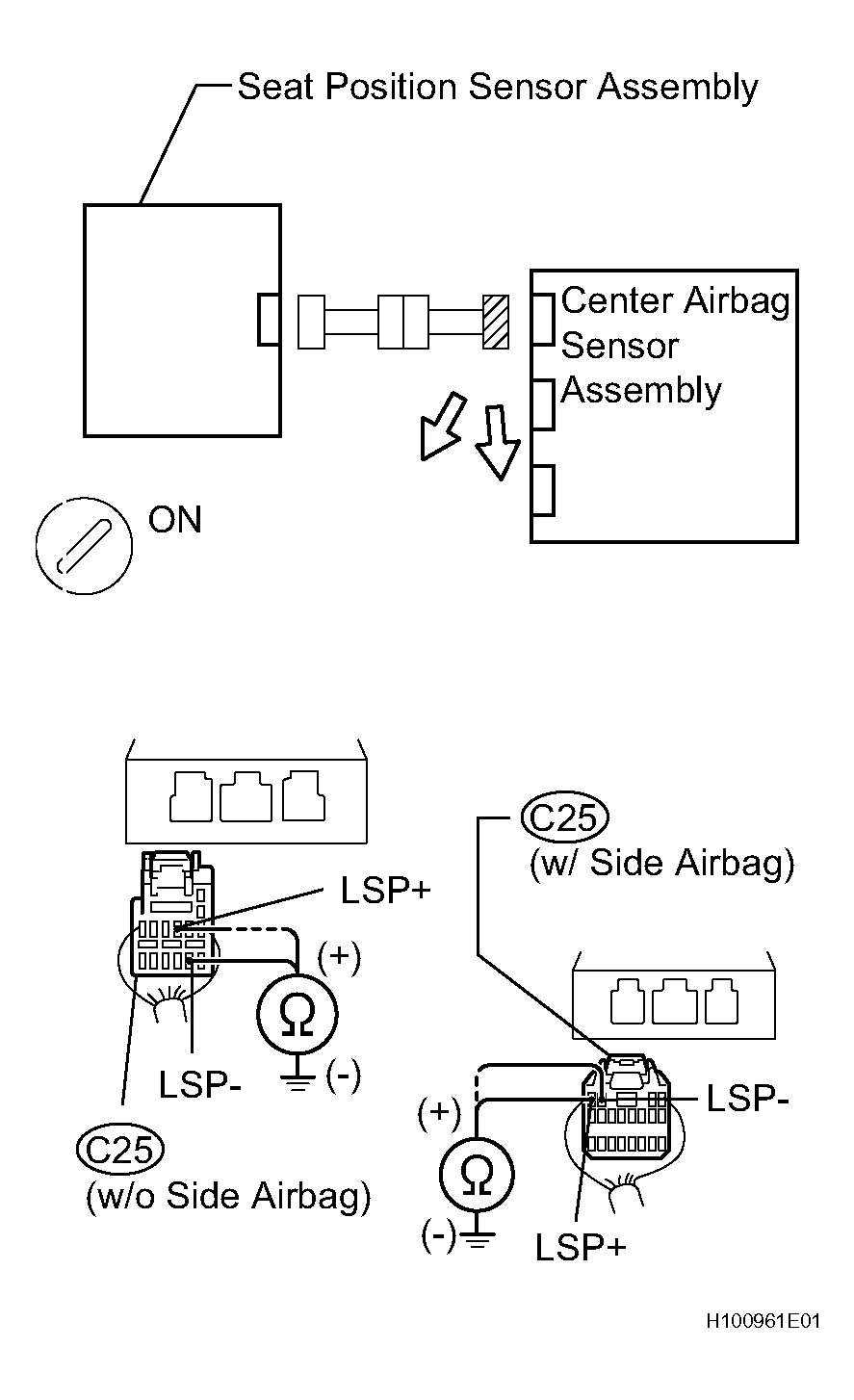

- CHECK WIRE HARNESS (TO B+)
- Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
- Turn the ignition switch ON.
- Measure the voltage of the wire harness side connector.
Standard voltage
WIRE HARNESS (TO B+)Tester Connection Specified Condition C25-4 (LSP+)*1 - Body ground Below 1 V C25-3 (LSP-)*1 - Body ground Below 1 V C25-3 (LSP+)*2 - Body ground Below 1 V C25-8 (LSP-)*2 - Body ground Below 1 V HINT:
*1: w/Side Airbag *2: w/o Side Airbag
NG: Go to step 11
OK: GO TO NEXT STEP

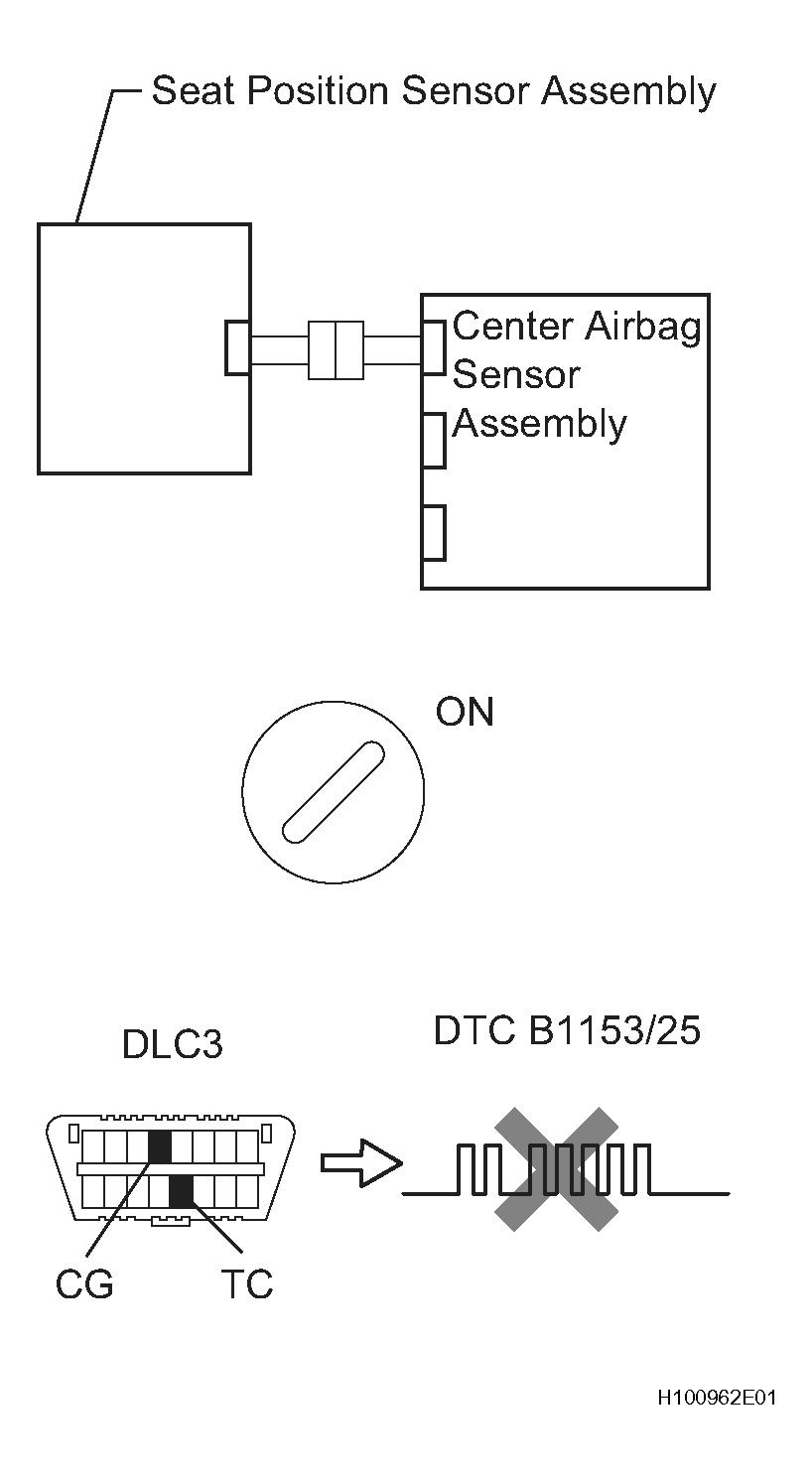

- CHECK SEAT POSITION SENSOR ASSEMBLY
- Turn the ignition switch OFF.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Connect the connectors of the seat position sensor and the center airbag sensor.
- Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
- Turn the ignition switch ON, and wait for at least 10 seconds.
- Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
- Turn the ignition switch OFF, and wait for at least 10 seconds.
- Turn the ignition switch ON, and wait for at least 10 seconds.
- Check for a DTC (see DTC CHECK/CLEAR
).
OK: DTC B1153/25 is not output.
HINT:
Codes other than code B1153/25 may be output at this time, but they are not relevant to this check.
OK: USE SIMULATION METHOD TO CHECK
NG: GO TO NEXT STEP
- REPLACE SEAT POSITION SENSOR ASSEMBLY
- Turn the ignition switch OFF.
- Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
- Replace the seat position sensor.
HINT:
Perform the inspection using parts from a normal vehicle.
- CHECK CENTER AIRBAG SENSOR ASSEMBLY
- Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
- Turn the ignition switch ON, and wait for at least 10 seconds.
- Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
- Turn the ignition switch OFF, and wait for at least 10 seconds.
- Turn the ignition switch ON, and wait for at least 10 seconds.
- Check for a DTC (see DTC CHECK/CLEAR
).
OK: DTC B1153/25 is not output
HINT:
DTCs other that DTC B1153/25 may be output at this time, but they are not relevant to this check.
NG: REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK: USE SIMULATION METHOD TO CHECK

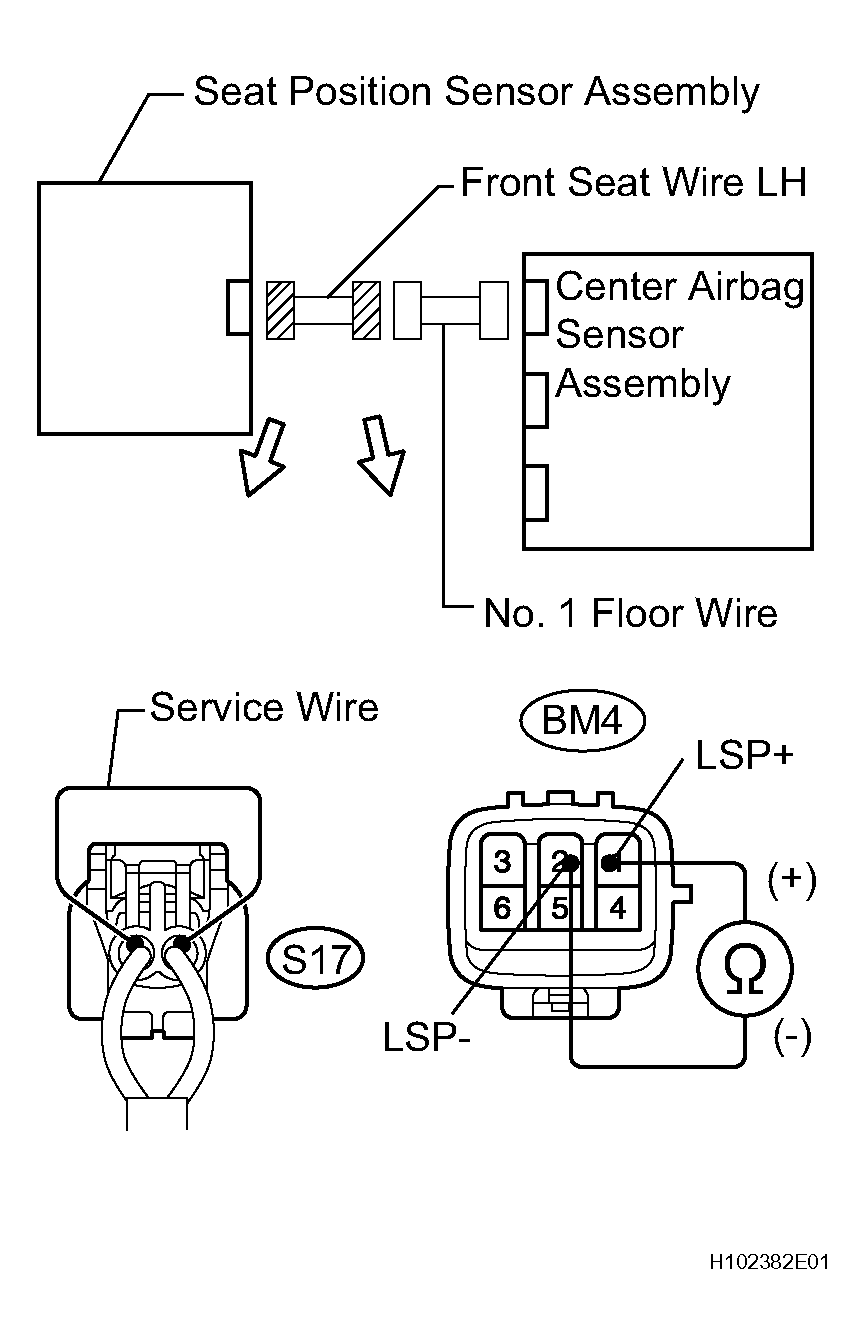

- CHECK FRONT SEAT WIRE LH
- Disconnect the front seat wire LH connector from the No. 1 floor wire.
- Using a service wire, connect terminals LSP+ and LSP of the S17 front seat wire LH connector on the seat position sensor side.
- Measure the resistance of the wire harness side connector.
Standard resistance
FRONT SEAT WIRE LHTester Connection Specified Condition BM4-1 (LSP+) - BM4-2 (LSP-) Below 1 Ω
NG: REPAIR OR REPLACE FRONT SEAT WIRE LH
OK: REPAIR OR REPLACE NO. 1 FLOOR WIRE

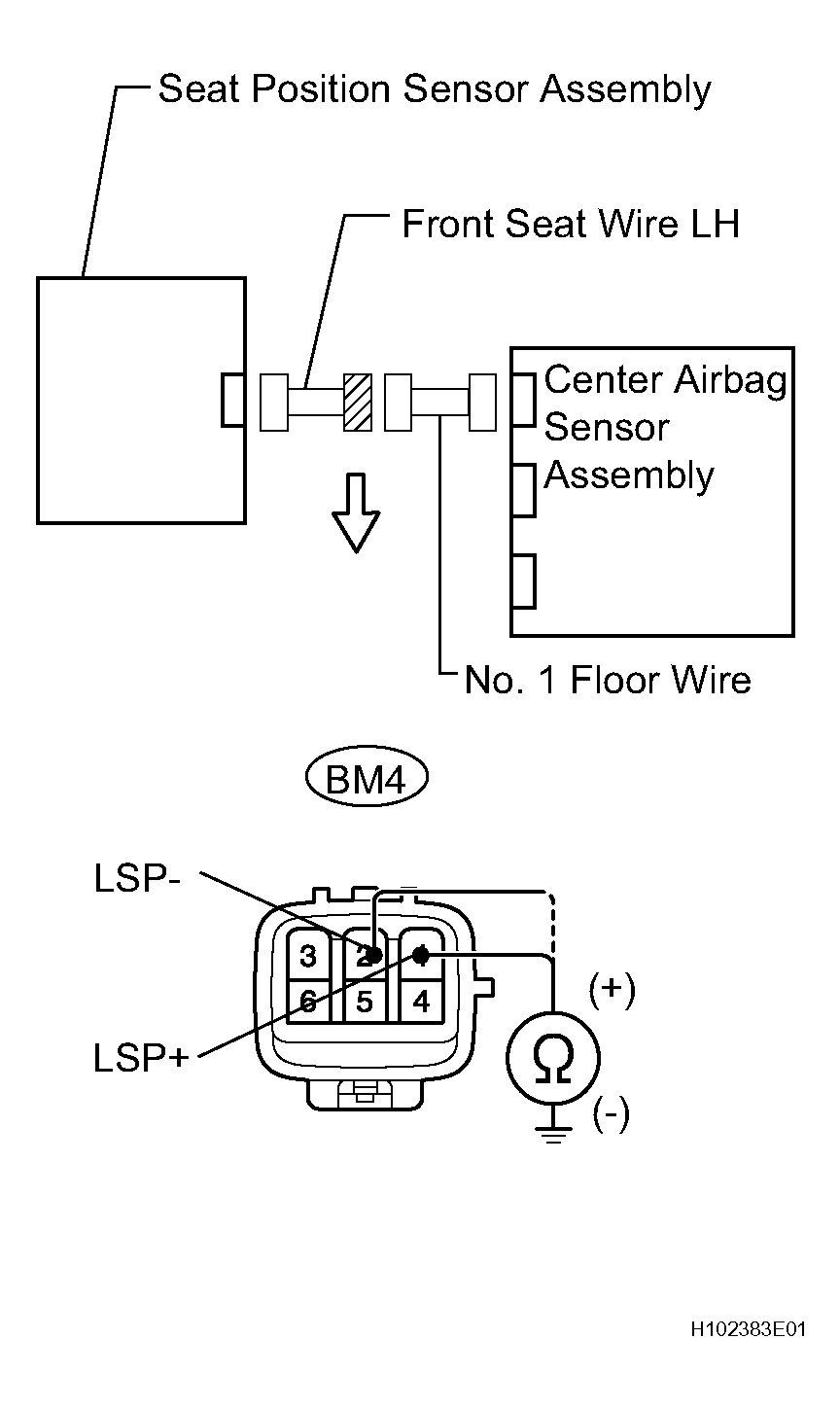

- CHECK FRONT SEAT WIRE LH (TO GROUND)
- Disconnect the front seat wire LH connector from the No. 1 floor wire.
- Disconnect the service wire from the front seat wire LH connector on the seat position sensor side.
- Measure the resistance of the wire harness side connector.
Standard resistance
FRONT SEAT WIRE LH (TO GROUND)Tester Connection Specified Condition BM4-1 (LSP+) - Body ground 10 kΩ or higher BM4-2 (LSP-) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE FRONT SEAT WIRE LH
OK: REPAIR OR REPLACE NO. 1 FLOOR WIRE

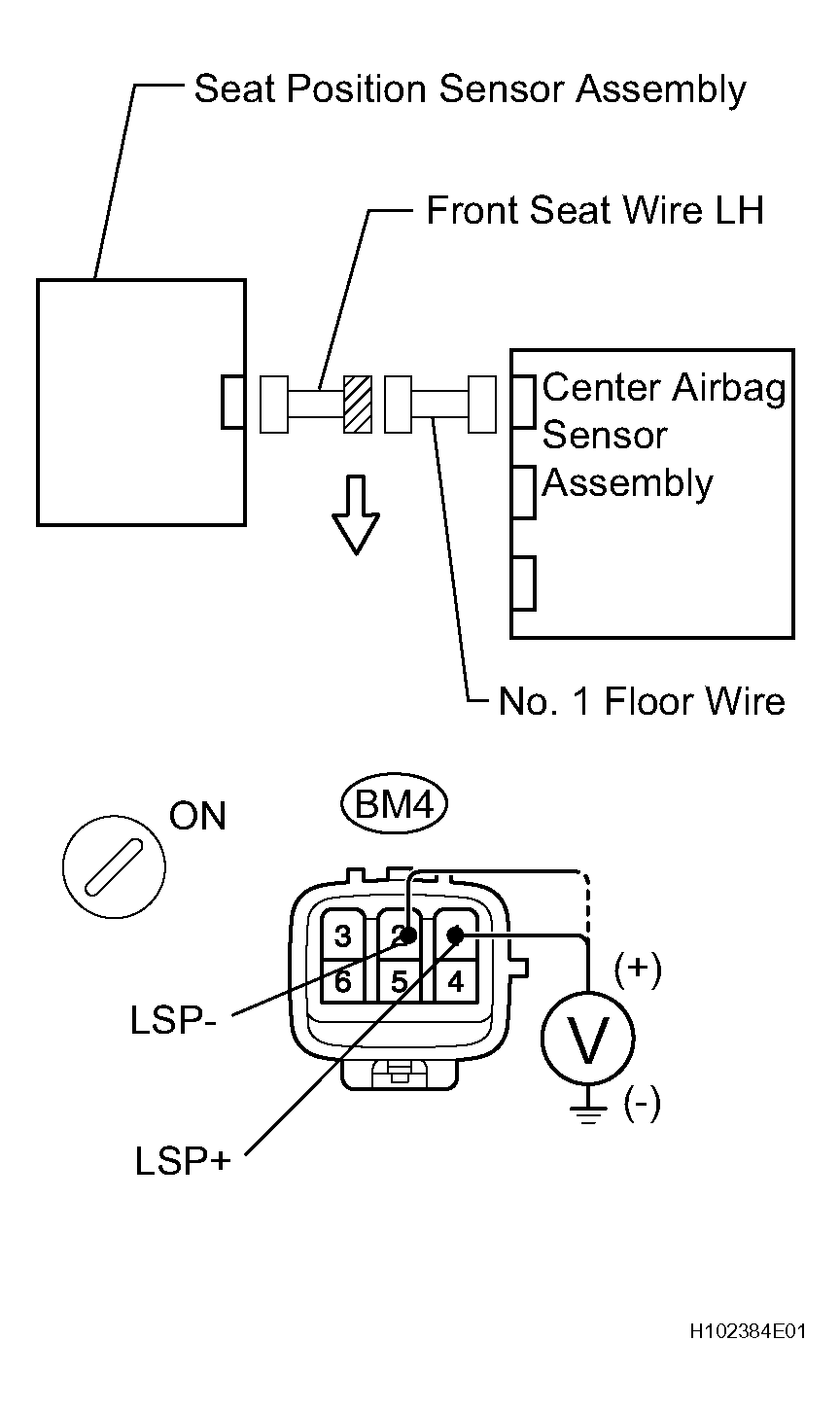

- CHECK FRONT SEAT WIRE LH (TO B+)
- Disconnect the front seat wire LH connector from the No. 1 floor wire.
- Turn the ignition switch ON.
- Measure the voltage of the wire harness side connector.
Standard voltage
FRONT SEAT WIRE LH (TO B+)Tester Connection Specified Condition BM4-1 (LSP+) - Body ground Below 1 V BM4-2 (LSP-) - Body ground Below 1 V
NG: REPAIR OR REPLACE FRONT SEAT WIRE LH
OK: REPAIR OR REPLACE NO. 1 FLOOR WIRE
