B1152/28: Passenger Airbag ON/OFF Indicator Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

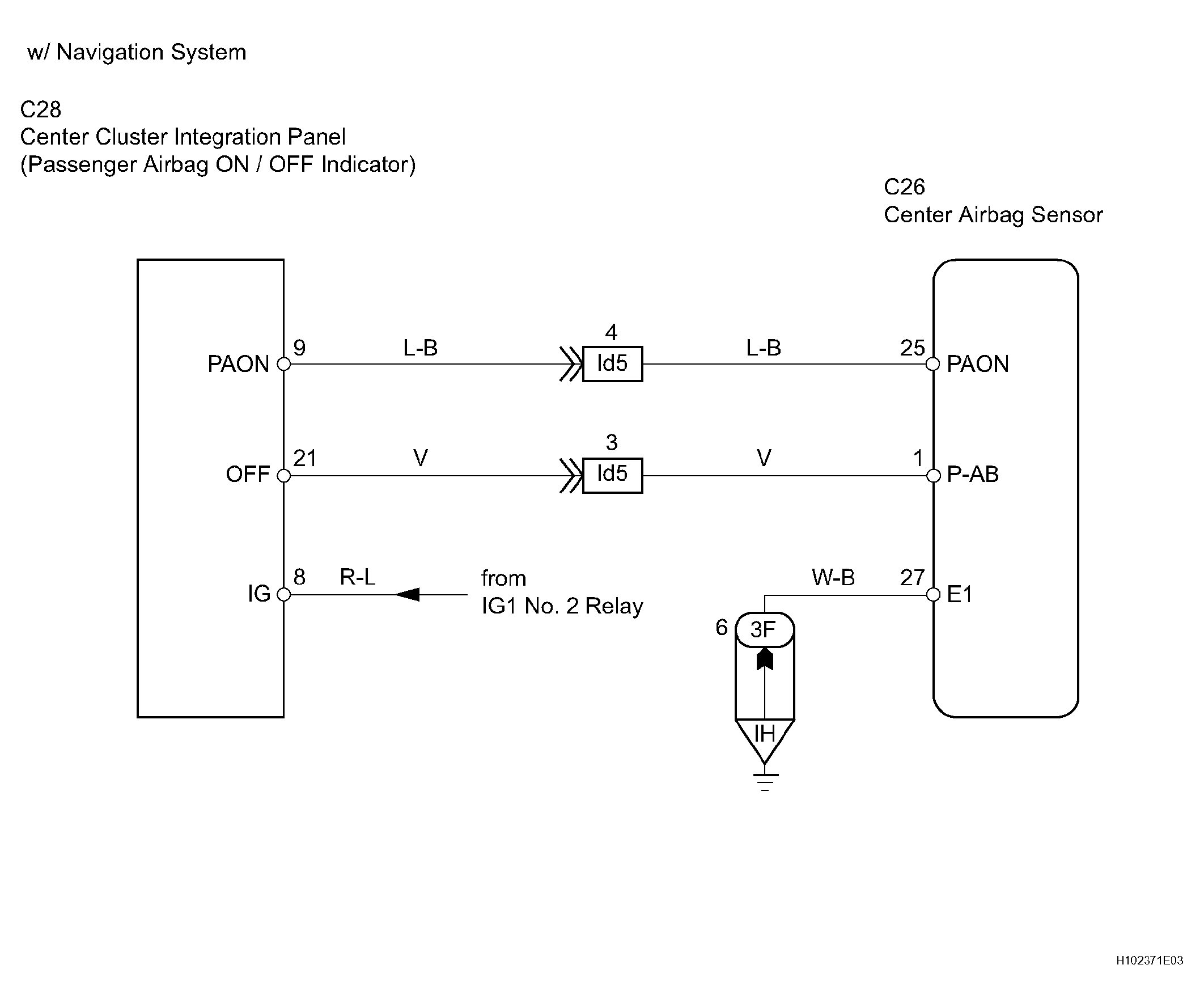

Fig 1: Passenger Airbag ON/OFF Indicator Circuit Malfunction - Wiring Diagram (1 Of 2)
G04438078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

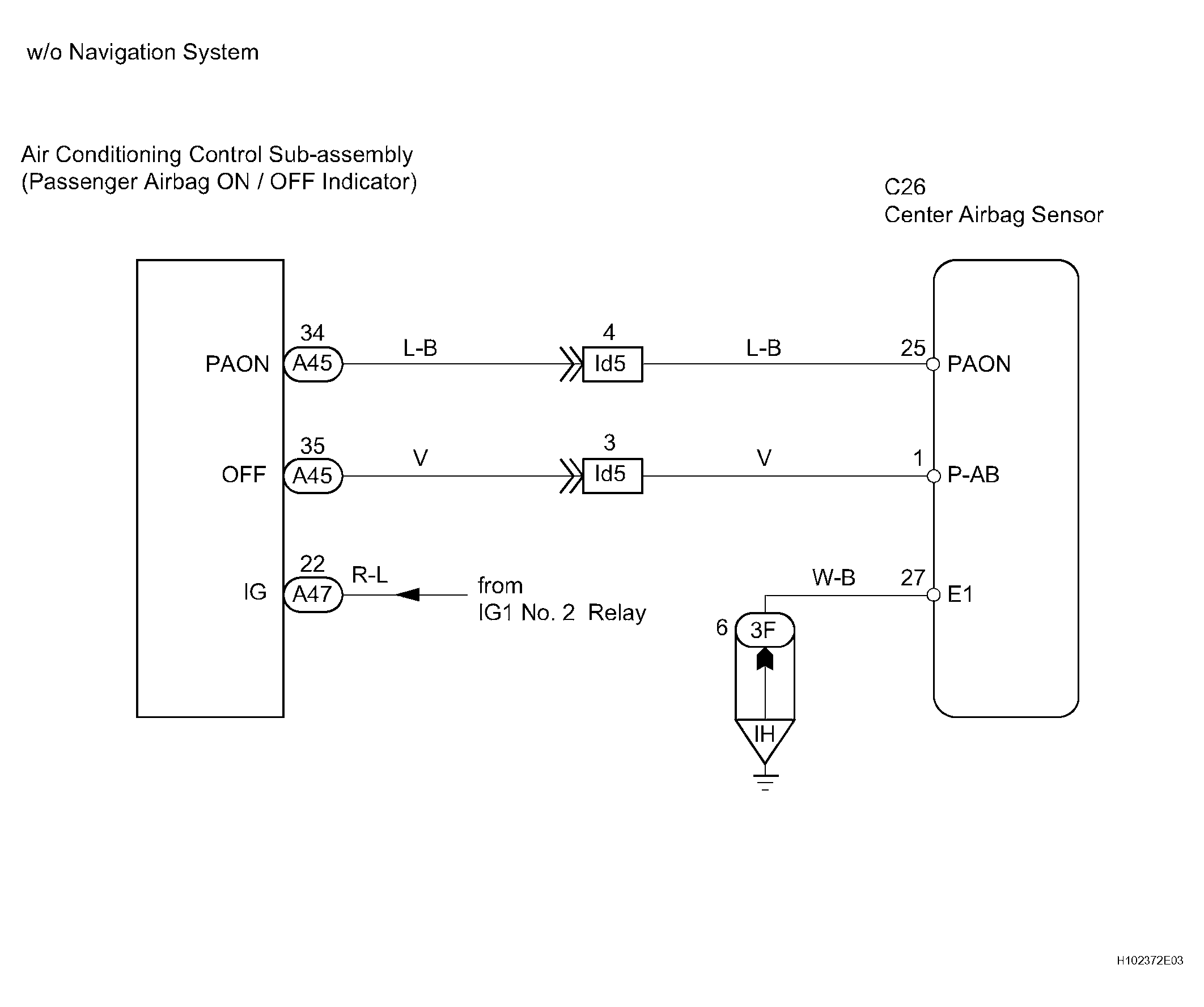

Fig 2: Passenger Airbag ON/OFF Indicator Circuit Malfunction - Wiring Diagram (2 Of 2)
G04438079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
